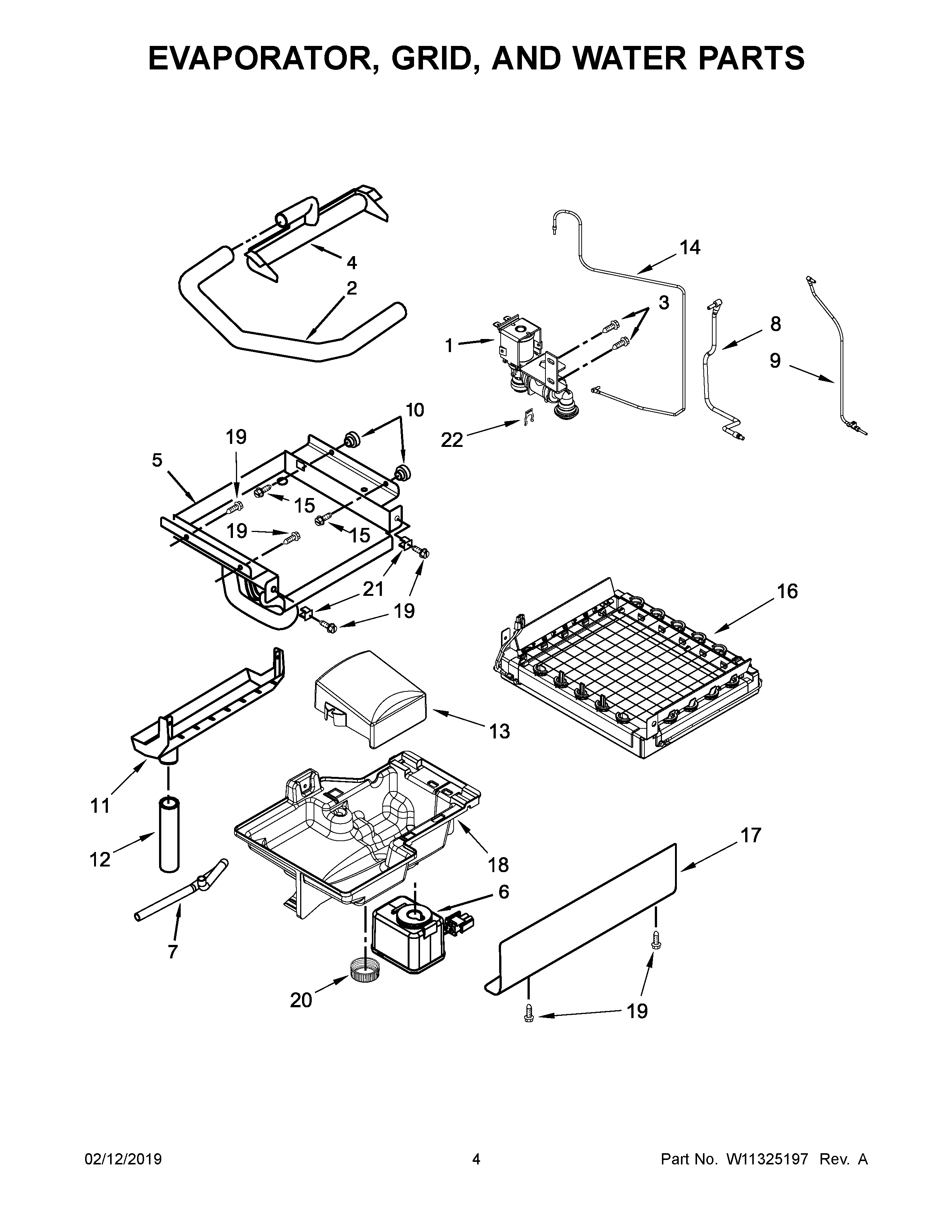

WUI75X15HW00 03 – EVAPORATOR, GRID, AND WATER PARTS

WUI75X15HW00 03 – EVAPORATOR, GRID, AND WATER PARTS

Written by

in

WUI75X15HW00 03 – EVAPORATOR, GRID, AND WATER PARTS

Products

PositionProduct
1WPW10217918 Whirlpool Refrigerator Inlet Valve
3WP488163 Whirlpool Refrigerator Screw
4W10863947 Whirlpool Refrigerator Tube
5WPW10218037 Whirlpool Refrigerator Evaporator
6PUMP
7W11097809 Whirlpool Refrigerator Tube
8WPW10678299 Whirlpool Refrigerator Tube
9W11257368 Whirlpool Refrigerator Tube
10836667 Whirlpool Refrigerator Spacer
11WP2185625 Whirlpool Refrigerator Water Pan
12W11033204 Whirlpool Refrigerator Hose
13W10512292 Whirlpool Refrigerator Cover
14WPW10678300 Whirlpool Refrigerator Tube
15WP3400886 Whirlpool Refrigerator Screw
16W10919199 Whirlpool Refrigerator Cutter Grid
17W10340986 Whirlpool Refrigerator Panel
18W11614100 Whirlpool Water Pan
19WP3400884 Whirlpool Refrigerator Screw
20W11023835 Whirlpool Refrigerator Drain Cap
21WP3400909 Whirlpool Refrigerator Nut
22W10782423 Whirlpool Refrigerator Ring
