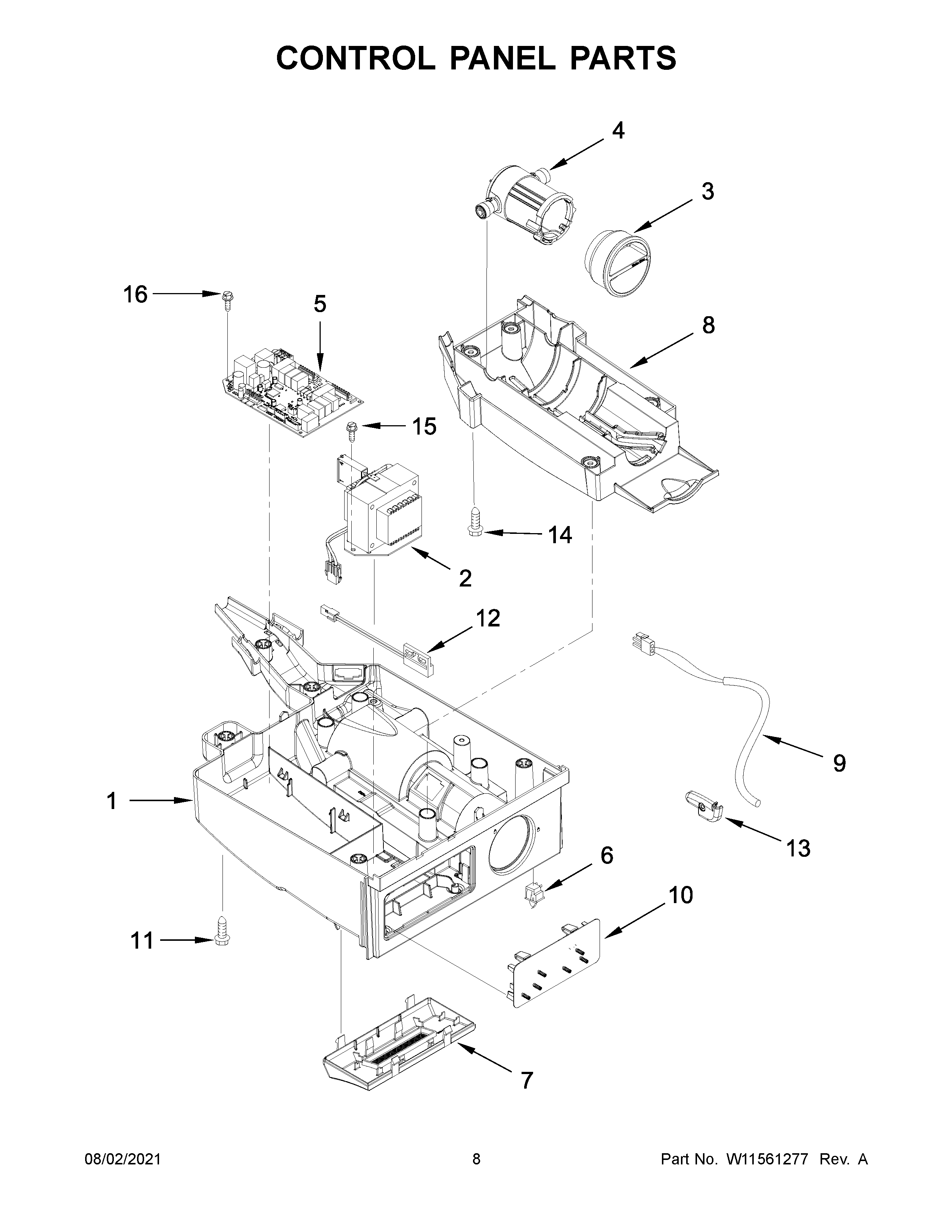

WUI75X15HZ01 05 – CONTROL PANEL PARTS

Products

Position	Product
1	W10477560 Whirlpool Refrigerator Control Box
2	TRANSFORMR
3	W10800356 Whirlpool Refrigerator Ice Machine Filter
4	W11266112 Whirlpool Refrigerator Housing
5	W11034363 Whirlpool Main Control Board + Core
6	W11291138 Whirlpool Refrigerator Door Switch
7	W10492487 Whirlpool Refrigerator Light
8	W10475416 Whirlpool Refrigerator Cover
9	THERMISTOR
10	W11357230 Whirlpool Refrigerator Electronic Control Board
11	WP489474 Whirlpool Refrigerator Screw
12	W11221357 Whirlpool Refrigerator Switch
13	W10526623 Whirlpool Refrigerator Clamp
14	WP9741232 Whirlpool Dishwasher Screw
15	W10165274 Whirlpool Dishwasher Screw
16	2006254 Whirlpool Refrigerator Screw
