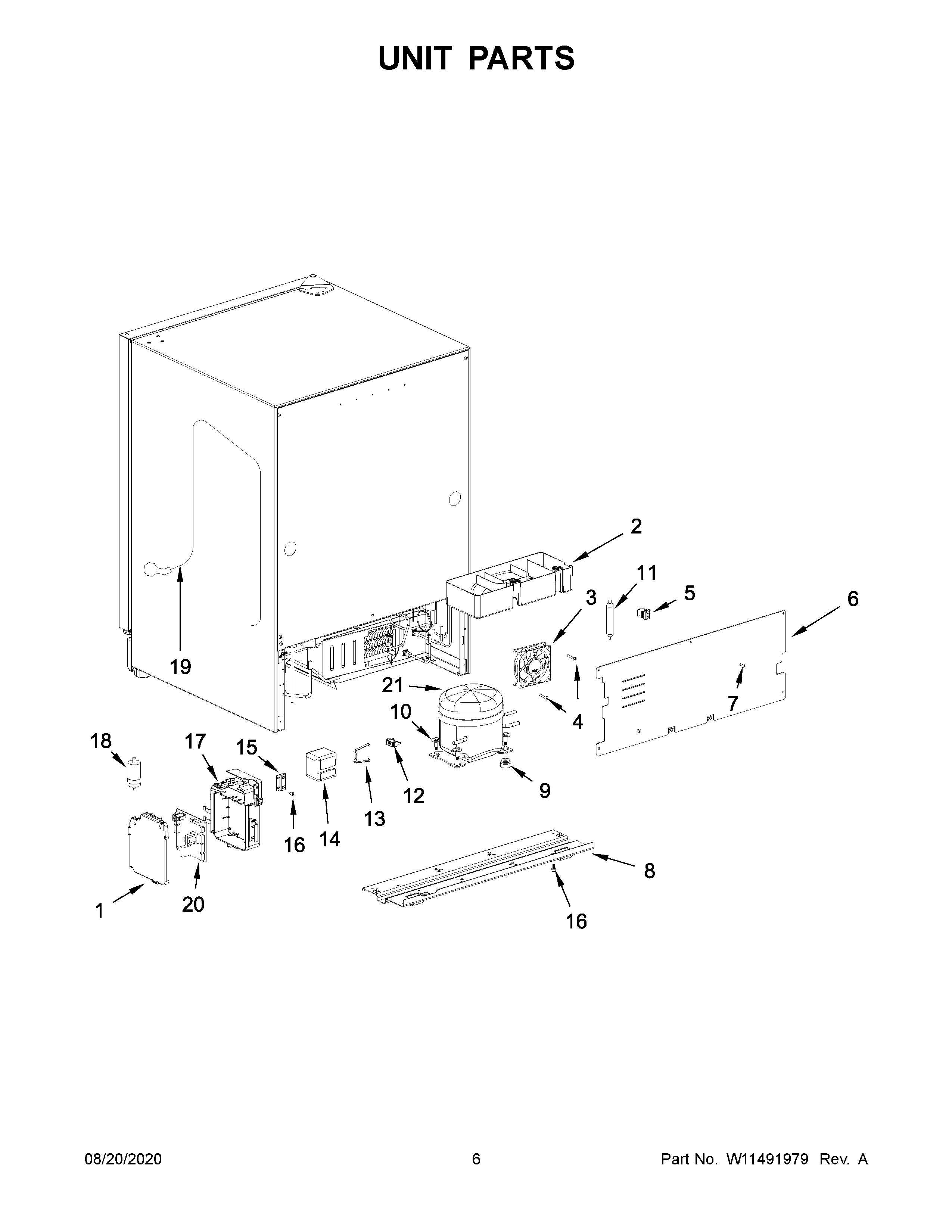

WUR35X24HZ00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11313206 Whirlpool Refrigerator Cover
2	PAN, DRAIN
3	W11266081 Whirlpool Refrigerator Evaporator Motor
4	SCREW
5	CLAMP
6	COVER, REAR
7	W11371097 Whirlpool Screw
8	CABINET BASE PLATE
9	WP4344779 Whirlpool Refrigerator Grommet
10	W10772873 Whirlpool Screw
11	W10163273 Whirlpool Refrigerator Tube
12	W10778965 Whirlpool Refrigerator Overload Relay
13	CLIP, RELAY COVER
14	COVER, RELAY
15	CLAMP, CORD
16	SCREW
17	PCB BOX
18	W10778969 Whirlpool Refrigerator Capacitor
19	W11265410 Whirlpool Power Cord
20	W11266080-includeCORE Whirlpool W11266080 Refrigerator Electronic Control Board + Core
21	8201787 Whirlpool Refrigerator Compressor
