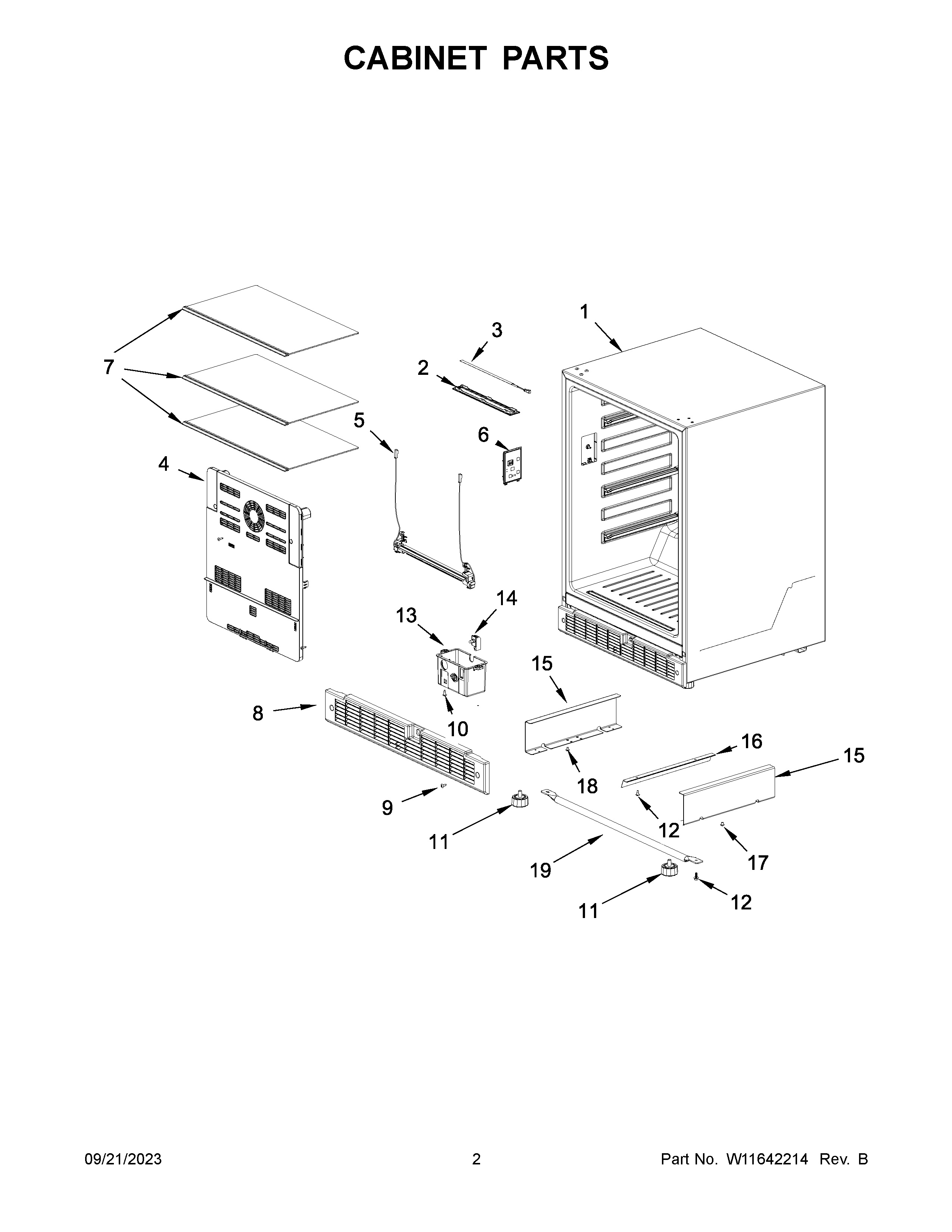

WUR35X24HZ03 02 – CABINET PARTS

Products

Position	Product
1	CABINET (NOT A SERVICE PART)
2	W11312450 Whirlpool Light Lens
3	COVER-EVAP
5	W11312455 Whirlpool Evaporator Cover
6	ASSEMBLY, CONTROL
7	W11266373 Whirlpool Glass Shelf
8	W11265404 Whirlpool Heater
9	W11675284 Whirlpool Screw
10	W11371097 Whirlpool Screw
11	W11106296 Whirlpool Refrigerator Leveler
12	SCREW
13	W11476540 Whirlpool Cover
14	W11266082 Whirlpool Switch Assembly
15	SUPPORT, SIDE
16	SEAL, CONDENSER
17	SCREW
18	SCREW
19	BRACE
