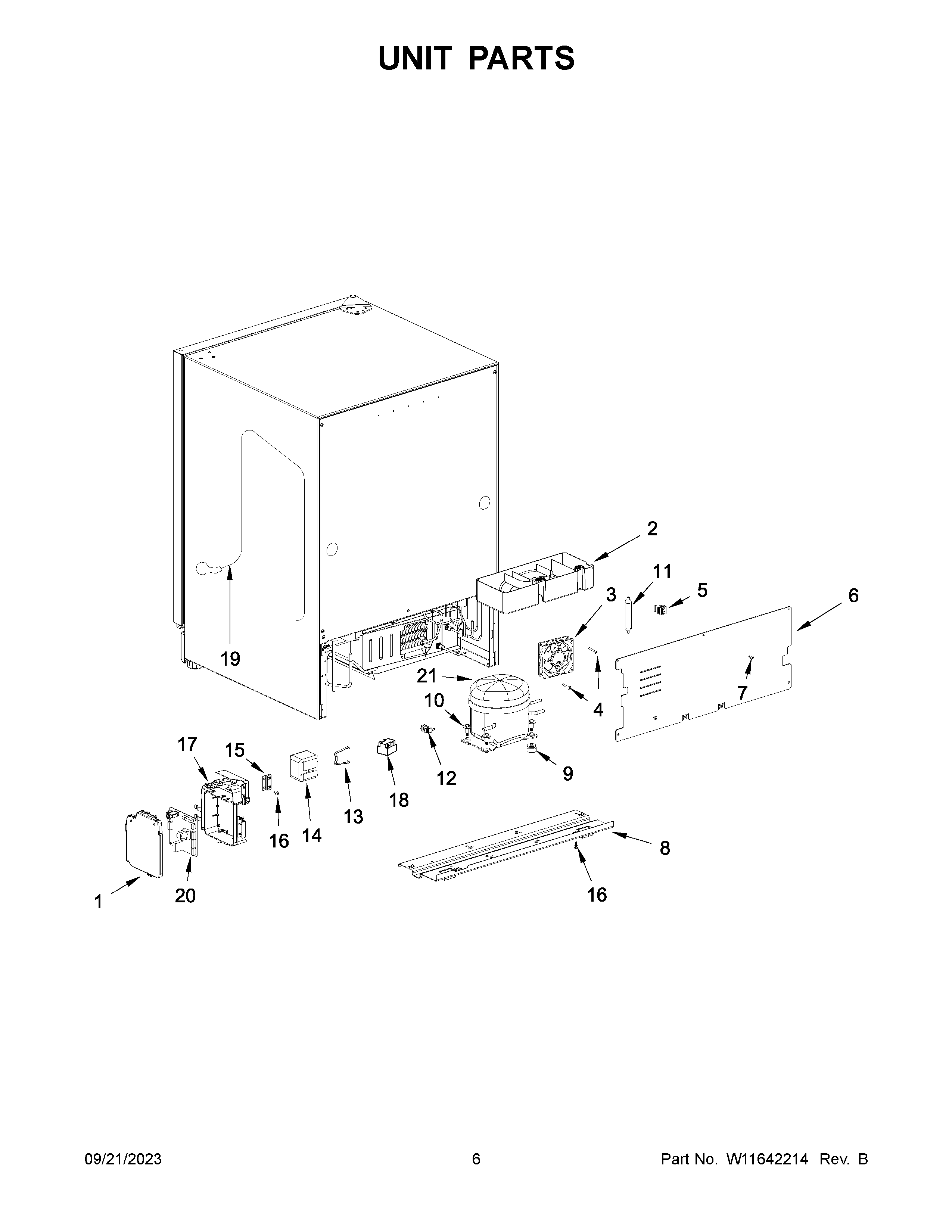

WUR35X24HZ03 04 – UNIT PARTS

Products

Position	Product
NI	COMPRESSOR REPLACEMENT SERVICE KIT
NI	FOLLOWING PART NOT ILLUSTRATED:
NI	REFRIGERANT CHARGE 4.5 OZ. (R-134A)
1	W11313206 Whirlpool Refrigerator Cover
2	PAN, DRAIN
3	W11266081 Whirlpool Refrigerator Evaporator Motor
4	SCREW
5	CLAMP
6	COVER, REAR
7	W11371097 Whirlpool Screw
8	BRACE
9	WP4344779 Whirlpool Refrigerator Grommet
10	W10772873 Whirlpool Screw
11	W10163273 Whirlpool Refrigerator Tube
12	OVERLOAD
13	W11498144 Whirlpool Retainer
14	COVER, RELAY
15	CLAMP, CORD
16	SCREW
17	PCB BOX
18	W11596023 Whirlpool Start Device
19	W11618463 Whirlpool Power Cord
20	W11649782-includeCORE Whirlpool W11649782 Washer Electronic Control Board + Core
21	COMPRESSOR
