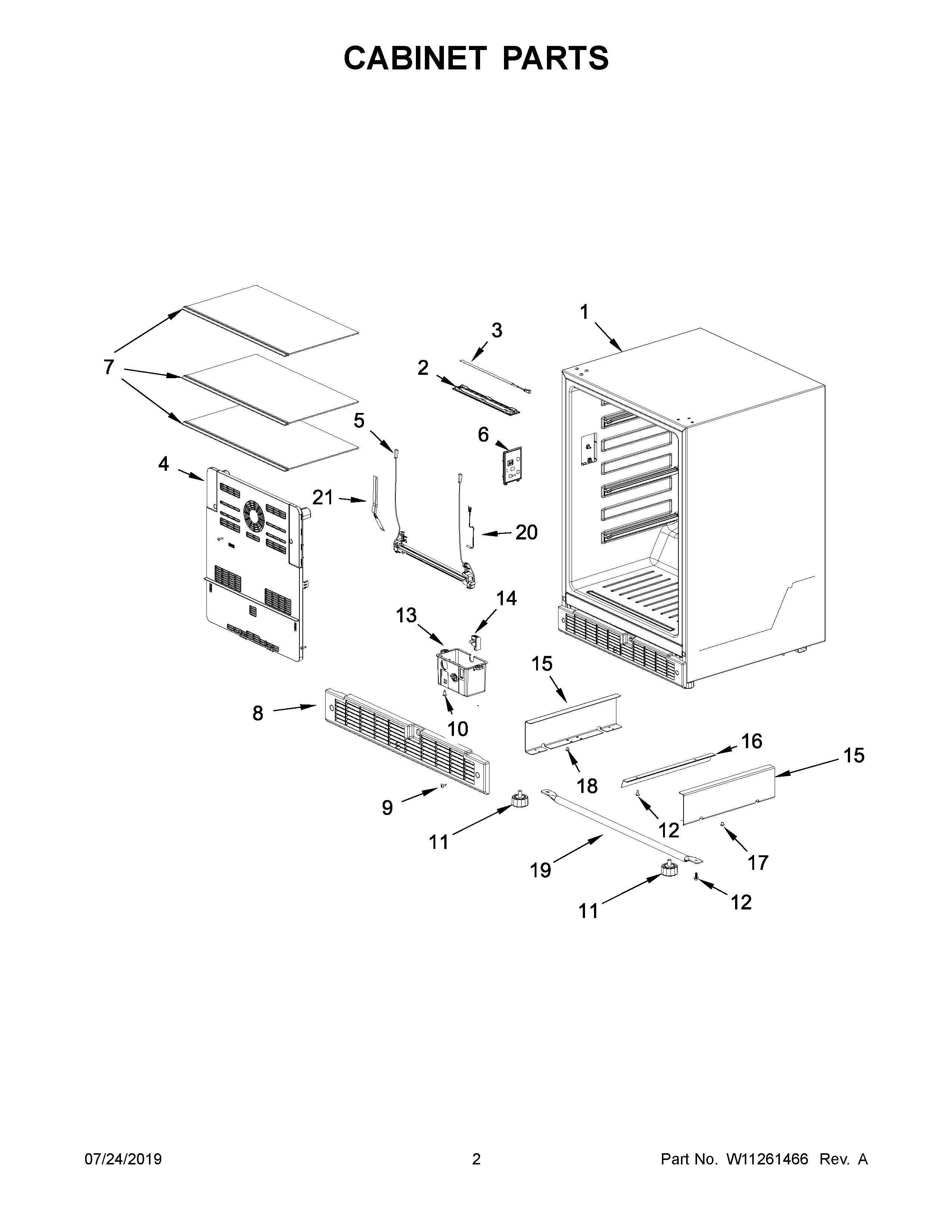

WUR50X24HZ0 02 – CABINET PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11312450 Whirlpool Light Lens
3	W11263841 Whirlpool Light Bulb
4	W11371018 Whirlpool Evaporator Cover
5	W11265404 Whirlpool Heater
6	ASSEMBLY, CONTROL
7	W11266373 Whirlpool Glass Shelf
8	W11700300 Whirlpool Refrigerator Grille
9	W11675284 Whirlpool Screw
10	W11371097 Whirlpool Screw
11	W11106296 Whirlpool Refrigerator Leveler
12	SCREW
13	W11476540 Whirlpool Cover
14	W11266082 Whirlpool Switch Assembly
15	SUPPORT, SIDE
16	SEAL, CONDENSER
17	SCREW
18	SCREW
19	BRACE
20	W11266076 Whirlpool Thermistor
21	W11359415 Whirlpool Bi-metal Defrost
