WUR50X24HZ0 03 – DOOR PARTS

WUR50X24HZ0 03 – DOOR PARTS

Written by

in

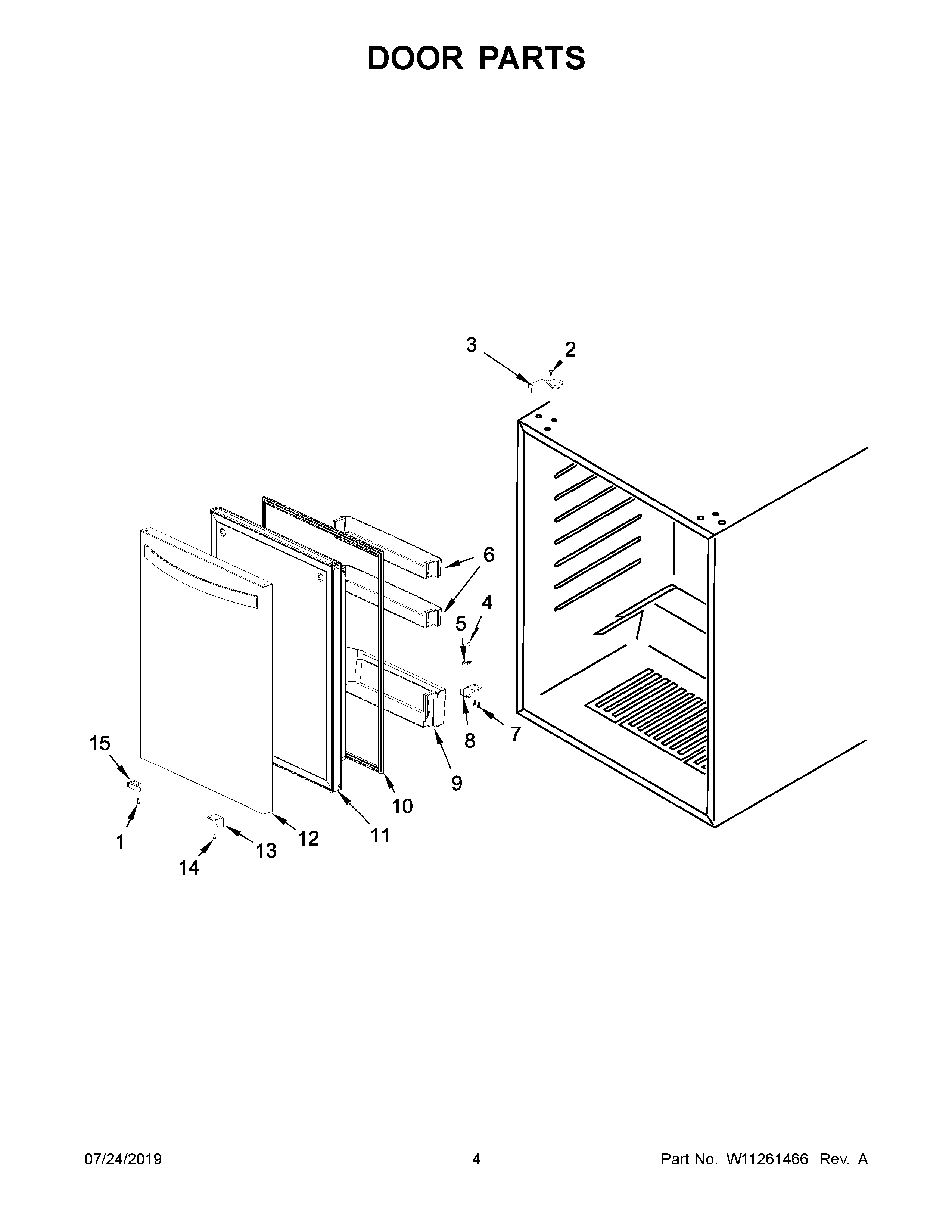

WUR50X24HZ0 03 – DOOR PARTS

Products

PositionProduct
1SCREW
24344796 Whirlpool Refrigerator Screw
3W11264668 Whirlpool Door Hinge
4W11371338 Whirlpool Screw
5W11265406 Whirlpool Washer
6DOOR BIN, MIDDLE
7SCREW
8W11312624 Whirlpool Door Hinge Assembly
9W10319175 Whirlpool Bin Controller
10DOOR GASKET
11DOOR ASSEMBLY
12WRAP, DOOR (STAINLESS)
13W11264669 Whirlpool Bracket
14W11371097 Whirlpool Screw
15W11264678 Whirlpool Bracket
