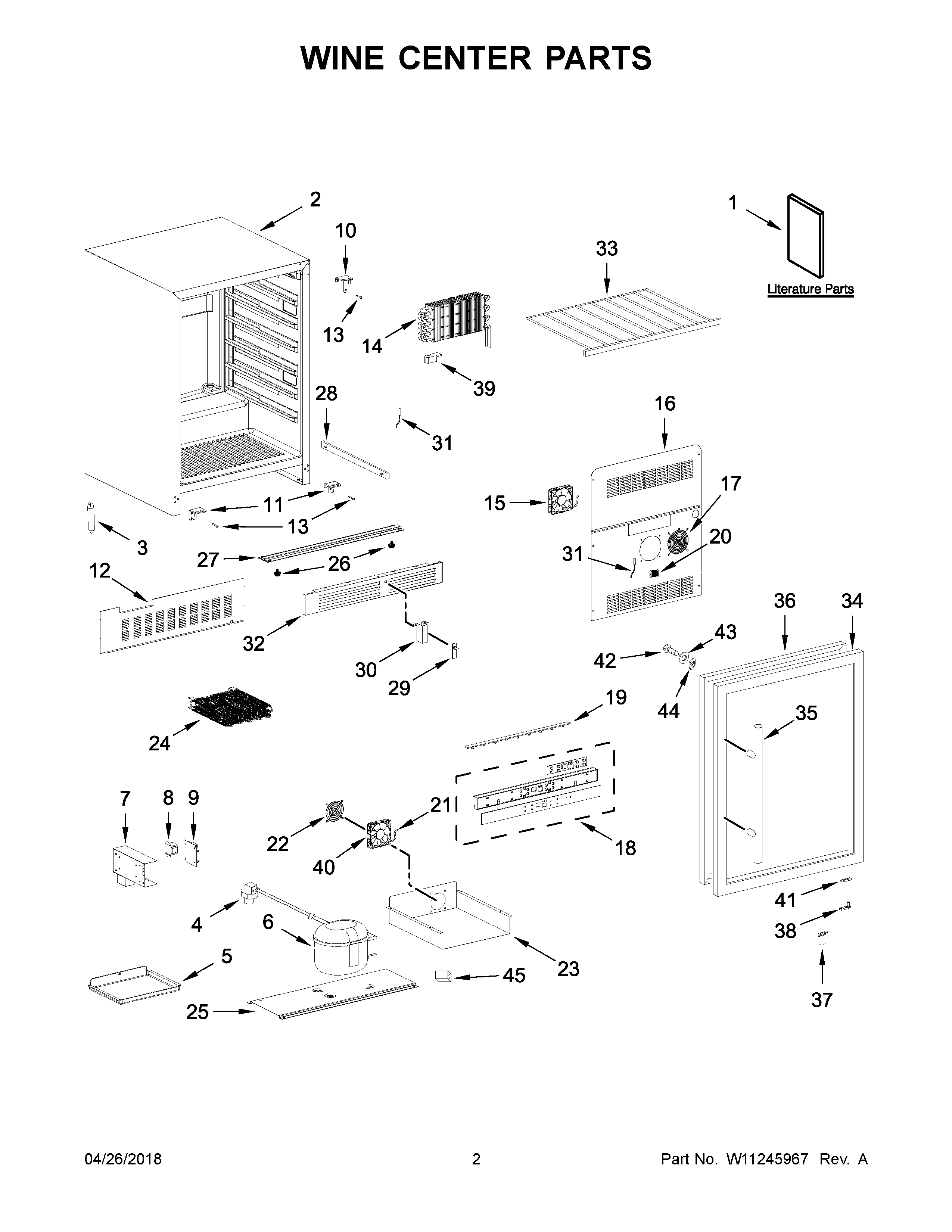

WUW35X24DS01 02 – WINE CENTER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10782192 Whirlpool Refrigerator Pin Dowel
NIW10782186 Whirlpool Refrigerator Overload
NIW10782184 Whirlpool Refrigerator Start Device
NIW10266810 Whirlpool Refrigerator Repair Kit
1AENERGY GUIDE
1USE & CARE GUIDE
3W10782175 Whirlpool Refrigerator Dryer Tube
4W10782176 Whirlpool Refrigerator Power Cord
5WATER TRAY
6W11377390 Whirlpool Refrigerator Compressor
7COVER, PCB
8W10782189 Whirlpool Refrigerator Inverter Box
9W11484599-includeCORE Whirlpool W11484599 Refrigerator Electronic Control Board + Core
10W10782193 Whirlpool Refrigerator Door Hinge
10AW10782260 Whirlpool Refrigerator Door Hinge
11W11243790 Whirlpool Refrigerator Door Hinge
11AW11243796 Whirlpool Refrigerator Door Hinge
12W11255346 Whirlpool Refrigerator Back Cover
13W10782261 Whirlpool Refrigerator Screw
14W10782196 Whirlpool Refrigerator Evaporator
15W10792631 Whirlpool Refrigerator Fan
16COVER, FAN
17COVER, EVAPORATOR FAN
18W10792636 Whirlpool Refrigerator Display
19LED LIGHT
20COVER, SENSOR
21W10782291 Whirlpool Refrigerator Wire Harness
22W10782255 Whirlpool Refrigerator Air Cover
23COVER, CONDENSER
24CONDENSER
25BASEPLATE
26W10782249 Whirlpool Refrigerator Leveler
27W11255162 Whirlpool Refrigerator Brace
28W10782256 Whirlpool Refrigerator Rail
29W10782243 Whirlpool Refrigerator Switch
30W10782242 Whirlpool Refrigerator Bracket
31W10782220 Whirlpool Refrigerator Thermistor
32GRILLE
33RACK ASSEMBLY
34W10782265 Whirlpool Refrigerator Door
35W10782266 Whirlpool Refrigerator Handle
36W10782239 Whirlpool Refrigerator Gasket
37W10782267 Whirlpool Refrigerator Bracket
38W10782241 Whirlpool Refrigerator Closer
39FOAM
40W11678274 Whirlpool Fan Assembly
41W11255595 Whirlpool Refrigerator Door Stop
42W11104118 Whirlpool Refrigerator Screw
43SPRING, WASHER
44WASHER
45FOAM
