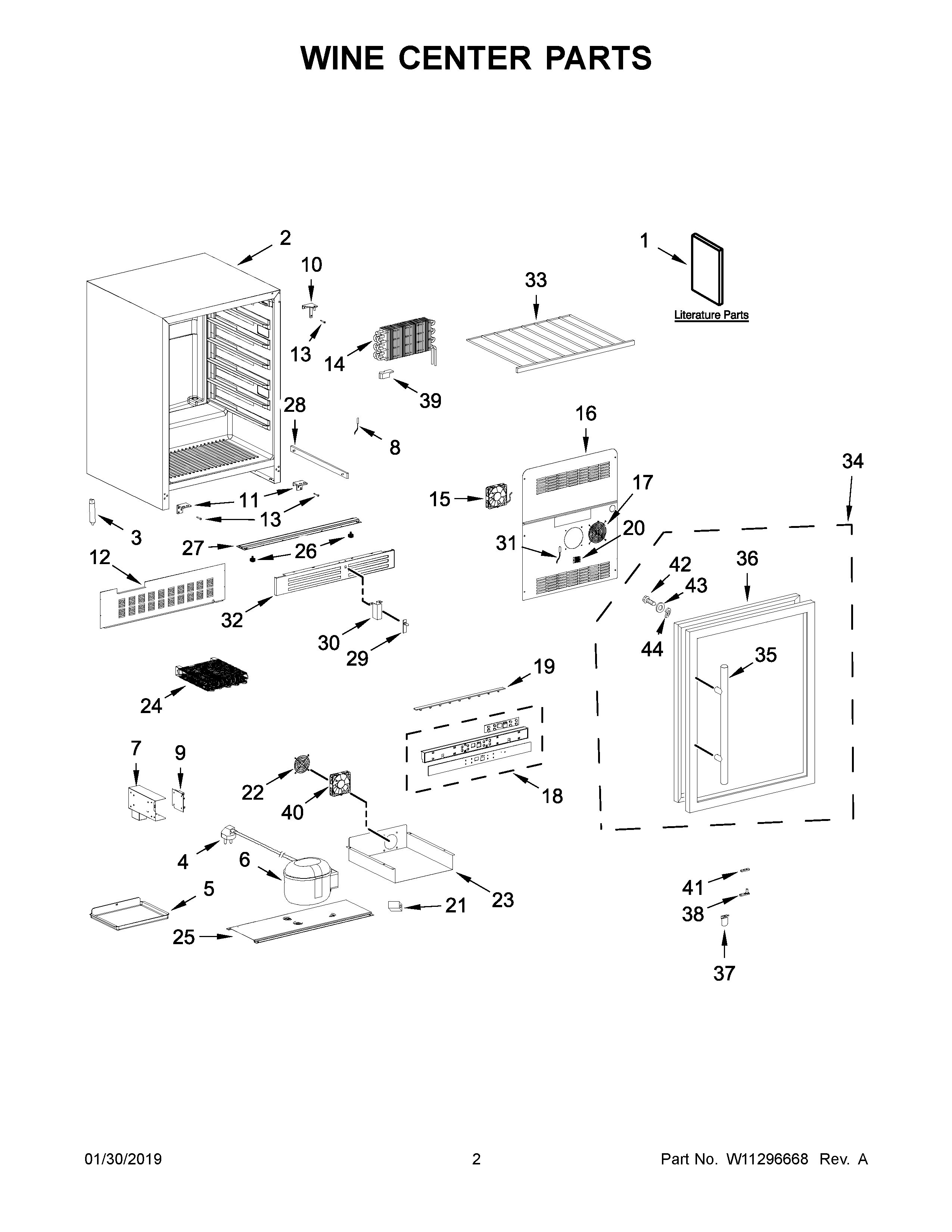

WUW35X24DS02 02 – WINE CENTER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1AENERGY GUIDE
1USE & CARE GUIDE
3W11290639 Whirlpool Refrigerator Dryer Tube
4W10782176 Whirlpool Refrigerator Power Cord
5W11290643 Whirlpool Refrigerator Drip Pan
6W11297348 Whirlpool Refrigerator Compressor
7COVER, PCB
8W11290657 Whirlpool Refrigerator Thermistor
9W11298786 Whirlpool Refrigerator Electronic Control Board
10AW10782260 Whirlpool Refrigerator Door Hinge
10W10782193 Whirlpool Refrigerator Door Hinge
11W11243790 Whirlpool Refrigerator Door Hinge
11AW11243796 Whirlpool Refrigerator Door Hinge
12W11255346 Whirlpool Refrigerator Back Cover
13W10782261 Whirlpool Refrigerator Screw
14W10782196 Whirlpool Refrigerator Evaporator
15W10792631 Whirlpool Refrigerator Fan
16COVER, FAN
17COVER, EVAPORATOR FAN
18W11530280-includeCORE Whirlpool W11530280 Refrigerator UI Panel
19LED LIGHT
20COVER, SENSOR
21FOAM
22W10782255 Whirlpool Refrigerator Air Cover
23COVER, CONDENSER
24CONDENSER
25BASEPLATE
26W10782249 Whirlpool Refrigerator Leveler
27W11255162 Whirlpool Refrigerator Brace
28W10782256 Whirlpool Refrigerator Rail
29W10782243 Whirlpool Refrigerator Switch
30W10782242 Whirlpool Refrigerator Bracket
31W11296649 Whirlpool Refrigerator Thermistor
32GRILLE
33RACK ASSEMBLY
34W10782265 Whirlpool Refrigerator Door
35W10782266 Whirlpool Refrigerator Handle
36W10782239 Whirlpool Refrigerator Gasket
37W10782267 Whirlpool Refrigerator Bracket
38W10782241 Whirlpool Refrigerator Closer
39FOAM
40W11678274 Whirlpool Fan Assembly
41W11255595 Whirlpool Refrigerator Door Stop
42W11104118 Whirlpool Refrigerator Screw
43SPRING, WASHER
44WASHER
