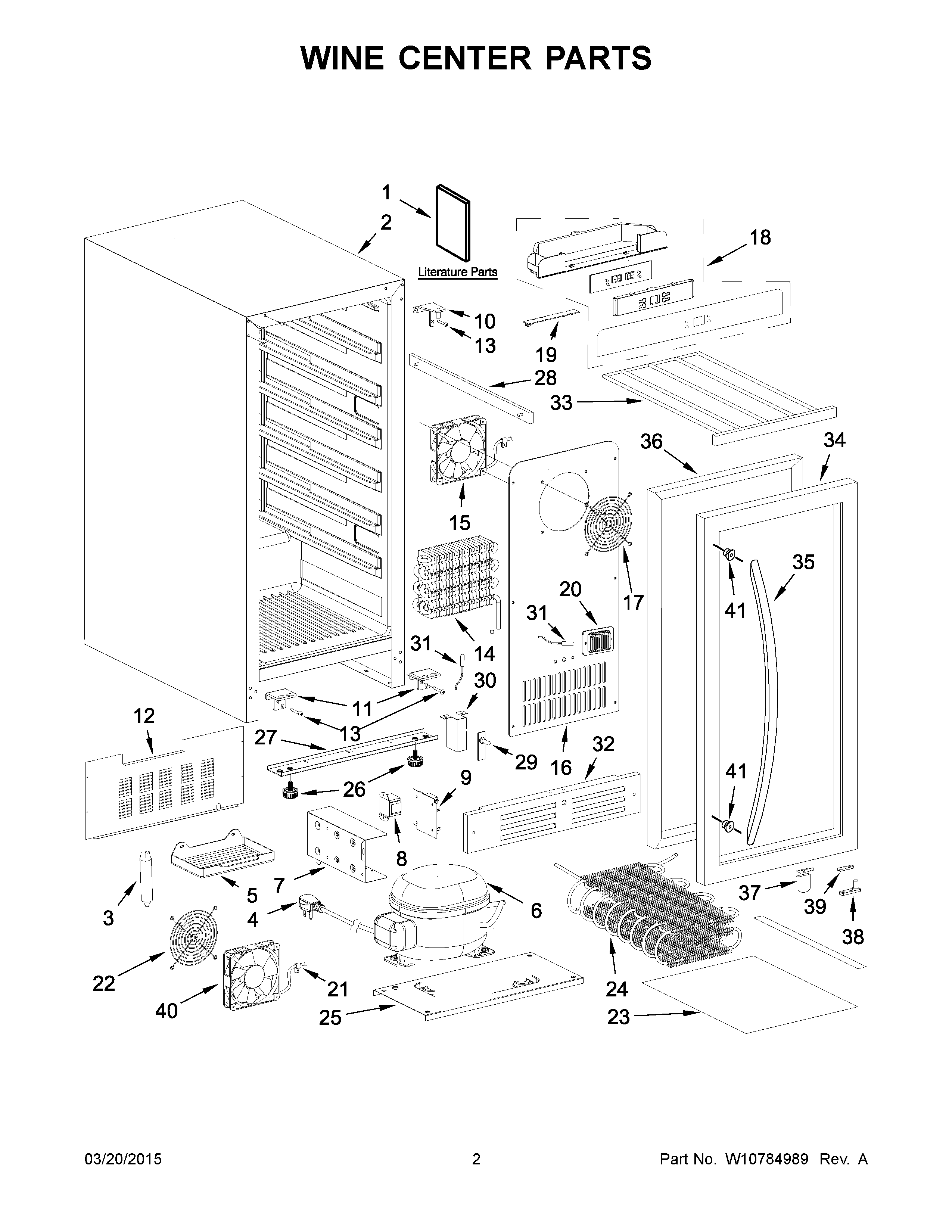

WUW55X15DS00 02 – WINE CENTER PARTS

WUW55X15DS00 02 – WINE CENTER PARTS

Written by

in

WUW55X15DS00 02 – WINE CENTER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10266810 Whirlpool Refrigerator Repair Kit
NIW10782192 Whirlpool Refrigerator Pin Dowel
NIW10782275 Whirlpool Refrigerator Start Device
NIW10782277 Whirlpool Refrigerator Overload Relay
1USE & CARE GUIDE
1AENERGY GUIDE
3W10782175 Whirlpool Refrigerator Dryer Tube
4W10782176 Whirlpool Refrigerator Power Cord
5W10782273 Whirlpool Refrigerator Drip Pan
6W11726397 Whirlpool Compressor
7COVER, PCB
8W10782189 Whirlpool Refrigerator Inverter Box
9WPW10782279 Whirlpool Electronic Control Board
10AW10782260 Whirlpool Refrigerator Door Hinge
10W10782193 Whirlpool Refrigerator Door Hinge
11AHINGE, LOWER LEFT
11HINGE, LOWER RIGHT
12COVER, REAR
13W10782261 Whirlpool Refrigerator Screw
14W10782280 Whirlpool Refrigerator Evaporator
15W10792631 Whirlpool Refrigerator Fan
16EVAPORATOR COVER
17COVER, EVAPORATOR FAN
18W10792639 Whirlpool Refrigerator Display
19LED LIGHT
20COVER, SENSOR
21W10782291 Whirlpool Refrigerator Wire Harness
22W10782255 Whirlpool Refrigerator Air Cover
23COVER, CONDENSER
24W10782289 Whirlpool Refrigerator Condenser Assembly
25W10782290 Whirlpool Refrigerator Base Unit
26W10782249 Whirlpool Refrigerator Leveler
27SUPPORT, FRONT
28W10782256 Whirlpool Refrigerator Rail
29W10782243 Whirlpool Refrigerator Switch
30W10782242 Whirlpool Refrigerator Bracket
31W10782220 Whirlpool Refrigerator Thermistor
32W10782287 Whirlpool Grille
33RACK ASSEMBLY
34DOOR ASSEMBLY
35W10782240 Whirlpool Refrigerator Handle
36W10782286 Whirlpool Refrigerator Gasket
37W10782244 Whirlpool Refrigerator Bracket
38W10782241 Whirlpool Refrigerator Closer
39W10792634 Whirlpool Refrigerator Door Stop
40W11678274 Whirlpool Fan Assembly
41STUD, HANDLE
