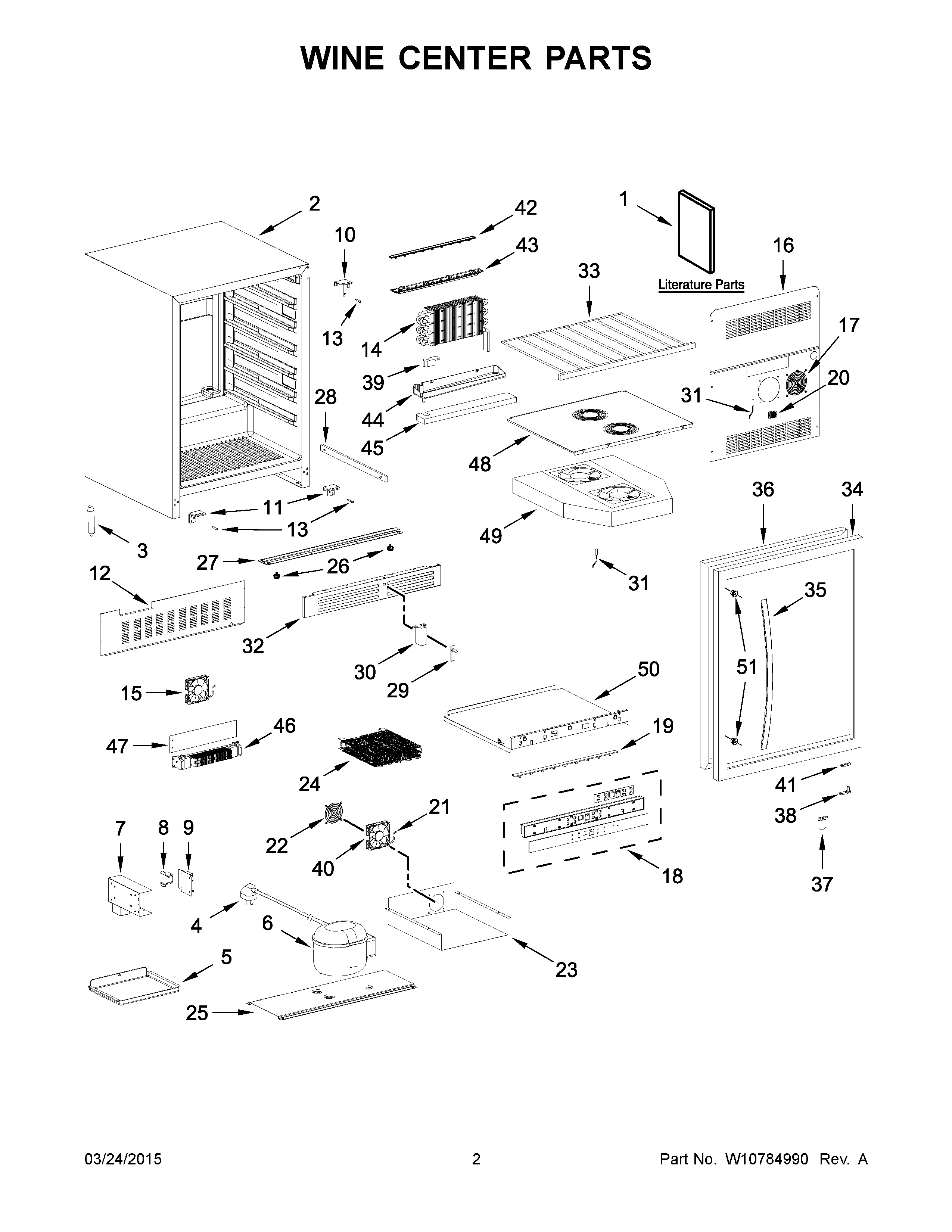

WUW55X24DS00 02 – WINE CENTER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10266810 Whirlpool Refrigerator Repair Kit
NICAPACITOR
NIW10782192 Whirlpool Refrigerator Pin Dowel
NIW10782186 Whirlpool Refrigerator Overload
NIW10782184 Whirlpool Refrigerator Start Device
1AENERGY GUIDE
1USE & CARE GUIDE
3W10782175 Whirlpool Refrigerator Dryer Tube
4W10782176 Whirlpool Refrigerator Power Cord
5WATER TRAY
6W11377390 Whirlpool Refrigerator Compressor
7COVER, PCB
8W10782189 Whirlpool Refrigerator Inverter Box
9WPW10782191 Whirlpool Refrigerator Electronic Control Board
10W10782193 Whirlpool Refrigerator Door Hinge
10AW10782260 Whirlpool Refrigerator Door Hinge
11HINGE, LOWER RIGHT
11AHINGE, LOWER LEFT
12COVER, REAR
13W10782261 Whirlpool Refrigerator Screw
14W10782196 Whirlpool Refrigerator Evaporator
15W10782230 Whirlpool Refrigerator Evaporator Motor
16COVER, FAN
17GRILLE, FAN
18W10792641 Whirlpool Refrigerator Display
19LED LIGHT
20COVER, SENSOR
21W10782291 Whirlpool Refrigerator Wire Harness
22W10782255 Whirlpool Refrigerator Air Cover
23COVER, CONDENSER
24CONDENSER
25BASEPLATE
26W10782249 Whirlpool Refrigerator Leveler
27SUPPORT, FRONT
28W10782256 Whirlpool Refrigerator Rail
29W10782243 Whirlpool Refrigerator Switch
30W10782242 Whirlpool Refrigerator Bracket
31W10782220 Whirlpool Refrigerator Thermistor
32W10782245 Whirlpool Refrigerator Grille
33W10792643 Whirlpool Refrigerator Wine Shelf
34W10782238 Whirlpool Refrigerator Door
35W10782240 Whirlpool Refrigerator Handle
36W10782239 Whirlpool Refrigerator Gasket
37W10782244 Whirlpool Refrigerator Bracket
38W10782241 Whirlpool Refrigerator Closer
39FOAM
40W11678274 Whirlpool Fan Assembly
41W10792634 Whirlpool Refrigerator Door Stop
42LED LIGHT
43COVER, LIGHT
44W10782225 Whirlpool Refrigerator Drip Pan
45FOAM
46W10782227 Whirlpool Refrigerator Heater
47PLATE, HEATER
48AIR DUCT B
49W10792631 Whirlpool Refrigerator Fan
50AIR DUCT C
51STUD, HANDLE
