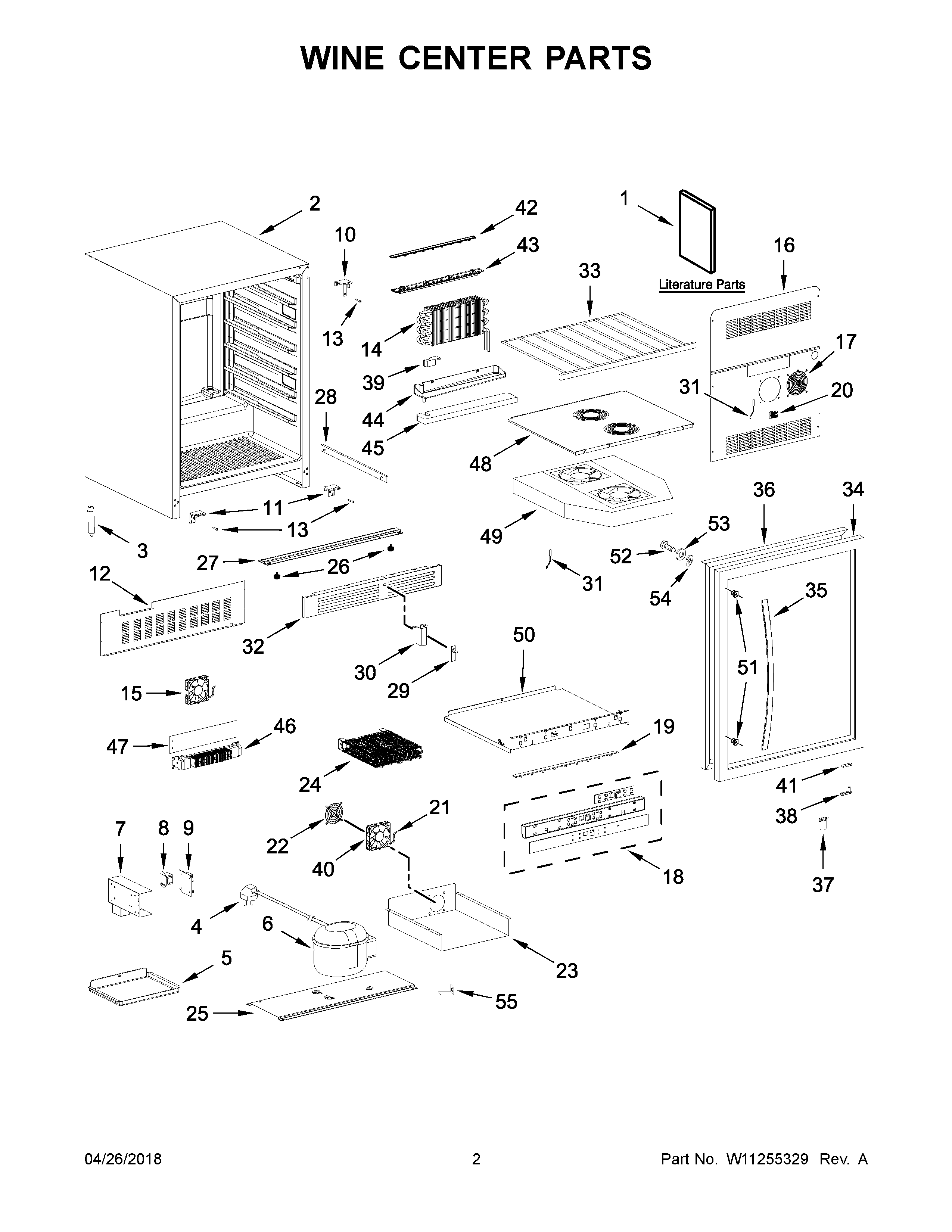

WUW55X24DS01 02 – WINE CENTER PARTS

WUW55X24DS01 02 – WINE CENTER PARTS

Written by

in

WUW55X24DS01 02 – WINE CENTER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CAPACITOR
NI	W10782186 Whirlpool Refrigerator Overload
NI	W10782192 Whirlpool Refrigerator Pin Dowel
NI	W10266810 Whirlpool Refrigerator Repair Kit
NI	W10782184 Whirlpool Refrigerator Start Device
1A	ENERGY GUIDE
1	USE & CARE GUIDE
3	W10782175 Whirlpool Refrigerator Dryer Tube
4	W10782176 Whirlpool Refrigerator Power Cord
5	WATER TRAY
6	W11377390 Whirlpool Refrigerator Compressor
7	COVER, PCB
8	W10782189 Whirlpool Refrigerator Inverter Box
9	WPW10782191 Whirlpool Refrigerator Electronic Control Board
10A	W10782260 Whirlpool Refrigerator Door Hinge
10	W10782193 Whirlpool Refrigerator Door Hinge
11	W11255249 Whirlpool Refrigerator Door Hinge
11A	W11255250 Whirlpool Door Hinge
13	W10782261 Whirlpool Refrigerator Screw
14	W10782196 Whirlpool Refrigerator Evaporator
15	W10782230 Whirlpool Refrigerator Evaporator Motor
16	COVER, FAN
17	GRILLE, FAN
18	W10792641 Whirlpool Refrigerator Display
19	LED LIGHT
20	COVER, SENSOR
21	W10782291 Whirlpool Refrigerator Wire Harness
22	W10782255 Whirlpool Refrigerator Air Cover
23	COVER, CONDENSER
24	CONDENSER
25	W11255346 Whirlpool Refrigerator Back Cover
26	W10782249 Whirlpool Refrigerator Leveler
27	W11255162 Whirlpool Refrigerator Brace
28	W10782256 Whirlpool Refrigerator Rail
29	W10782243 Whirlpool Refrigerator Switch
30	W10782242 Whirlpool Refrigerator Bracket
31	W10782220 Whirlpool Refrigerator Thermistor
32	W11255338 Whirlpool Grille
33	RACK ASSEMBLY
34	W10782238 Whirlpool Refrigerator Door
35	W10782240 Whirlpool Refrigerator Handle
36	W10782239 Whirlpool Refrigerator Gasket
37	W10782244 Whirlpool Refrigerator Bracket
38	W10782241 Whirlpool Refrigerator Closer
39	FOAM
40	W11678274 Whirlpool Fan Assembly
41	W11255595 Whirlpool Refrigerator Door Stop
42	LED LIGHT
43	COVER, LIGHT
44	W10782225 Whirlpool Refrigerator Drip Pan
45	FOAM
46	W10782227 Whirlpool Refrigerator Heater
47	PLATE, HEATER
48	AIR DUCT B
49	W10792631 Whirlpool Refrigerator Fan
50	AIR DUCT C
51	STUD, HANDLE
52	W11104118 Whirlpool Refrigerator Screw
53	SPRING, WASHER
54	WASHER
55	FOAM
