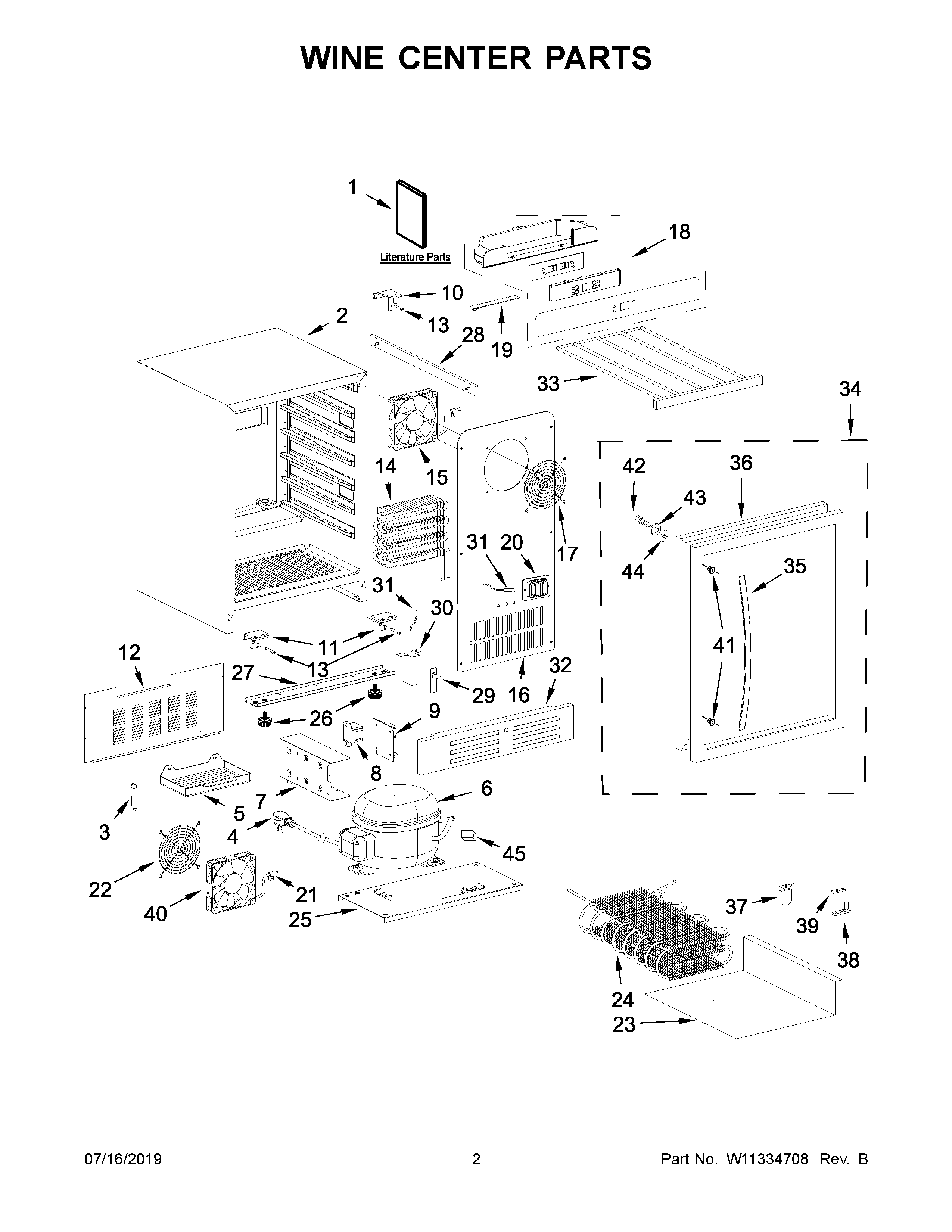

WUW55X24HS01 02 – WINE CENTER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIPROTECTOR
NIW11406131 Whirlpool Device Start
NIW10266810 Whirlpool Refrigerator Repair Kit
NIW10782192 Whirlpool Refrigerator Pin Dowel
1AENERGY GUIDE
1USE & CARE GUIDE
3W11290639 Whirlpool Refrigerator Dryer Tube
4W10782176 Whirlpool Refrigerator Power Cord
5W11290643 Whirlpool Refrigerator Drip Pan
6W11297348 Whirlpool Refrigerator Compressor
7COVER, PCB
8SENSOR (YELLOW CONNECTOR)
9W11407215 Whirlpool Refrigerator Electronic Control Board
10AW10782260 Whirlpool Refrigerator Door Hinge
10W10782193 Whirlpool Refrigerator Door Hinge
11W11255249 Whirlpool Refrigerator Door Hinge
11AW11255250 Whirlpool Door Hinge
13W10782261 Whirlpool Refrigerator Screw
14W10782196 Whirlpool Refrigerator Evaporator
15W10782230 Whirlpool Refrigerator Evaporator Motor
16COVER, FAN
17W11296649 Whirlpool Refrigerator Thermistor
18W11530276 Whirlpool Refrigerator UI Panel + Core
19LED LIGHT
20COVER, SENSOR
21WASHER
22W10782255 Whirlpool Refrigerator Air Cover
23COVER, CONDENSER
24CONDENSER
25W11255346 Whirlpool Refrigerator Back Cover
26W10782249 Whirlpool Refrigerator Leveler
27W11255162 Whirlpool Refrigerator Brace
28W10782256 Whirlpool Refrigerator Rail
29W10782243 Whirlpool Refrigerator Switch
30W10782242 Whirlpool Refrigerator Bracket
31W11290657 Whirlpool Refrigerator Thermistor
32W11255338 Whirlpool Grille
33RACK ASSEMBLY
34W11323327 Whirlpool Door
35W11685315 Whirlpool Handle
36W10782239 Whirlpool Refrigerator Gasket
37W10782244 Whirlpool Refrigerator Bracket
38W10782241 Whirlpool Refrigerator Closer
39W11255595 Whirlpool Refrigerator Door Stop
40W11678274 Whirlpool Fan Assembly
41STUD, HANDLE
42W11104118 Whirlpool Refrigerator Screw
43SPRING, WASHER
44FOAM
