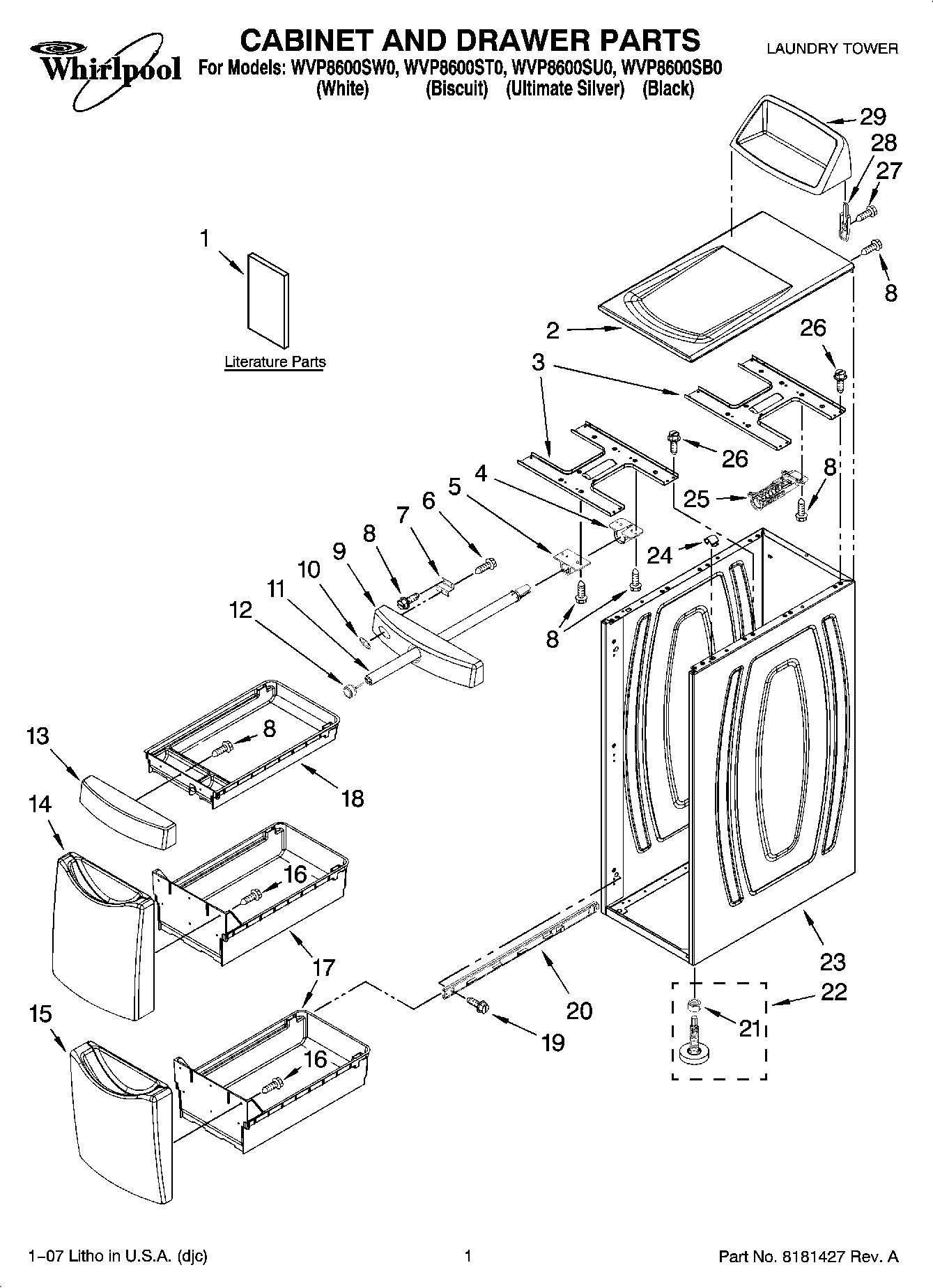

WVP8600SW0 01 – CABINET AND DRAWER PARTS

WVP8600SW0 01 – CABINET AND DRAWER PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
WPL 8212605
1Guide, Use & Care
2Top
2Top (Biscuit)
2Top (Ultimate Silver)
2Top (Black)
3Bracket, Top Support
4BUSHING-SLEEVE (STOP)
5Bushing, Sleeve Front
6Screw, 10-16 x 1/2
7Bracket, Pogo Front (2)
8W11693756 Whirlpool Screw Assembly
9Front, Pogo (Includes Illus. 10) (White)
9Front, Pogo (Includes Illus. 10) (Biscuit)
9Front, Pogo (Includes Illus. 10) (Ultimate Silver)
9Front, Pogo (Includes Illus. 10) (Black)
10Nameplate
11Pogo Bar Assembly
12END CAP
13Front, Organizer Drawer (Black)
13Front, Organizer Drawer (Biscuit)
13Front, Organizer Drawer (Ultimate Silver)
13Front, Organizer Drawer (White)
14Front, Middle Drawer (Ultimate Silver)
14Front, Middle Drawer (Black)
14Front, Middle Drawer (White)
14Front, Middle Drawer (Biscuit)
15Front, Bottom Drawer (White)
15Front, Bottom Drawer (Black)
15Front, Bottom Drawer (Biscuit)
15Front, Bottom Drawer (Ultimate Silver)
16WP3400806 Whirlpool Screw
17Drawer Bin, Large (2)
18Drawer Bin, (Small)
19WP9740848 Whirlpool Dishwasher Screw
20Slide, Assembly
21WP3359452 Whirlpool Nut
22WP8563585 Whirlpool Foot Assembly
23Cabinet (Not Serviceable)
24Clip, Top Lock
25HOUSING ASSEMBLY
26WP1163283 Whirlpool Air Conditioner Screw
27W10142289 Whirlpool Air Conditioner Screw
28Bracket, Console
29WPL W10070820
29WPL W10070550
29WPL W10070840
29WPL W10070830
