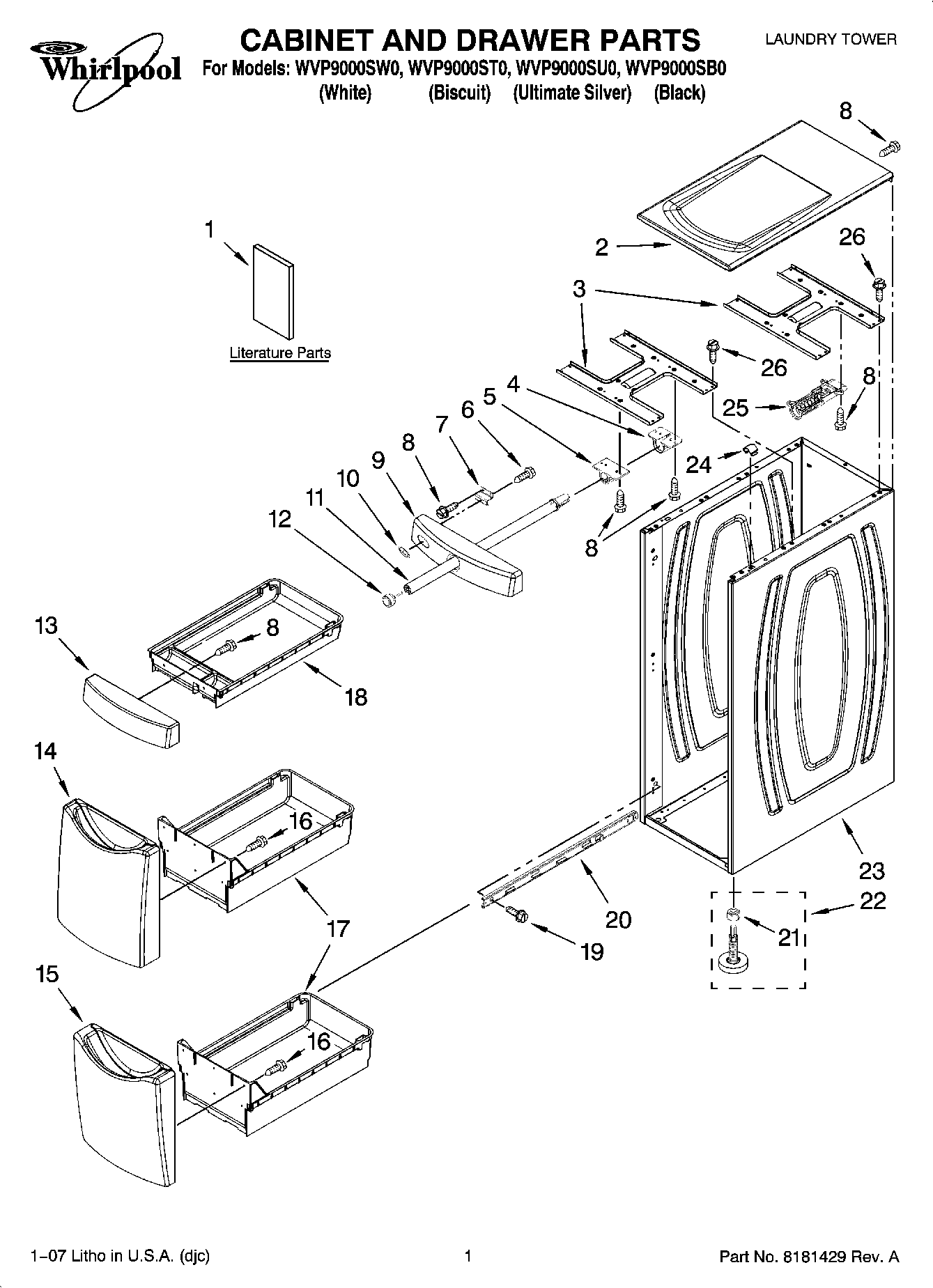

WVP9000ST0 01 – CABINET AND DRAWER PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	WPL 8212605
1	Guide, Use & Care
2	Top (Black)
2	Top (Biscuit)
2	Top (Ultimate Silver)
2	Top
3	Bracket, Top Support
4	BUSHING-SLEEVE (STOP)
5	Bushing, Sleeve Front
6	SCREW
7	Bracket, Pogo Front (2)
8	W11693756 Whirlpool Screw Assembly
9	Front, Pogo (Includes Illus. 10) (Black)
9	Front, Pogo (Includes Illus. 10) (Biscuit)
9	Front, Pogo (Includes Illus. 10) (Ultimate Silver)
9	Front, Pogo (Includes Illus. 10) (White)
10	Nameplate
11	Pogo Bar Assembly
12	END CAP
13	Front, Organizer Drawer (Ultimate Silver)
13	Front, Organizer Drawer (Biscuit)
13	Front, Organizer Drawer (White)
13	Front, Organizer Drawer (Black)
14	Front, Middle Drawer (White)
14	Front, Middle Drawer (Biscuit)
14	Front, Middle Drawer (Ultimate Silver)
14	Front, Middle Drawer (Black)
15	Front, Bottom Drawer (Ultimate Silver)
15	Front, Bottom Drawer (Biscuit)
15	Front, Bottom Drawer (Black)
15	Front, Bottom Drawer (White)
16	WP3400806 Whirlpool Screw
17	Drawer Bin, Large (2)
18	Drawer Bin, (Small)
19	WP9740848 Whirlpool Dishwasher Screw
20	Slide, Assembly
21	WP3359452 Whirlpool Nut
22	WP8563585 Whirlpool Foot Assembly
23	Cabinet (Not Serviceable)
24	Clip, Top Lock
25	HOUSING ASSEMBLY
26	WPL ARI136036A
26	WP1163283 Whirlpool Air Conditioner Screw
