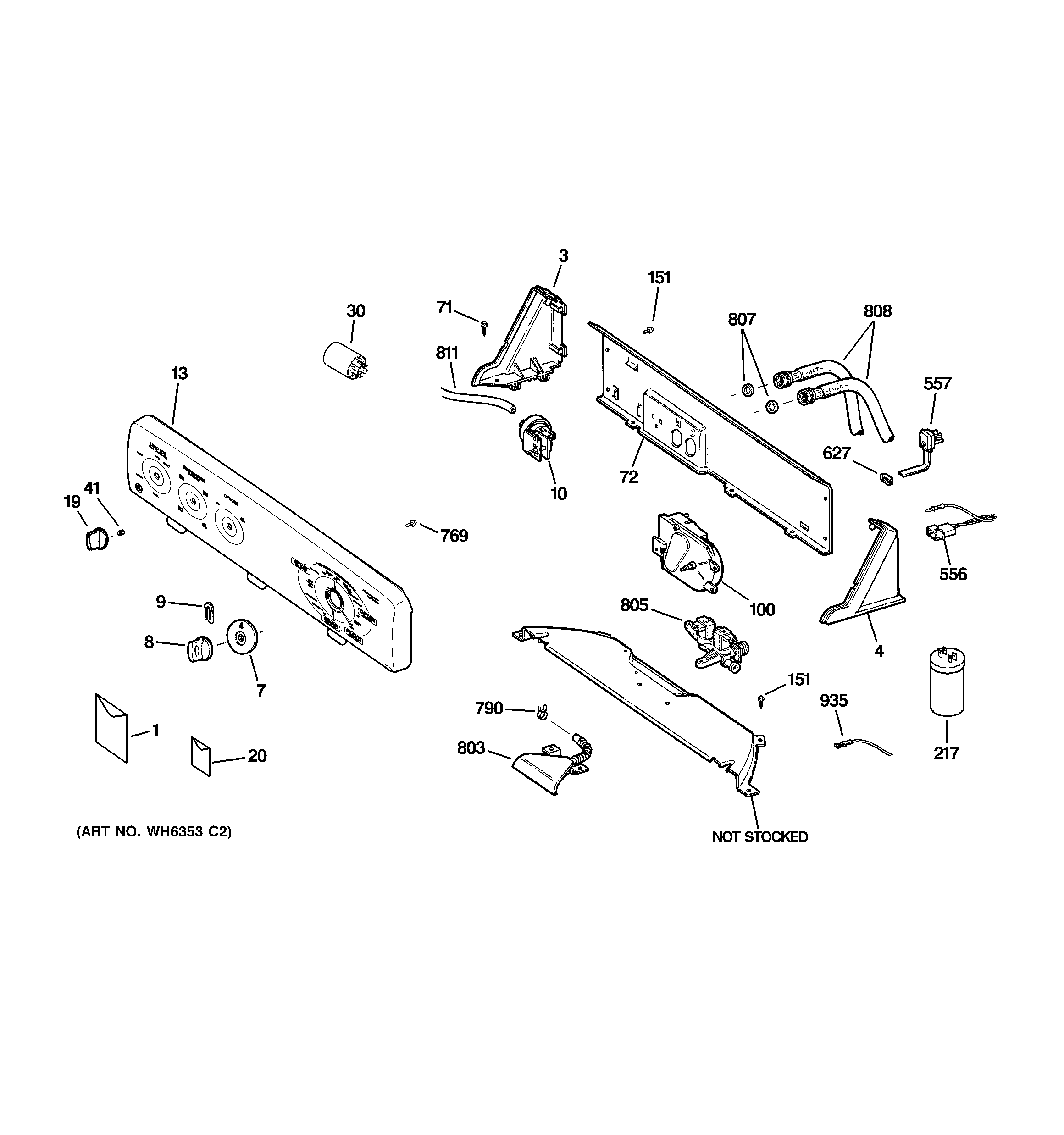

WVSR1060G0WW CONTROLS & BACKSPLASH

WVSR1060G0WW CONTROLS & BACKSPLASH

Written by

in

WVSR1060G0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-16531
1PM MANUAL USE & CARE
1GEN 31-15441
3WH42X22575 GE Left Hand Endcap Washer
4WH42X22576 GE Washer Right Hand Endcap
7WH11X10049 GE Washer Control Timer Dial
8WH01X10310 GE Washer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10065 GE Washer Water Level Pressure Switch
13GEN WH42X10645
19WE01X20378 GE Washer Control Knob
20GEN WH49X10041
30WH12X10408 GE Power Line Filter
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10146
100WH12X10337 GE Timer
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
217WH12X10462 GE Washer Capacitor
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
769WR01X10196 GE Refrigerator Screw 8-18 HID02
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X10026 GE Water Valve Triple
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
