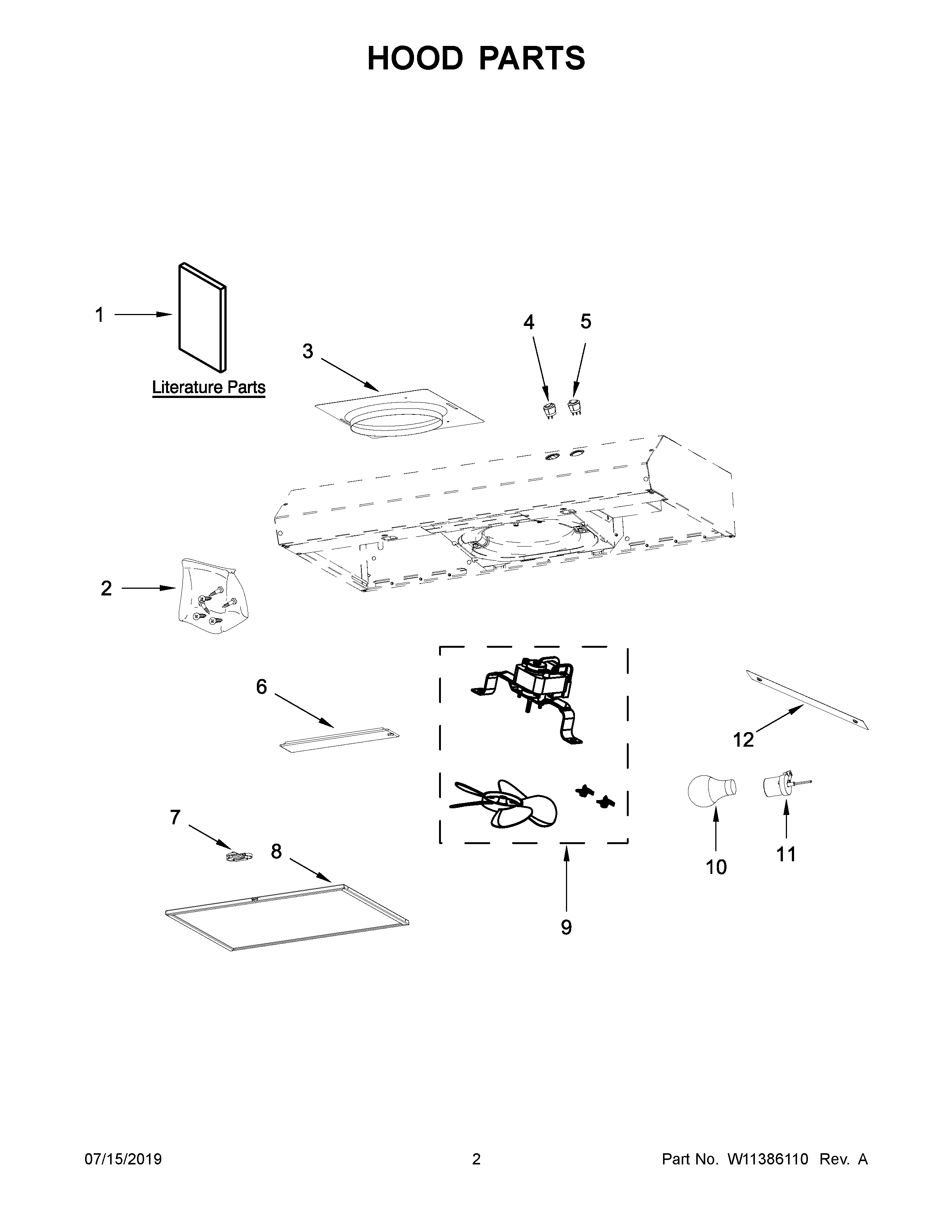

WVU17UC0JS0 02 – HOOD PARTS

WVU17UC0JS0 02 – HOOD PARTS

Written by

in

WVU17UC0JS0 02 – HOOD PARTS

Products

PositionProduct
NIW10613691 Whirlpool Range Hood Power Cord
NIW11371717 Whirlpool Filter
1USE AND CARE GUIDE
2W10665195 Whirlpool Hardware Assembly
3W10386343 Whirlpool Air Duct Assembly
4W10394523 Whirlpool Rocker Switch
4AW10394520 Whirlpool Rocker Switch
4BW11369101 Whirlpool Rocker Switch
5W10394557 Whirlpool Rocker Switch
5AW11740801 Whirlpool Rocker Switch
5BSWITCH, FAN (STAINLESS)
6W11369090 Whirlpool Light Cover
7W10416841 Whirlpool Filter Latch
8W11369459 Whirlpool Filter Assembly
9WPW10395033 Whirlpool Fan Motor
10W11371416 Whirlpool Light Assembly
11W11369077 Whirlpool Socket
12COVER, VENT (WHITE)
12ACOVER, VENT (BLACK)
12BCOVER, VENT (STAINLESS)
