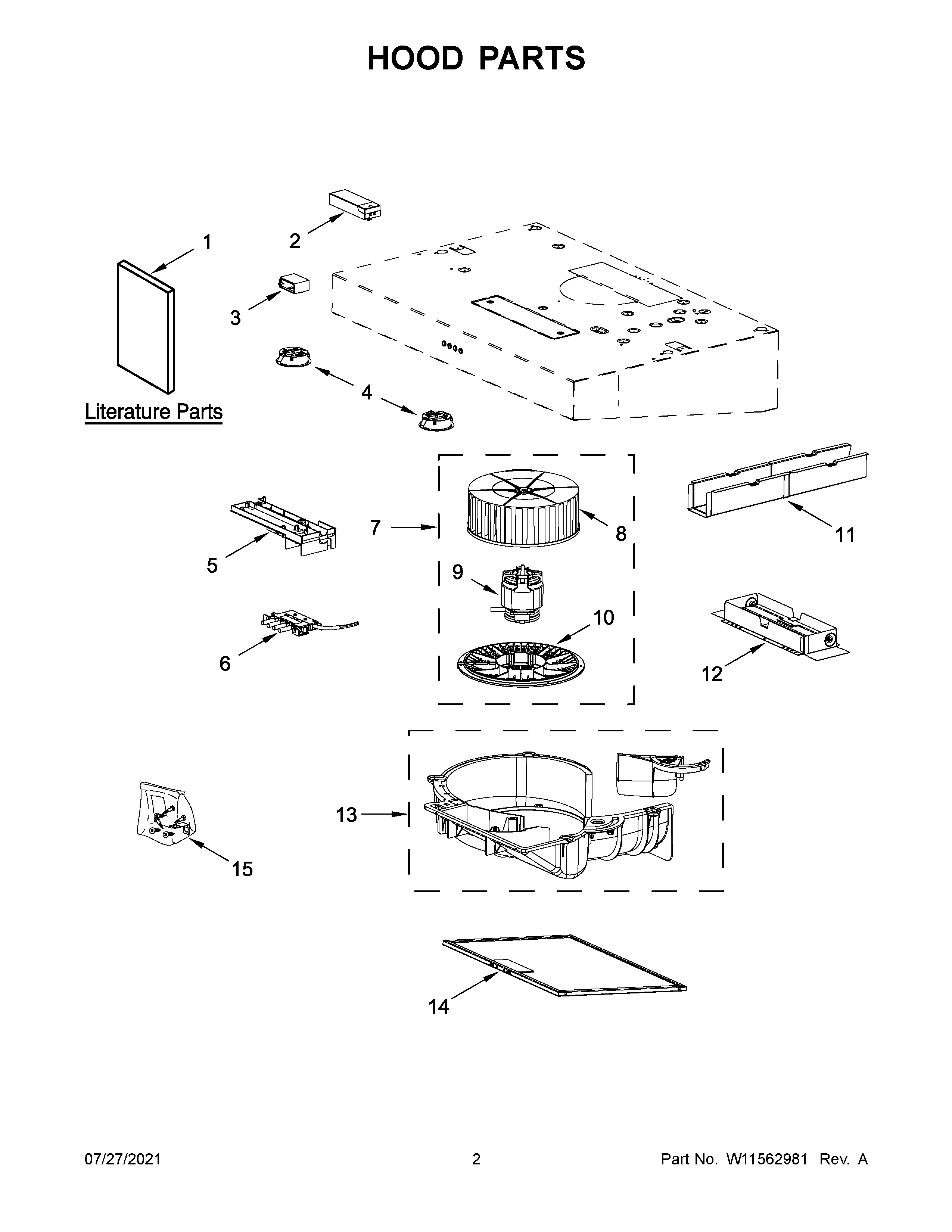

WVU37UC4FS1 02 – HOOD PARTS

WVU37UC4FS1 02 – HOOD PARTS

Written by

in

WVU37UC4FS1 02 – HOOD PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2W11282989 Whirlpool Transformer
3W11099740 Whirlpool Capacitor
4W11690135 Whirlpool Light
5MOUNT, CONTROL
6W11100652 Whirlpool Control Button
7W11100651 Whirlpool Blower Fan
8W11099714 Whirlpool Blower Wheel
9W11099715 Whirlpool Fan Motor
10W11099743 Whirlpool Cover Assembly
11BOX, JUNCTION
12WPW10291572 Whirlpool Hood Damper Assembly
13W11099741 Whirlpool Casing Assembly
14W11100647 Whirlpool Filter
15HARDWARE, INSTALLATION
