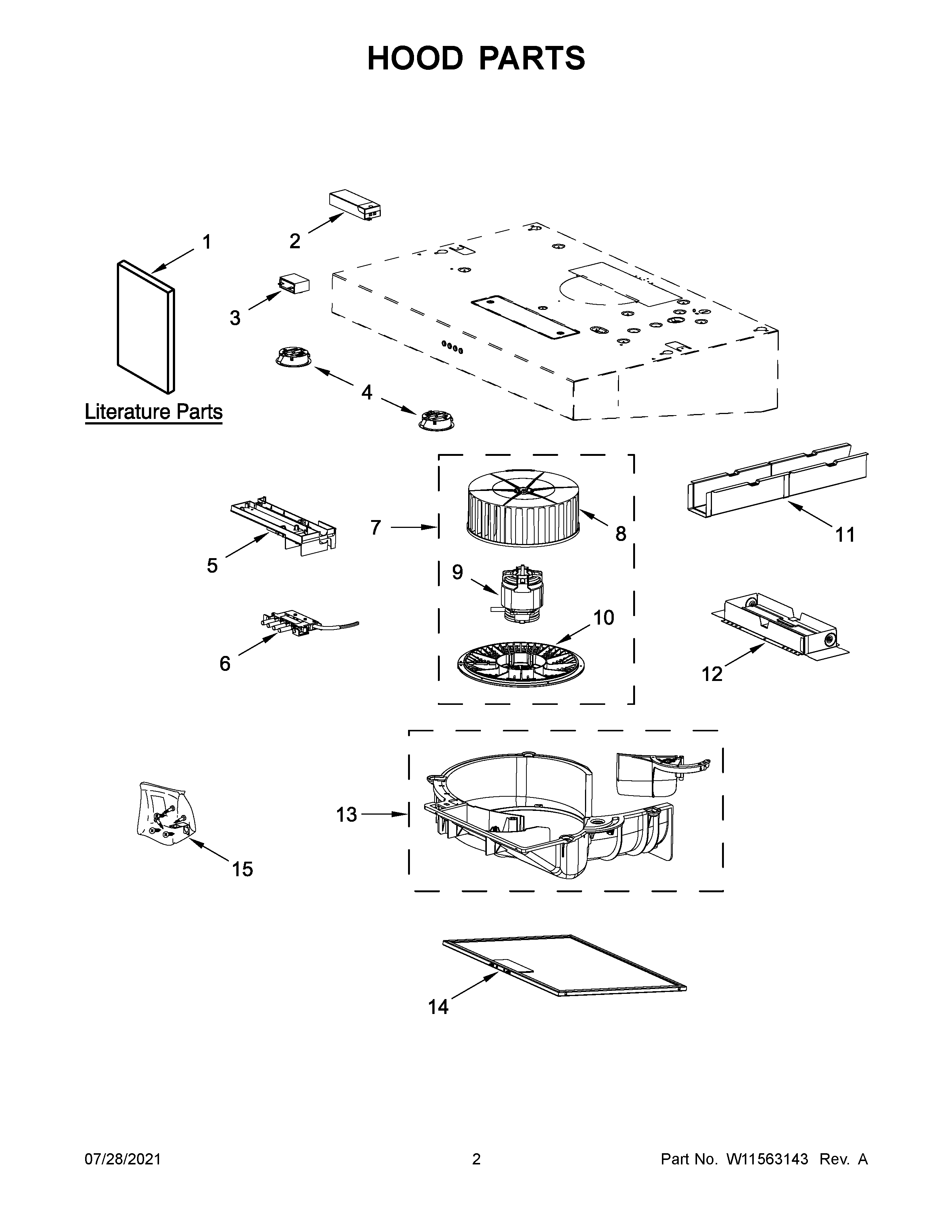

WVU37UC6FS1 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	W11282989 Whirlpool Transformer
3	W11099740 Whirlpool Capacitor
4	W11690135 Whirlpool Light
5	MOUNT, CONTROL
6	W11100652 Whirlpool Control Button
7	W11100651 Whirlpool Blower Fan
8	W11099714 Whirlpool Blower Wheel
9	W11099715 Whirlpool Fan Motor
10	W11099743 Whirlpool Cover Assembly
11	BOX, JUNCTION
12	WPW10291572 Whirlpool Hood Damper Assembly
13	W11099741 Whirlpool Casing Assembly
14	W11100656 Whirlpool Filter
14A	W11100653 Whirlpool Filter Assembly
15	W11099760 Whirlpool Hardware Kit
