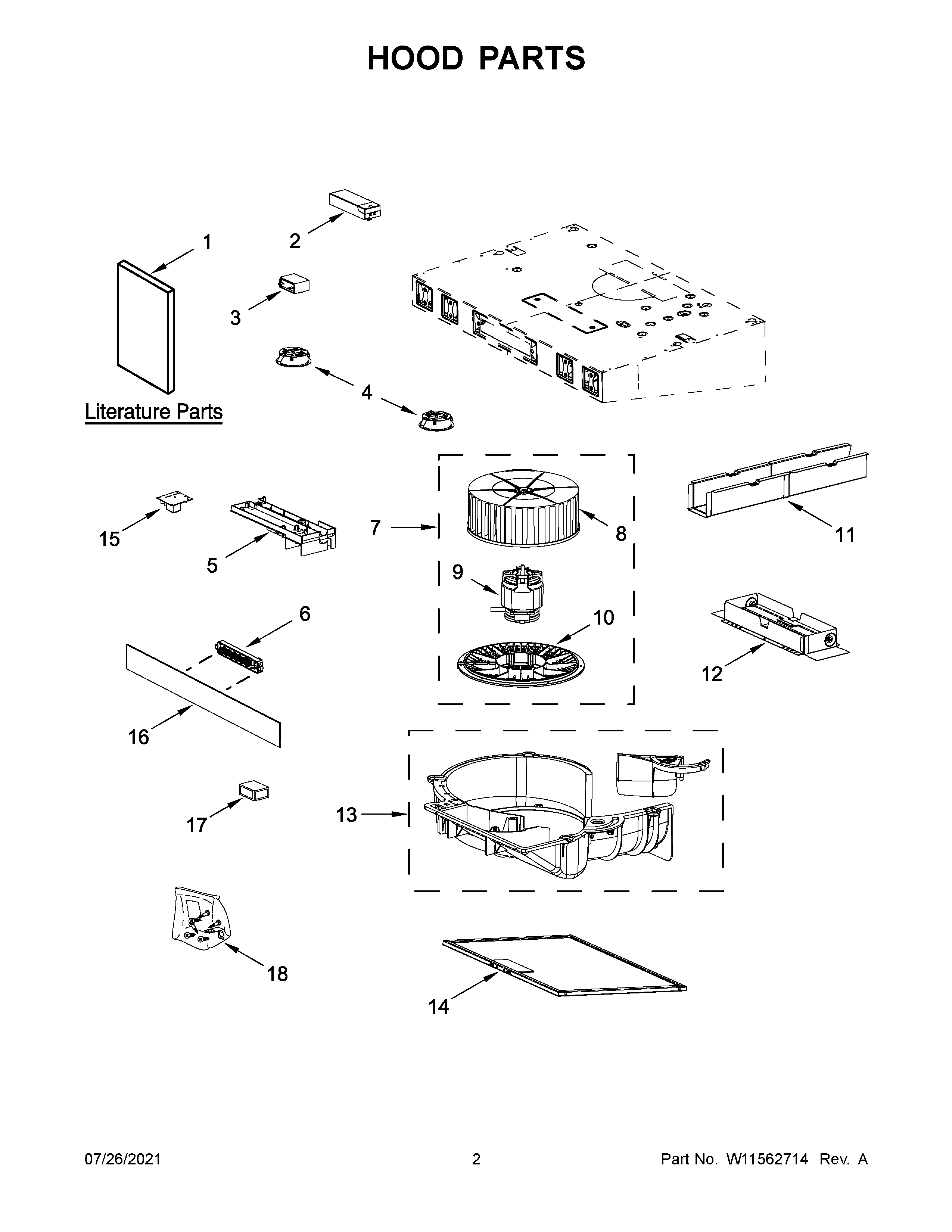

WVU57UC0FS1 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	W11282989 Whirlpool Transformer
3	CAPACITOR
4	W11690135 Whirlpool Light
5	MOUNT, CONTROL
6	W11100661 Whirlpool Microwave Electronic Control Board
7	W11100658 Whirlpool Fan Blower
8	W11099714 Whirlpool Blower Wheel
9	MOTOR, FAN
10	W11099743 Whirlpool Cover Assembly
11	BOX, JUNCTION
12	WPW10291572 Whirlpool Hood Damper Assembly
13	W11099741 Whirlpool Casing Assembly
14A	W11100653 Whirlpool Filter Assembly
14	W11100656 Whirlpool Filter
15	W11100663 Whirlpool Power Board
16	W11432212 Whirlpool Glass
16A	W11099807 Whirlpool Glass Panel
17	FILTER, NOISE
18	W11099760 Whirlpool Hardware Kit
