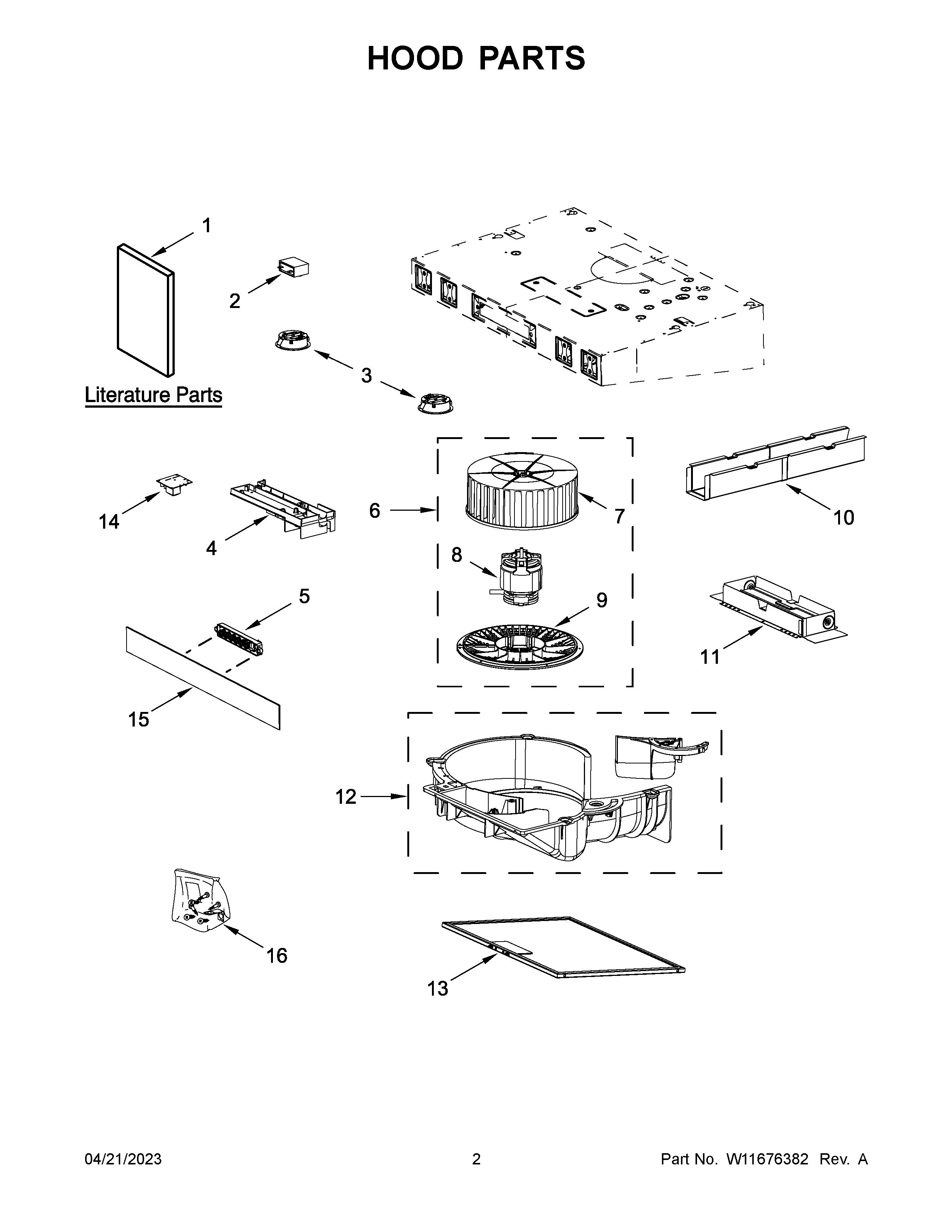

WVU57UC0FS2 02 – HOOD PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2CAPACITOR
3W11690135 Whirlpool Light
4HOUSING, CONTROL
5W11100661 Whirlpool Microwave Electronic Control Board
6W11100658 Whirlpool Fan Blower
7W11099714 Whirlpool Blower Wheel
8MOTOR, FAN
9W11099743 Whirlpool Cover Assembly
10BOX, JUNCTION
11W11516461 Whirlpool Hood Damper
12W11099741 Whirlpool Casing Assembly
13W11100656 Whirlpool Filter
13AW11100653 Whirlpool Filter Assembly
14W11613025-includeCORE Whirlpool W11613025 Refrigerator Electronic Control Board with Core
15W11432212 Whirlpool Glass
15AW11099807 Whirlpool Glass Panel
16W11099760 Whirlpool Hardware Kit
