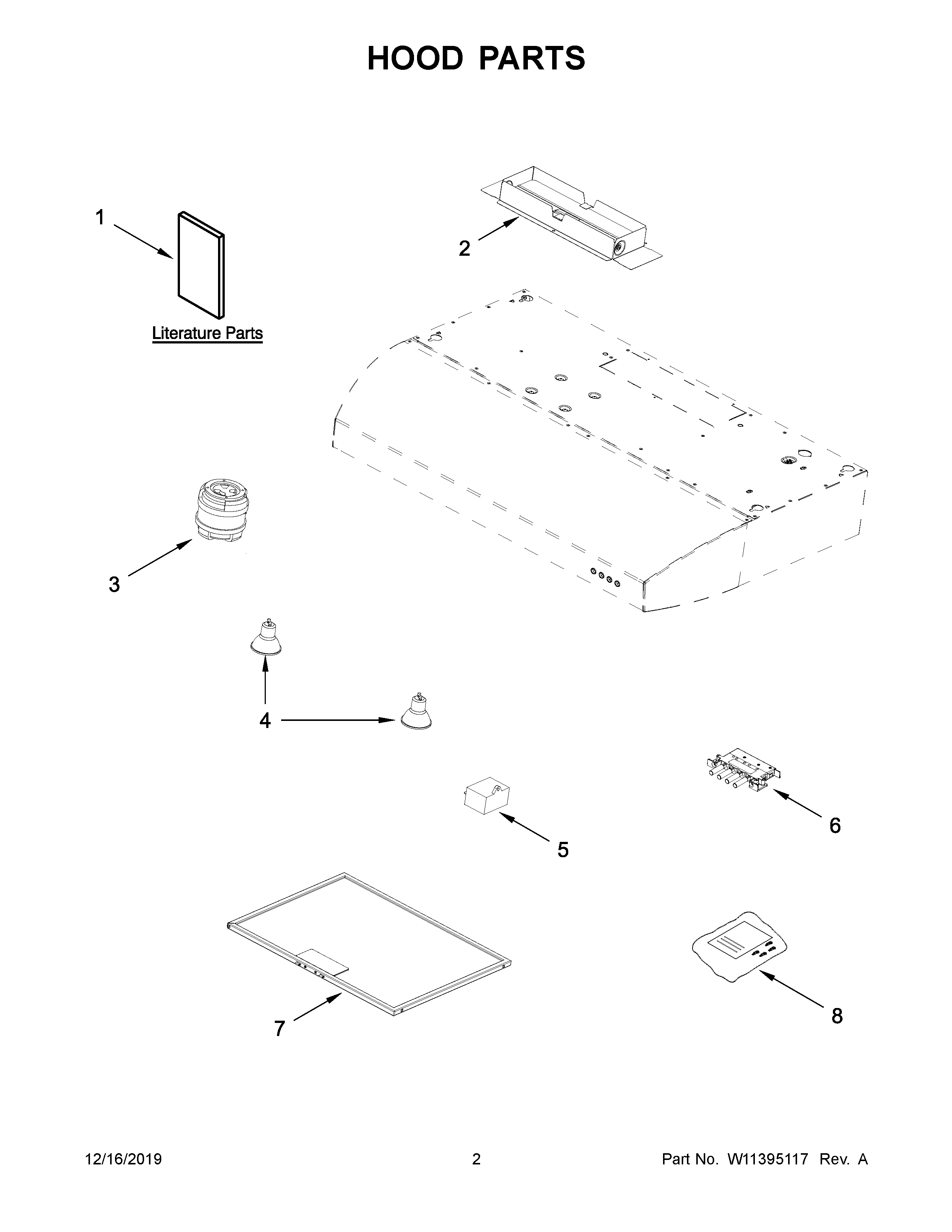

WVU7130JS0 02 – HOOD PARTS

Written by

Products

Position	Product
1	USE AND CARE GUIDE
2	WPW10291572 Whirlpool Hood Damper Assembly
3	ASSEMBLY, BLOWER MOTOR
4	W11388881 Whirlpool Light Assembly
5A	W11245981 Whirlpool Capacitor
5	W11715950 Whirlpool Capacitor Assembly
5B	CAPACITOR (12 MF)
6	W11245985 Whirlpool Push Button Switch
7	W11246395 Whirlpool Filter
8	HARDWARE, INSTALLATION
