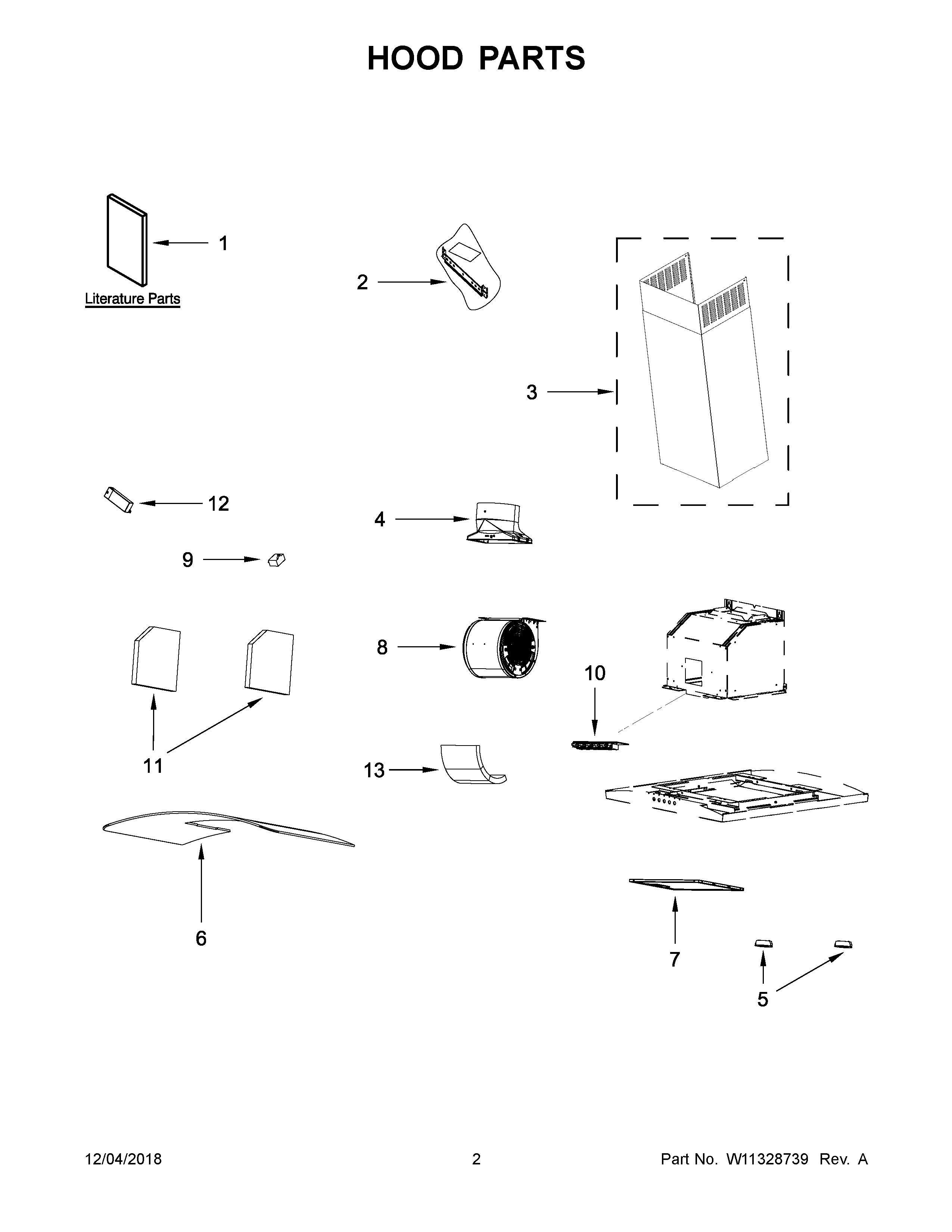

WVW51UC0FS2 02 – HOOD PARTS

Products

Position	Product
NI	W11430939 Whirlpool Duct Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W10894817 Whirlpool Hardware
NI	W10446915 Whirlpool Range Hood Air Kit
1	USE AND CARE GUIDE
2	W10894816 Whirlpool Hardware
3	W11590865 Whirlpool Chimney
4	W10847841 Whirlpool Range Hood Vent Damper
5	W11109591 Whirlpool Light Assembly
6A	WPW10313844 Whirlpool Glass Panel
6	WPW10313843 Whirlpool Glass
7	W10169961A Whirlpool Grease Filter
8	WPW10291577 Whirlpool Fan Motor
9	W11328673 Whirlpool Capacitor
10	W11328754 Whirlpool Electronic Control Board
11	W10717244 Whirlpool Insulation
12	W10895844 Whirlpool Transformer
13	W11688852 Whirlpool Insulation Assembly
