WVW51UC0HV1 02 – HOOD PARTS

WVW51UC0HV1 02 – HOOD PARTS

Written by

in

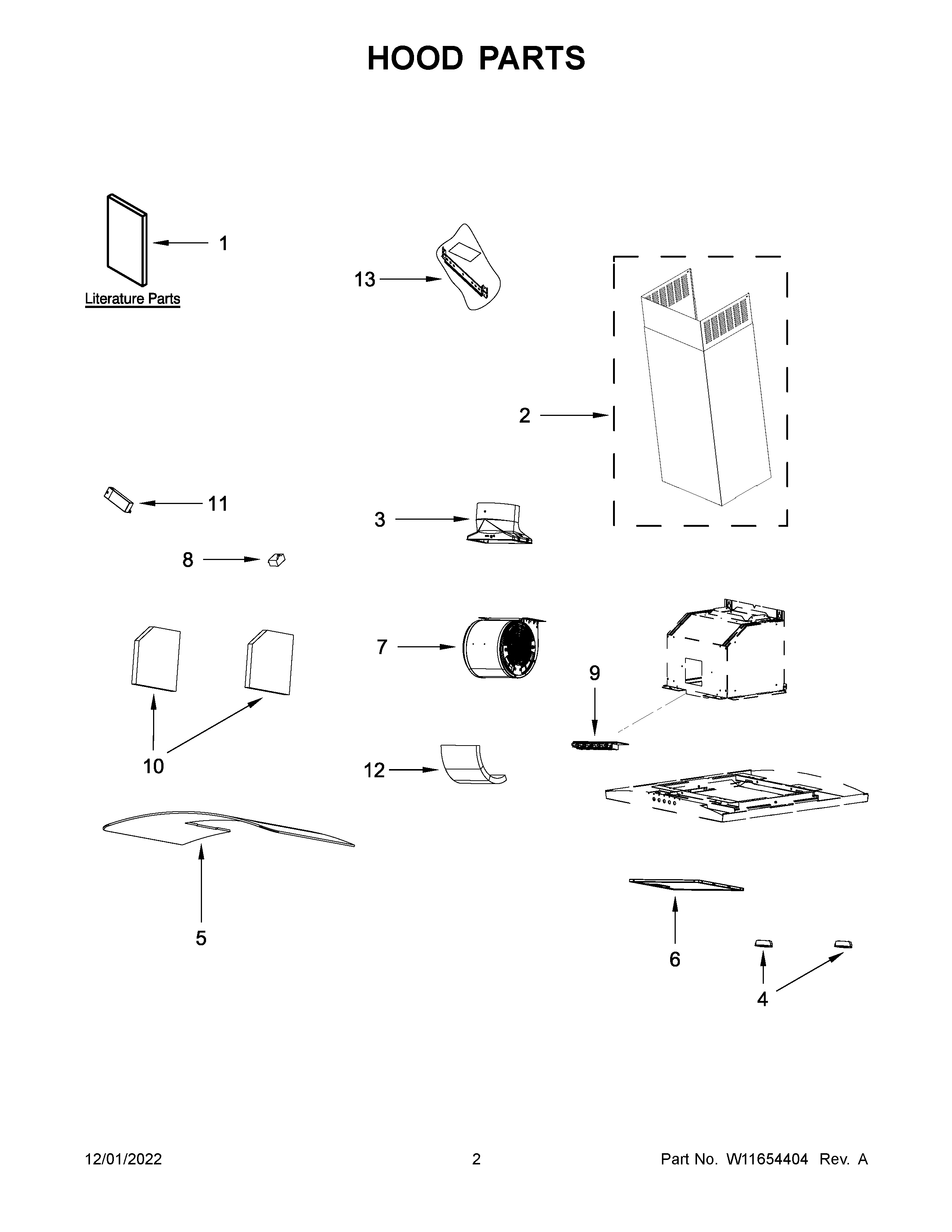

WVW51UC0HV1 02 – HOOD PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2W11416331 Whirlpool Chimney
3W10847841 Whirlpool Range Hood Vent Damper
4W11493395 Whirlpool Light Assembly
5AWPW10313844 Whirlpool Glass Panel
5WPW10313843 Whirlpool Glass
6W10169961A Whirlpool Grease Filter
7W10894803 Whirlpool Fan Blower
8W11328673 Whirlpool Capacitor
9W10895848 Whirlpool Electronic Control Board + Core
10W10717244 Whirlpool Insulation
11W10895844 Whirlpool Transformer
12W11688852 Whirlpool Insulation Assembly
13W10894816 Whirlpool Hardware
