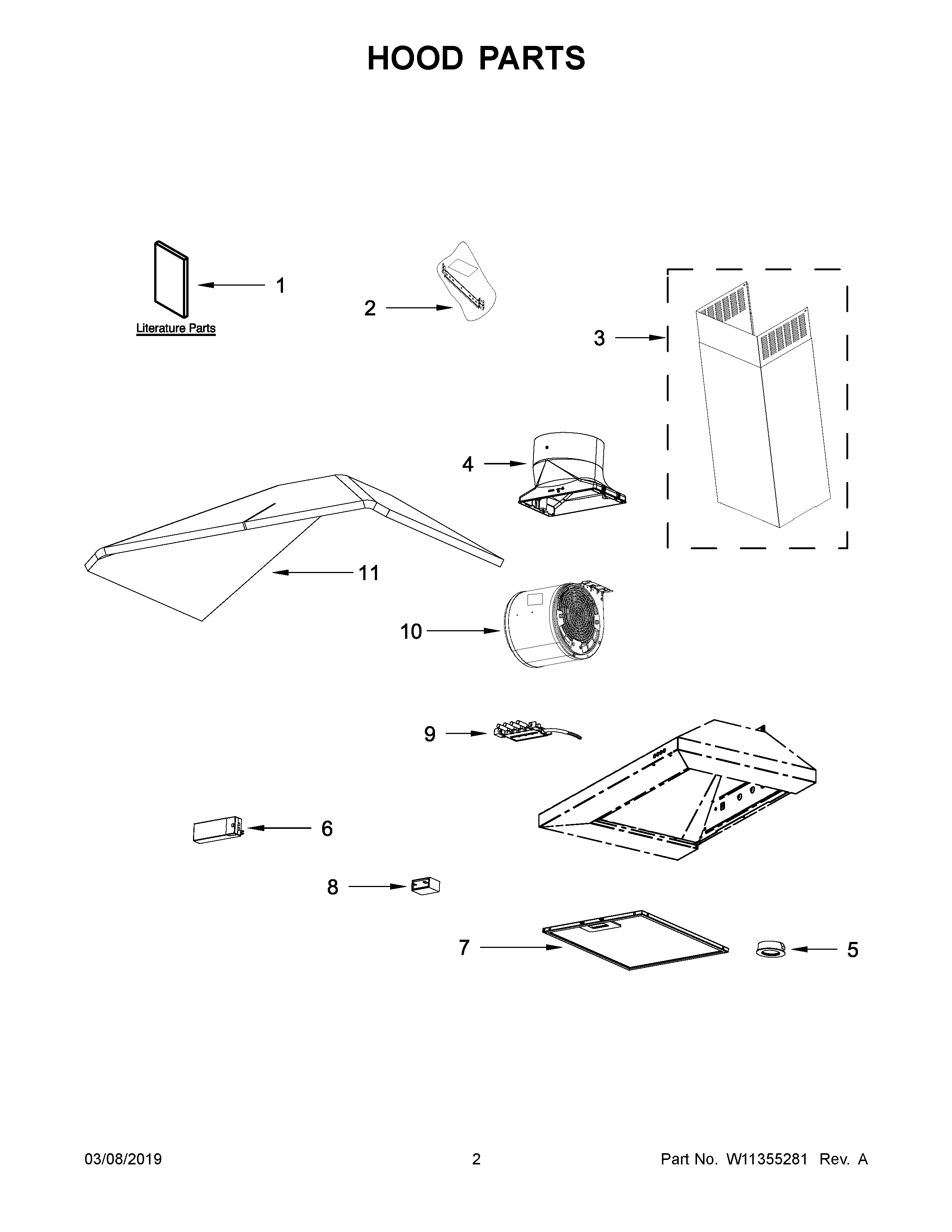

WVW53UC0FS2 02 – HOOD PARTS

WVW53UC0FS2 02 – HOOD PARTS

Written by

in

WVW53UC0FS2 02 – HOOD PARTS

Products

PositionProduct
NIW10894817 Whirlpool Hardware
NIW11430940 Whirlpool Vent Kit Recirculating
NIW10446915 Whirlpool Range Hood Air Kit
NIW10412939 Whirlpool Charcoal Filter Pack
1USE AND CARE GUIDE
2W11239539 Whirlpool Hardware
3W11417192 Whirlpool Duct Assembly
4W10847841 Whirlpool Range Hood Vent Damper
5W11109591 Whirlpool Light Assembly
6W11282989 Whirlpool Transformer
7W10169961A Whirlpool Grease Filter
8W11328673 Whirlpool Capacitor
9W11354834 Whirlpool Electronic Control Board
10W11354646 Whirlpool Fan Blower
11W11688813 Whirlpool Insulation
11AW11684790 Whirlpool Insulation
