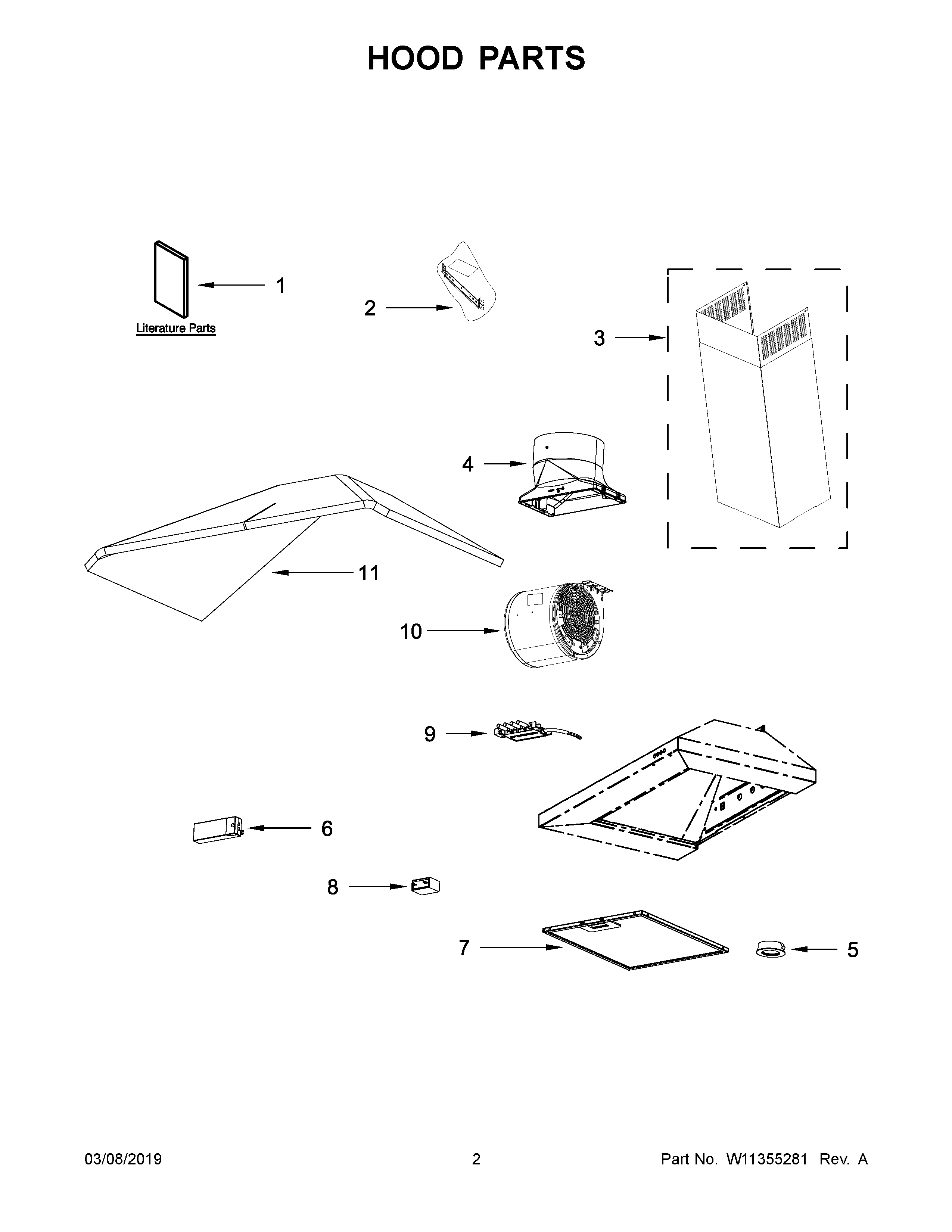

WVW53UC6FS2 02 – HOOD PARTS

Products

Position	Product
NI	W10894817 Whirlpool Hardware
NI	W11430940 Whirlpool Vent Kit Recirculating
NI	W10446915 Whirlpool Range Hood Air Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
1	USE AND CARE GUIDE
2	W11239539 Whirlpool Hardware
3	W11417192 Whirlpool Duct Assembly
4	W10847841 Whirlpool Range Hood Vent Damper
5	W11109591 Whirlpool Light Assembly
6	W11282989 Whirlpool Transformer
7	W10169961A Whirlpool Grease Filter
8	W11328673 Whirlpool Capacitor
9	W11354834 Whirlpool Electronic Control Board
10	W11354646 Whirlpool Fan Blower
11	W11688813 Whirlpool Insulation
11A	W11684790 Whirlpool Insulation
