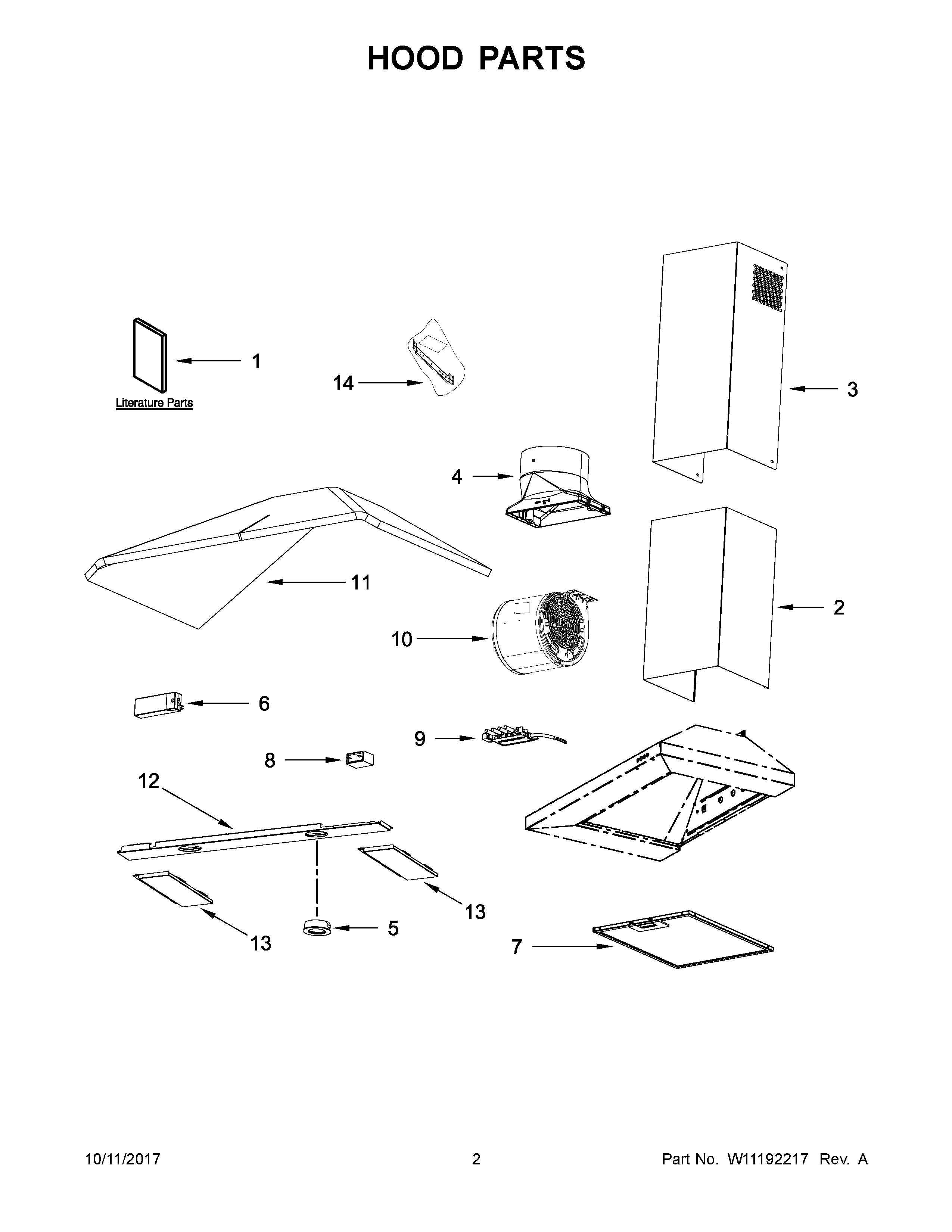

WVW53UC6HV0 02 – HOOD PARTS

Products

Position	Product
NI	W11430940 Whirlpool Vent Kit Recirculating
NI	W10894817 Whirlpool Hardware
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W10446915 Whirlpool Range Hood Air Kit
1	USE AND CARE GUIDE
2	W11240046 Whirlpool Chimney
4	W10847841 Whirlpool Range Hood Vent Damper
5	W11109591 Whirlpool Light Assembly
6	W11282989 Whirlpool Transformer
7	W10169961A Whirlpool Grease Filter
8	W11328673 Whirlpool Capacitor
9	W11328755 Whirlpool Refrigerator Electronic Control Board
10	W10894839 Whirlpool Fan Blower
11A	W11684790 Whirlpool Insulation
11	W11688813 Whirlpool Insulation
12	PANEL, FRONT (30" MODEL ONLY)
12A	PANEL, FRONT (36" MODEL ONLY)
13	PANEL, SIDE (30" MODEL ONLY)
13A	PANEL, SIDE (36" MODEL ONLY)
14	W11239539 Whirlpool Hardware
