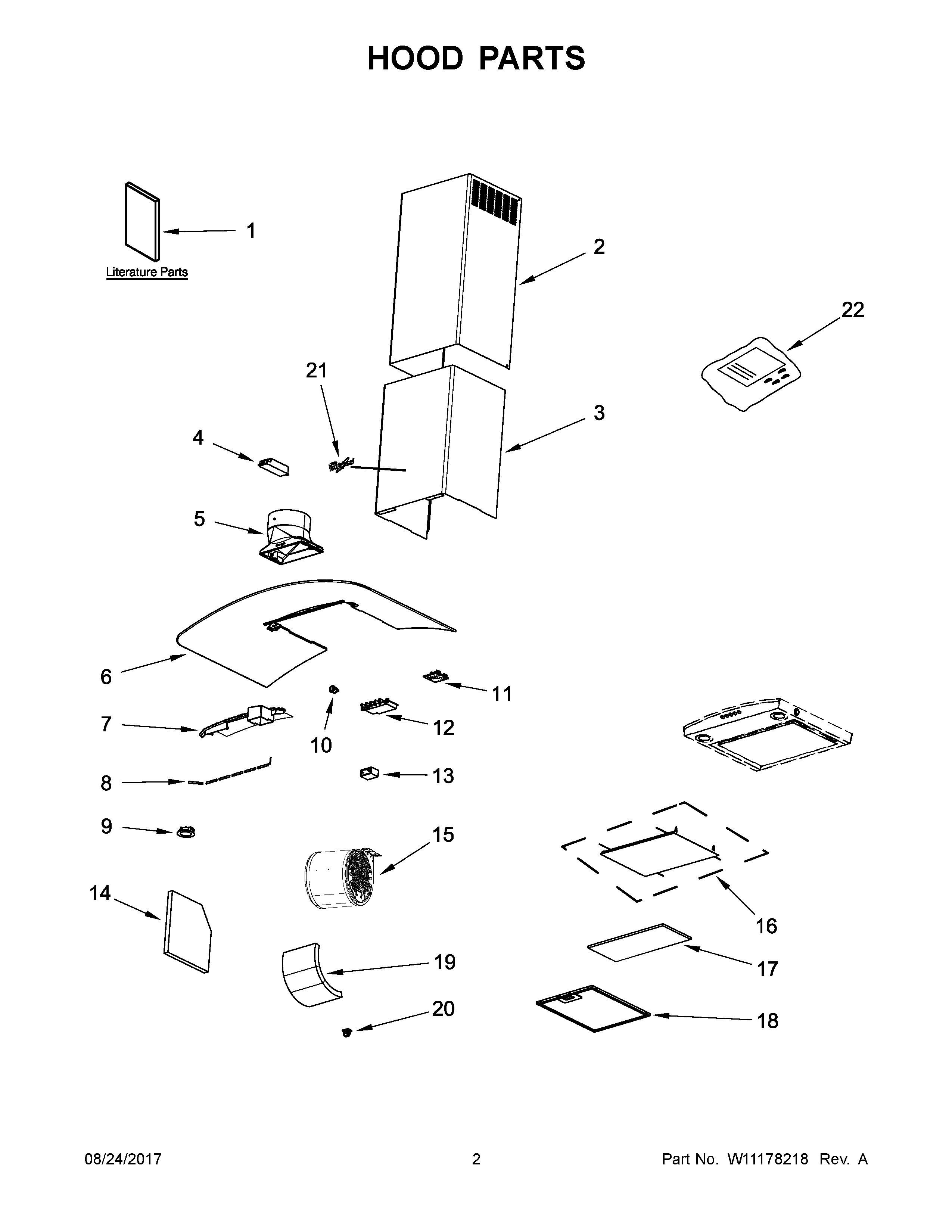

WVW75UC0DS2 02 – HOOD PARTS

Products

Position	Product
NI	W11430939 Whirlpool Duct Kit
NI	W10294735 Whirlpool Range Chimney Exhaust Duct
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W10692945 Whirlpool Range Hood Fan Motor
NI	W10613691 Whirlpool Range Hood Power Cord
1	USE AND CARE GUIDE
3	W11590865 Whirlpool Chimney
4	W11282989 Whirlpool Transformer
5	W10847841 Whirlpool Range Hood Vent Damper
6	WPW10738509 Whirlpool Glass
6A	WPW10738521 Whirlpool Glass Assembly
7	W10738520 Whirlpool LT Support
8	W10727052 Whirlpool Light Assembly
9	W11109591 Whirlpool Light Assembly
10	W10727051 Whirlpool Power Button Switch
11	W10738544 Whirlpool Sensor
12	W11035084-includeCORE Whirlpool W11035084 Refrigerator Electronic Control Board + Core
13	W11328673 Whirlpool Capacitor
14	W10717244 Whirlpool Insulation
15	W10738514 Whirlpool Fan Motor Assembly
16	W10738508 Whirlpool Cover Base Assembly
17	W11688811 Whirlpool Insulation Assembly
18	W10169961A Whirlpool Grease Filter
19	W11688852 Whirlpool Insulation Assembly
20	W10854245 Whirlpool Clip
21	W11178521 Whirlpool Dishwasher Nameplate
22	W11178652 Whirlpool Hardware
