WVW75UC6DS3 02 – HOOD PARTS

WVW75UC6DS3 02 – HOOD PARTS

Written by

in

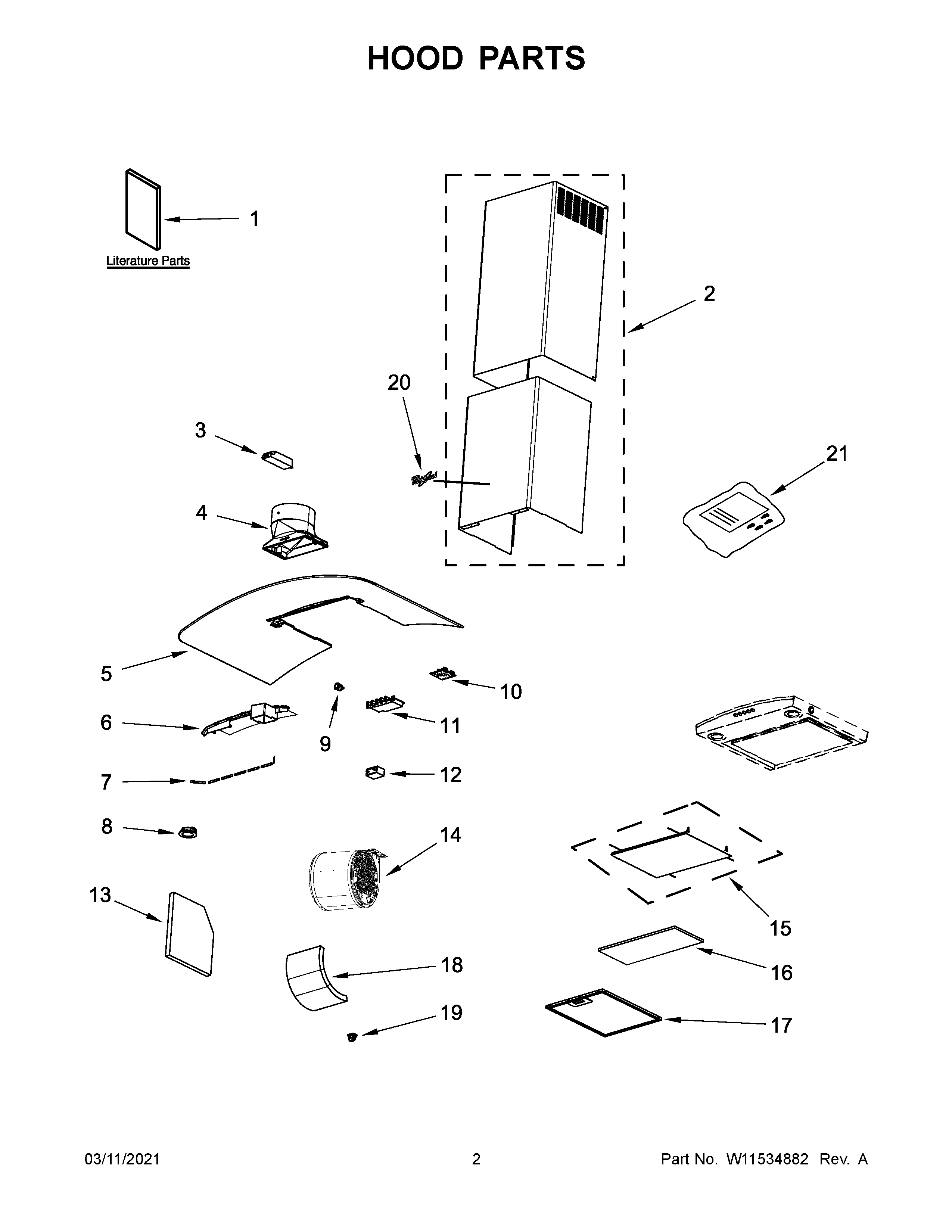

WVW75UC6DS3 02 – HOOD PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2W11590865 Whirlpool Chimney
3W11282989 Whirlpool Transformer
4W10847841 Whirlpool Range Hood Vent Damper
5AWPW10738521 Whirlpool Glass Assembly
5WPW10738509 Whirlpool Glass
6W10738520 Whirlpool LT Support
7W10727052 Whirlpool Light Assembly
8W11493395 Whirlpool Light Assembly
9W10727051 Whirlpool Power Button Switch
10W10738544 Whirlpool Sensor
11W11035084-includeCORE Whirlpool W11035084 Refrigerator Electronic Control Board + Core
12W11328673 Whirlpool Capacitor
13W10717244 Whirlpool Insulation
14W10738514 Whirlpool Fan Motor Assembly
15W10738508 Whirlpool Cover Base Assembly
16W11688811 Whirlpool Insulation Assembly
17W10169961A Whirlpool Grease Filter
18W11688852 Whirlpool Insulation Assembly
19W10854245 Whirlpool Clip
20W11178521 Whirlpool Dishwasher Nameplate
21W11178652 Whirlpool Hardware
