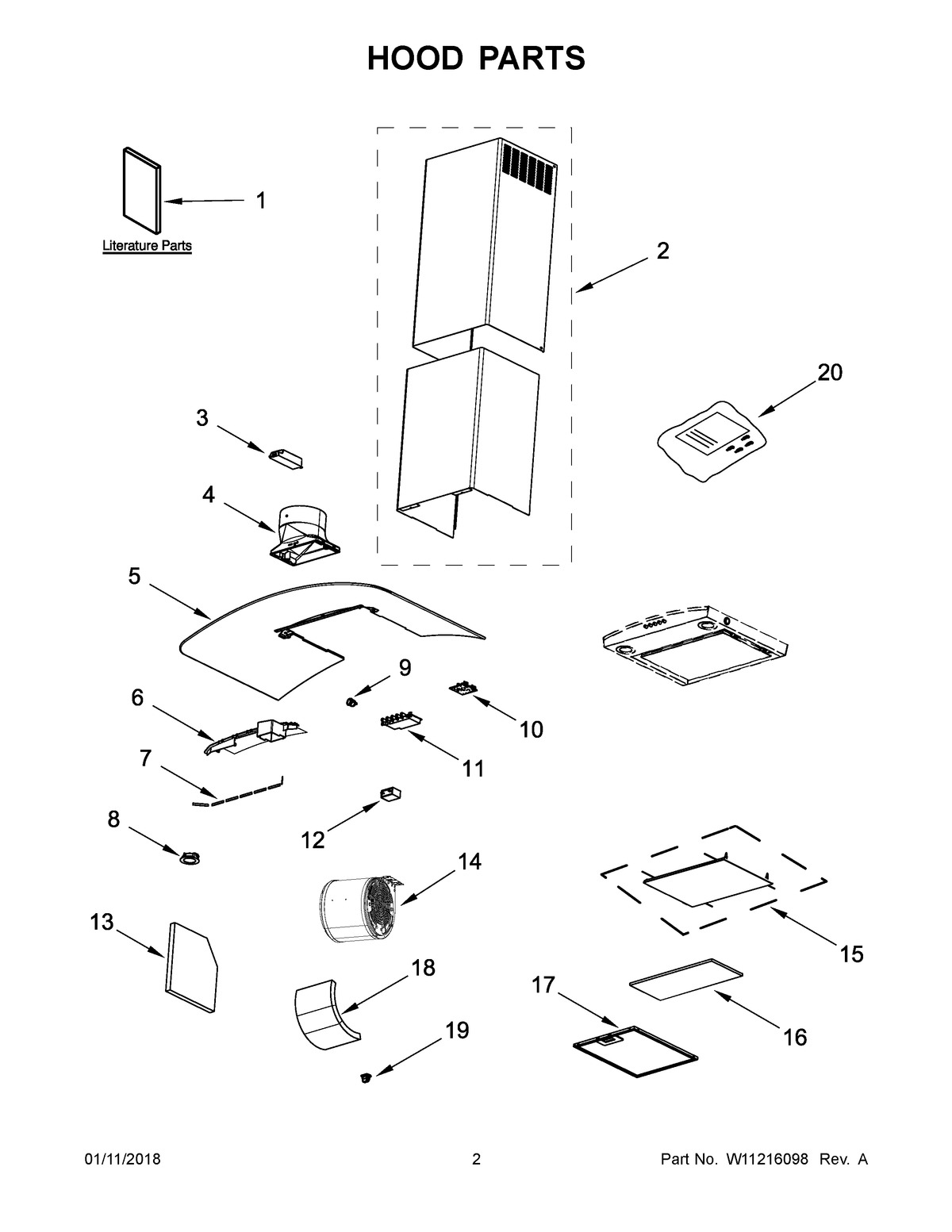

WVWA5UC0HN0 02 – HOOD PARTS

Products

Position	Product
NI	W11430939 Whirlpool Duct Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W10692945 Whirlpool Range Hood Fan Motor
NI	W10613691 Whirlpool Range Hood Power Cord
1	USE AND CARE GUIDE
2	W11216559 Whirlpool Chimney
3	W11282989 Whirlpool Transformer
4	W10847841 Whirlpool Range Hood Vent Damper
5A	WPW10738521 Whirlpool Glass Assembly
5	WPW10738509 Whirlpool Glass
6	W10738520 Whirlpool LT Support
7	W10727052 Whirlpool Light Assembly
8	W11109591 Whirlpool Light Assembly
9	W10727051 Whirlpool Power Button Switch
10	W10738544 Whirlpool Sensor
11	W11035084-includeCORE Whirlpool W11035084 Refrigerator Electronic Control Board + Core
12	W11328673 Whirlpool Capacitor
13	W10717244 Whirlpool Insulation
14	W10738514 Whirlpool Fan Motor Assembly
15	PANEL, PERIMETRIC
16	W11688811 Whirlpool Insulation Assembly
17	W10169961A Whirlpool Grease Filter
18	W11688852 Whirlpool Insulation Assembly
19	W10854245 Whirlpool Clip
20	W11178652 Whirlpool Hardware
