WVWA5UC6HN0 02 – HOOD PARTS

WVWA5UC6HN0 02 – HOOD PARTS

Written by

in

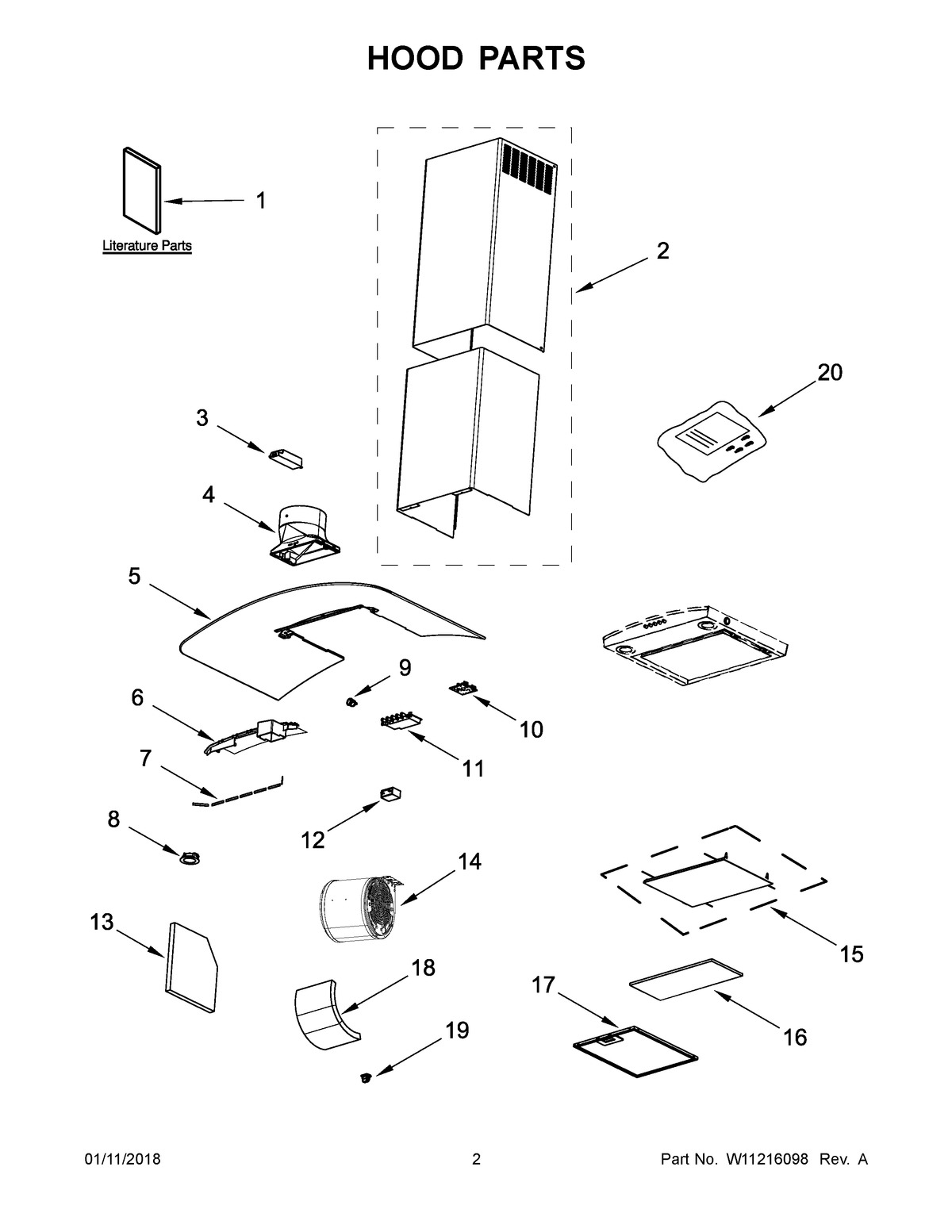

WVWA5UC6HN0 02 – HOOD PARTS

Products

PositionProduct
NIW11430939 Whirlpool Duct Kit
NIW10412939 Whirlpool Charcoal Filter Pack
NIW10692945 Whirlpool Range Hood Fan Motor
NIW10613691 Whirlpool Range Hood Power Cord
1USE AND CARE GUIDE
2W11216559 Whirlpool Chimney
3W11282989 Whirlpool Transformer
4W10847841 Whirlpool Range Hood Vent Damper
5AWPW10738521 Whirlpool Glass Assembly
5WPW10738509 Whirlpool Glass
6W10738520 Whirlpool LT Support
7W10727052 Whirlpool Light Assembly
8W11109591 Whirlpool Light Assembly
9W10727051 Whirlpool Power Button Switch
10W10738544 Whirlpool Sensor
11W11035084-includeCORE Whirlpool W11035084 Refrigerator Electronic Control Board + Core
12W11328673 Whirlpool Capacitor
13W10717244 Whirlpool Insulation
14W10738514 Whirlpool Fan Motor Assembly
15PANEL, PERIMETRIC
16W11688811 Whirlpool Insulation Assembly
17W10169961A Whirlpool Grease Filter
18W11688852 Whirlpool Insulation Assembly
19W10854245 Whirlpool Clip
20W11178652 Whirlpool Hardware
