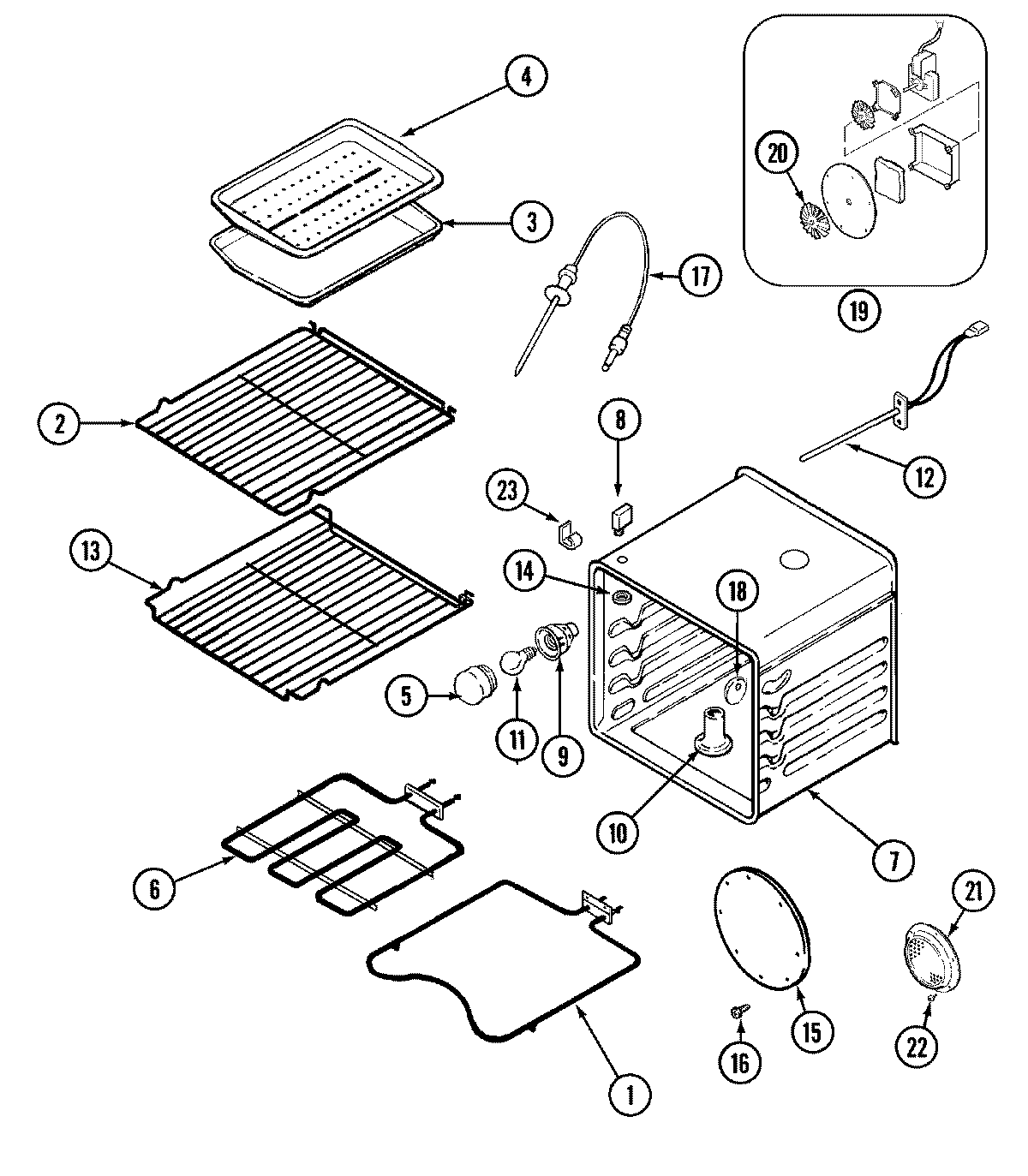

WW30430PF 05 – OVEN (WW30430PF,PG,PK,PR,PU)

WW30430PF 05 – OVEN (WW30430PF,PG,PK,PR,PU)

Written by

in

WW30430PF 05 – OVEN (WW30430PF,PG,PK,PR,PU)

Products

PositionProduct
1WPW10310258 Whirlpool Bake Element
2WPW10282527 Whirlpool Oven Rack
3MAY 3401F014-19
4MAY 703165
5MAY 71001867
6WPW10310260 Whirlpool Broil Element
7MAY 71001394
7MAY 71003005
7MAY 71001403
8MAY 71001863
8MAY Y04100596
9MAY 71001866
10MAY 71002419
11MAY Y707319
11WP74011278 Whirlpool Light
12MAY Y704657
14MAY Y703356
15MAY 71002903
16MAY 702592
17WP71001870 Whirlpool Temperature Probe Sensor
18MAY 702929
19MAY 71001858
20MAY 71001855
21MAY 71001854
22WP74003976 Whirlpool Screw
23MAY 71001170
23MAY 71001869
