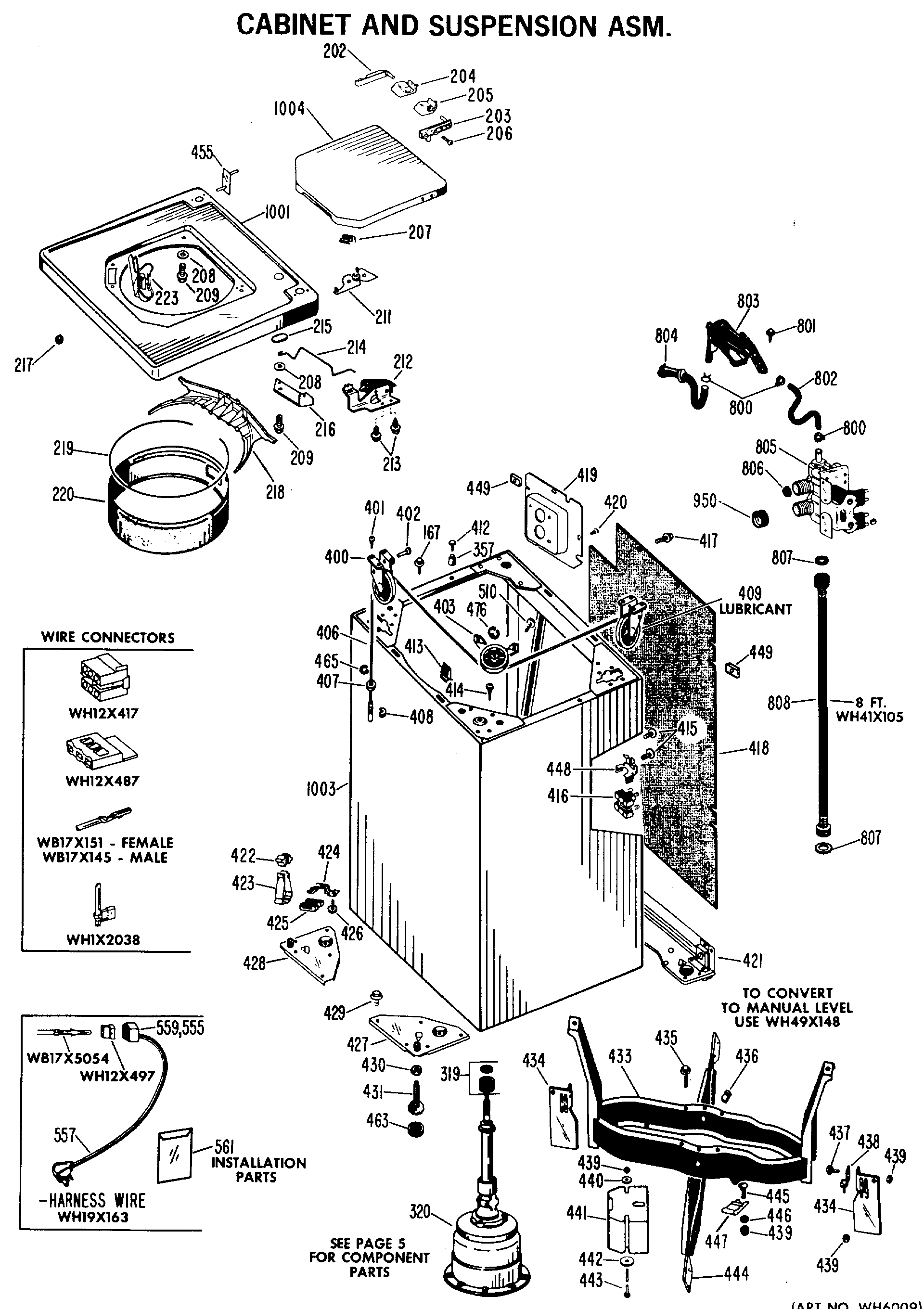

WWA5600VCL CABINET AND SUSPENSION ASM.

WWA5600VCL CABINET AND SUSPENSION ASM.

Written by

in

WWA5600VCL CABINET AND SUSPENSION ASM.

Products

PositionProduct
167GEN WE02X0186
202GEN WH01X2085
203GEN WH01X2222
204PAD-HINGE L.H.
205PAD-HINGE R.H.
206SCR 8-18 B RT 1/2 SS
207GEN WH01X1654
208GEN WH01X2088
209SCR 1/4-14 HX 3/4 S
211GEN WE01X0553
212GEN WH12X0494
214GEN WH01X2090
215GEN WH01X2089
216GEN WH16X0376
217BUMPER LID
218GEN WH16X0413
219GEN WH16X0370
220GEN WH08X0294
319GEN WH01X1986
320GEN WH38X0038
357STOP-COVER
400GEN WH07X0040
401GEN WH02X0940
402GEN WH01X1633
403GEN WH07X0041
406CABLE STD CAPACITY
407GEN WH01X2082
407GEN WH01X2081
408RETAINER SEAT
409GEN WL39X0003
412GEN 10-12X1/8
413CLIP-COVER
414SCR 12-14 B HX 3/4 S
415WZ4X345D GE Screw Package 12 C92
416GEN WH12X0235
417GEN WH02X0694
418GEN WH44X0925
419GEN WH16X0373
420GEN WH42X0893
421GEN WH46X0188
422GEN WH01X1952
423GEN WH01X1951
424GEN WH01X1862
425GEN WH01X1953
426SCR 14-10 A HX 3/4 S
427GEN WH46X0181
428GEN WH46X0182
429GEN WH02X0795
430GEN WZ07X0040
431GEN WH01X0209
433GEN WH17X0067
434DAMPING FIN STD. CAP.
435GEN WH02X0653
436GEN WH02X0739
437GEN WZ02X0514
438GEN WH16X0405
439NUT
440GEN WH02X0810
441GEN WH01X2056
442GEN WH02X0811
443SCR 1/4-20 HX 5 S
444GEN WH16X0361
445SCR 1/4-20 M RD 11/16 S
446GEN WE02X0279
447GEN WH02X0801
448GEN WH01X1998
449GEN WH02X0896
455STRAP-COVER
463WH1X484 GE Rubber Foot Pad
465RING E
476RING-E
510WE2X263D GE Screw Package 12 C92
557GEN WH19X0225
561GEN WH49X0136
800WH1X2036 GE UNIX Clamp
800GEN WH01X0203
801GEN WD02X5063
802GEN WH41X0099
803GEN WH41X0132
804GEN WH41X0170
805WH13X81 GE Washer Water Inlet Valve
806GEN WH01X2077
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
950CAP WATER VALVE
1001GEN WH44X0983
1001GEN WH44X0981
1001GEN WH44X0982
1001GEN WH44X0980
1001GEN WH44X0894
1003GEN WH46X0172
1003GEN WH46X0195
1003GEN WH46X0197
1003GEN WH46X0196
1003GEN WH46X0198
1004GEN WH44X0978
1004LID AD
1004GEN WH44X0977
1004GEN WH44X0525
1004GEN WH44X0979
