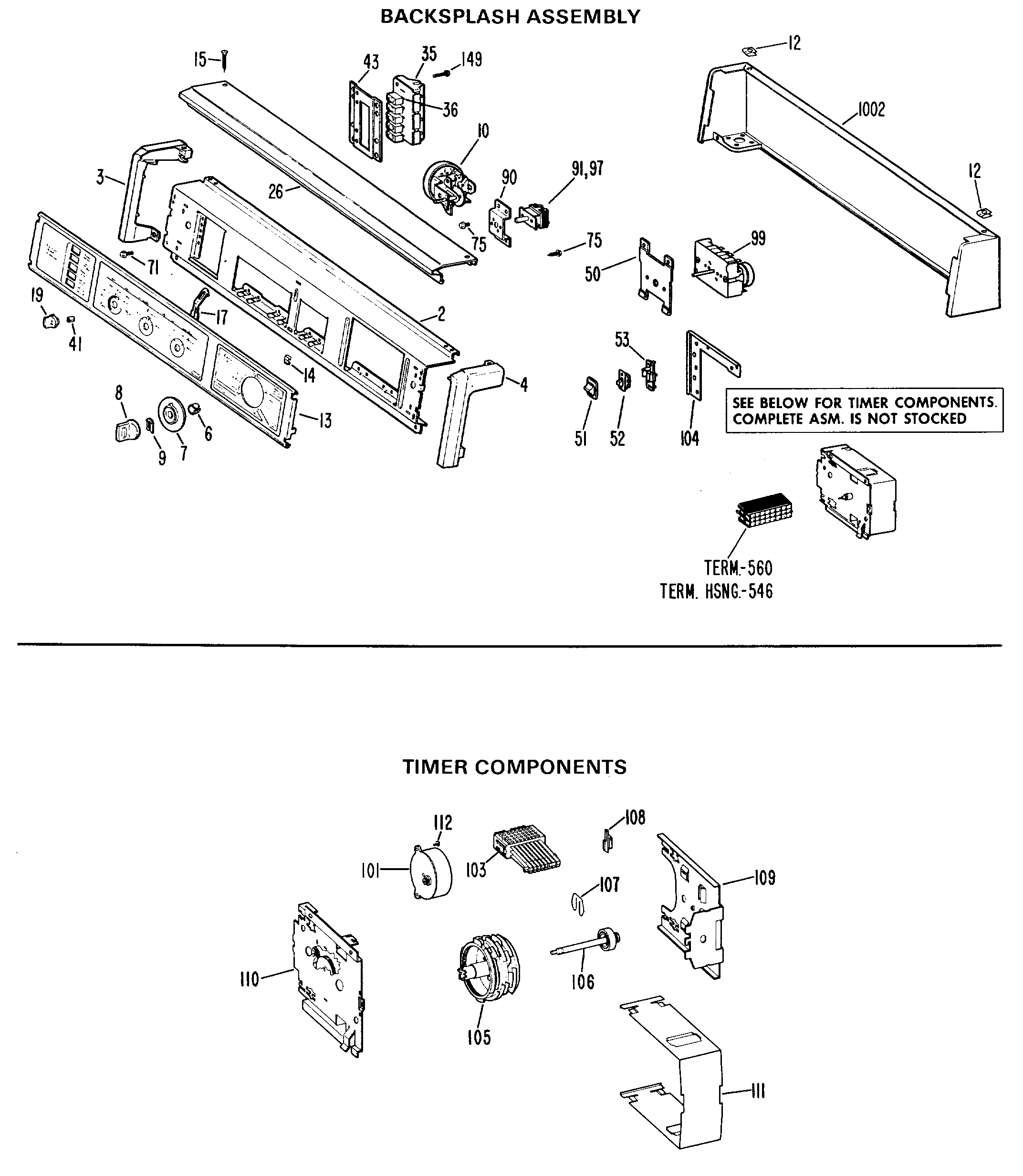

WWA8600GBL BACKSPLASH ASSEMBLY

WWA8600GBL BACKSPLASH ASSEMBLY

Written by

in

WWA8600GBL BACKSPLASH ASSEMBLY

Products

PositionProduct
2GEN WE19X0719
3GEN WE19X0793
4GEN WE19X0792
6GEN WH02X0650
7GEN WH11X0091
8GEN WH01X2119
9WH1X2117 GE Timer Knob Spring Clip
10SWITCH WATER LEVEL VAR/M
12SPEEDNUT
13GEN WH42X2101
14GEN WE01X0762
15GEN WZ04X0319
17GEN WH01X2008
19GEN WE01X1069
26GEN WH42X2131
35GEN WH12X0733
36GEN WE01X0981
41GEN WE01X0980?
43GEN WH16X0343
46GEN WZ04X0238
50GEN WH16X0471
51GEN WH01X2530
52GEN WD21X0581
53GEN WH16X0473
70GEN WH02X0937
71GEN WH02X0947
72GEN WH46X0215
72GEN WH46X0212
72GEN WH46X0211
75WH2X930 GE Screw
90GEN WH16X0434
97GEN WH12X0730
99TIMER ASM
100GEN WH12X0933
101GEN WH12X0719
103GEN WH12X0631
104GEN WH16X0474
105GEN WH11X0114
106GEN WH01X2280
107GEN WH01X2281
108GEN WH01X2282
109GEN WH12X0700
110GEN WH12X0699
111GEN WH12X0701
112GEN WH02X0948
149SCR 8-18 B HXW 3/4 S
150GEN WZ20X0007
416GEN WH12X0235
546GEN WH12X0604
550GEN WE02X0281
554GEN WB17X5054
560GEN WH12X0603
604GEN WH07X0045
611GEN WH04X0091
629GEN WH17X0086
724SCREW 10-16 X 1/2" HEX
735SEAL ACTIVATOR SHAFT ASM
736GEN WH02X0786
737GEN WH02X0207
738GEN WH40X0152
739BEARING ASM AGIT SHAFT
741GEN WH01X1834
742GEN WH04X0093
743GEN WH05X0227
744SHAFT PINION
745GEN WH40X0157
746GEN WH01X2335
747GEN WH01X1842
748GEN WH10X0045
749GEN WZ11X0055
750GEN WH07X0046
751GEN WH02X0671
752GEN WH02X0659
753GEN WH02X0201
758GEN WH08X0242
759GEN WH40X0149
760GEN WH05X0216
761GEN WH04X0081
762GEN WH07X0057
763GEN WH07X0058
764GEN WH01X2147
765GEN WH40X0145
766GEN WH40X0146
767GEN WH05X0209
768GEN WZ13X0032
770GEN WH05X0187
771GEN WH39X0040
773GEN WH17X0069
774CLAMP HUB
775GEN WZ01X0032
828GEN WH41X0295
32767GEN WH01X252
32767GEN WH01X2522
32767GEN 49-9511
32767GEN 31-2400
32767GEN WH01X1862
32767GEN WH00X0529
32767GEN WH00X0551
32767SPOUT-BLEACH FA
32767GEN WH01X1092
32767GEN WH01X1986
32767GEN WH00X0526
