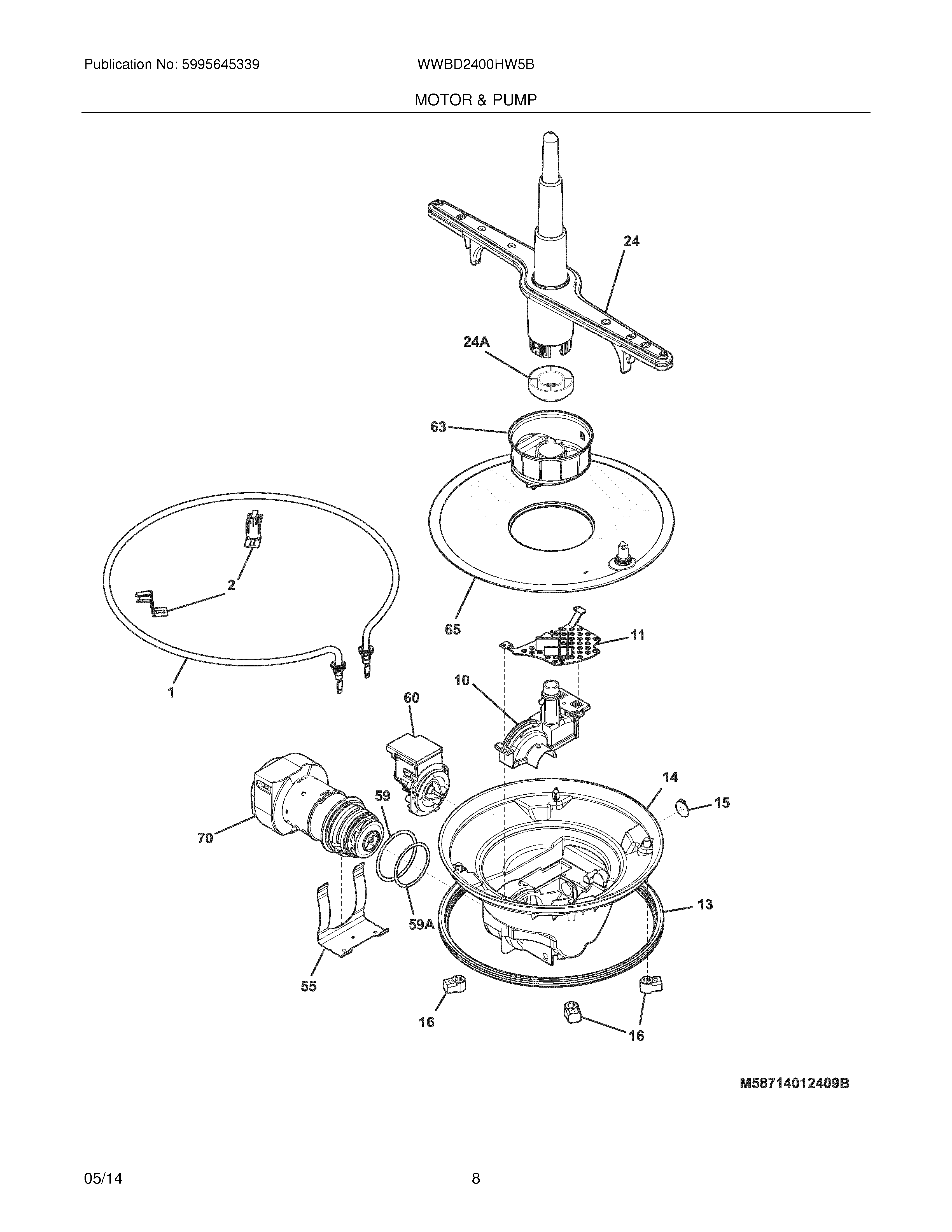

WWBD2400HW5B 09 – MOTOR & PUMP

Products

Position	Product
NI	154783101 Frigidaire Dishwasher Screw
NI	154779601 Frigidaire Dishwasher Screw
NI	154297701 Frigidaire Dishwasher Screw
NI	154380601 Frigidaire Dishwasher Clamp Assembly
NI	154106202 Frigidaire Dishwasher Heater Nut
NI	154754901 Frigidaire Dishwasher Screw
NI	154741501 Frigidaire Dishwasher Screw
NI	154289801 Frigidaire Dishwasher Shield
1	154825001 Frigidaire Dishwasher Round Heater Heating Element
2	154465101 Frigidaire Dishwasher Heating Element Support Bracket
10	807114001 Frigidaire Dishwasher Cover
11	807111601 Frigidaire Sump Cover Assembly and Filter
13	154246801 Frigidaire Dishwasher Primary Gasket
14	807185501 Frigidaire Dishwasher Housing
15	807048001 Frigidaire Dishwasher Check Valve
16	154246502 Frigidaire Dishwasher Bracket
24	5304518927 Frigidaire Dishwasher Lower Wash Spray Arm
24A	154335201 Frigidaire Dishwasher Lower Spray Arm Nut
29	154227811 Frigidaire Dishwasher Thermostat
30	154241101 Frigidaire Dishwasher Retainer
55	5304534830 Frigidaire Dishwasher Bracket
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60	A00126401 Frigidaire Dishwasher Drain Pump Assembly
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
70	807473201 Frigidaire Dishwasher Motor and Pump Assembly
