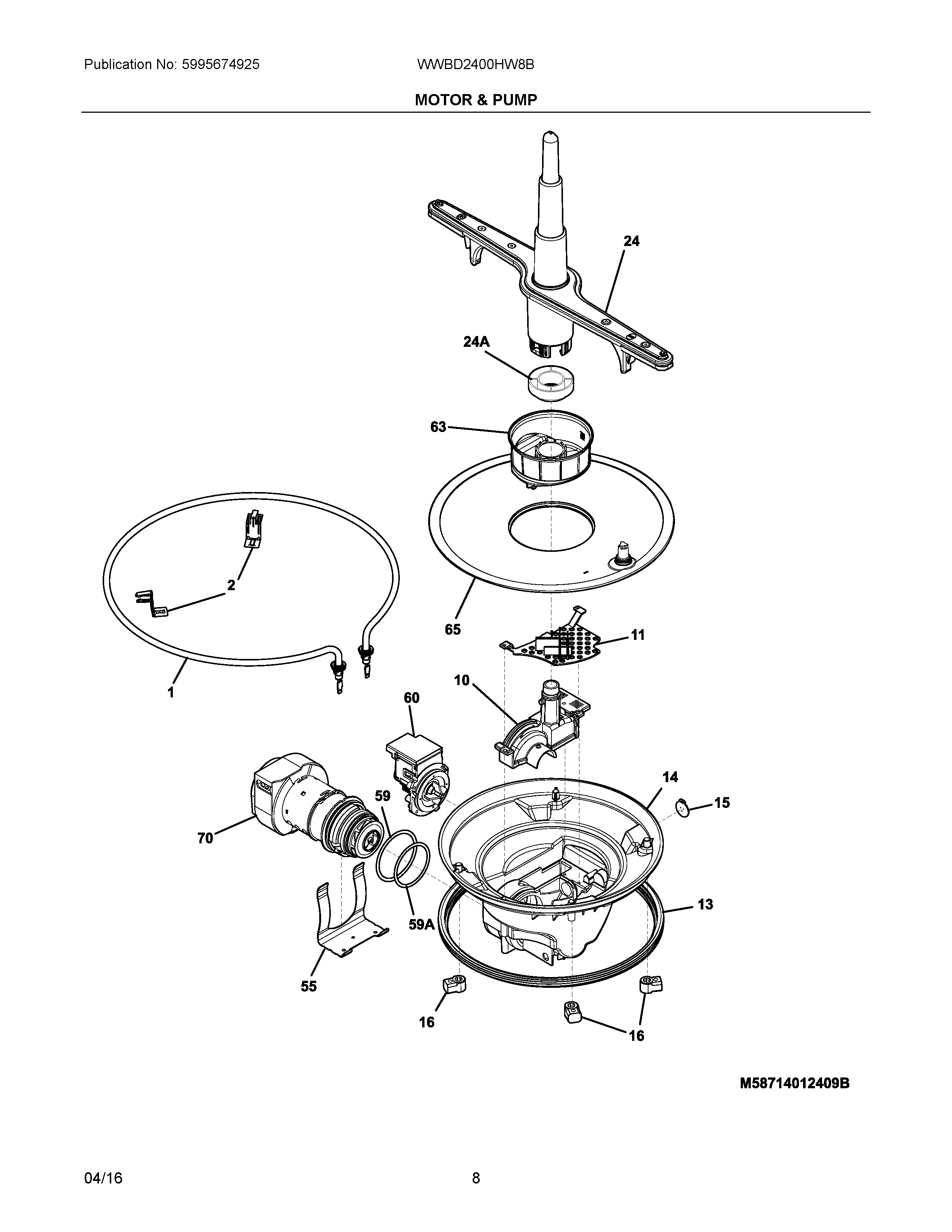

WWBD2400HW8B 05 – MOTOR & PUMP

WWBD2400HW8B 05 – MOTOR & PUMP

Written by

in

WWBD2400HW8B 05 – MOTOR & PUMP

Products

PositionProduct
NI154783101 Frigidaire Dishwasher Screw
NI154779601 Frigidaire Dishwasher Screw
NI154297701 Frigidaire Dishwasher Screw
NI154380601 Frigidaire Dishwasher Clamp Assembly
NIA154106202 Frigidaire Dishwasher Heater Nut
NIA154754901 Frigidaire Dishwasher Screw
NIA154741501 Frigidaire Dishwasher Screw
NIB154289801 Frigidaire Dishwasher Shield
1154825001 Frigidaire Dishwasher Round Heater Heating Element
2154465101 Frigidaire Dishwasher Heating Element Support Bracket
10807114001 Frigidaire Dishwasher Cover
11807111601 Frigidaire Sump Cover Assembly and Filter
13154246801 Frigidaire Dishwasher Primary Gasket
14807185501 Frigidaire Dishwasher Housing
15807048001 Frigidaire Dishwasher Check Valve
16154246502 Frigidaire Dishwasher Bracket
245304518927 Frigidaire Dishwasher Lower Wash Spray Arm
24A154335201 Frigidaire Dishwasher Lower Spray Arm Nut
29154227811 Frigidaire Dishwasher Thermostat
30154241101 Frigidaire Dishwasher Retainer
555304534830 Frigidaire Dishwasher Bracket
59A154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60A00126401 Frigidaire Dishwasher Drain Pump Assembly
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
70807473201 Frigidaire Dishwasher Motor and Pump Assembly
