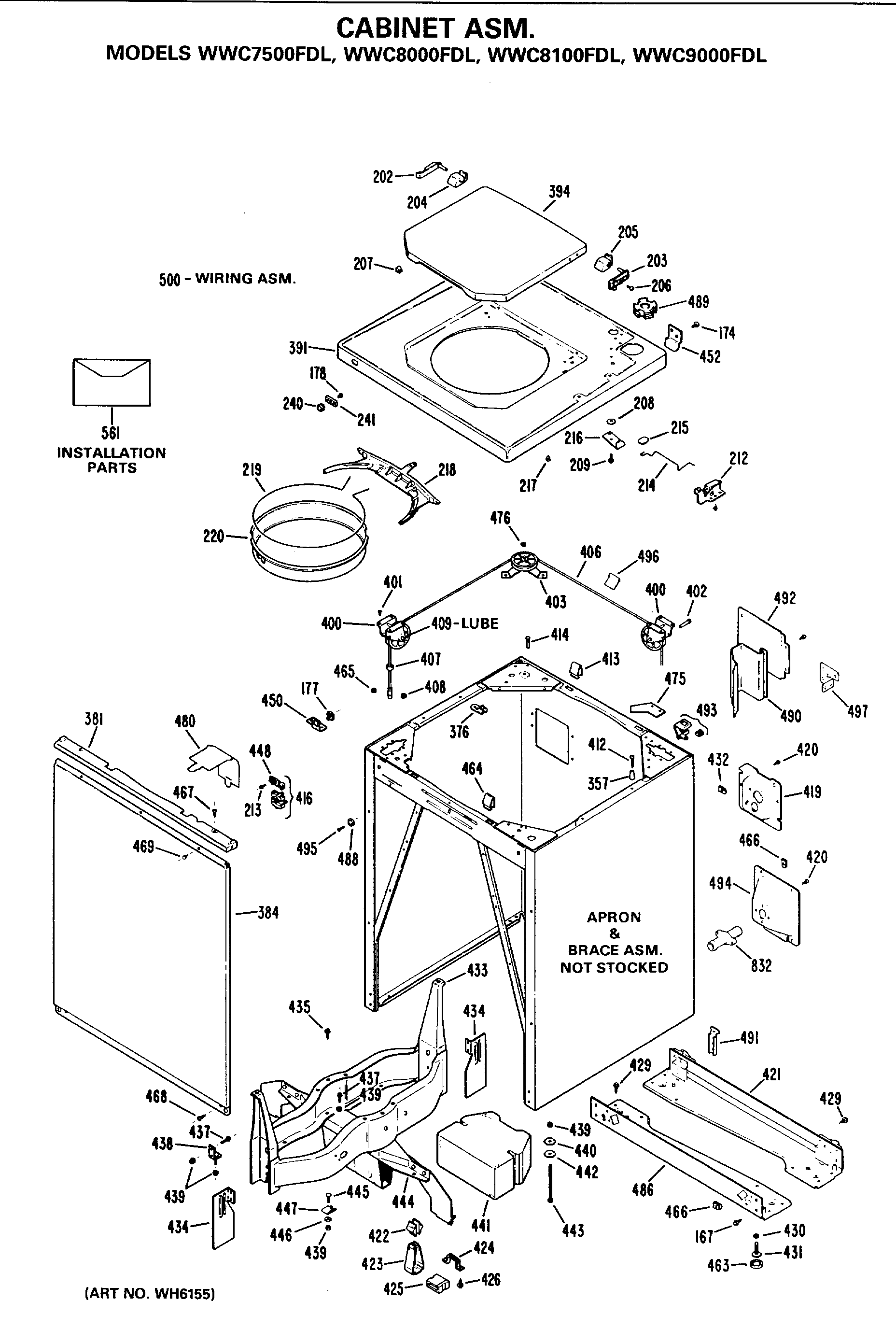

WWC7500FDL CABINET ASM.

WWC7500FDL CABINET ASM.

Written by

in

WWC7500FDL CABINET ASM.

Products

PositionProduct
167GEN WE02X0186
174GEN WH02X0934
177NUT CLIP
178GEN WH02X0939
202GEN WH01X2085
203GEN WH01X2222
204PAD-HINGE L.H.
205PAD-HINGE R.H.
206SCR 8-18 B RT 1/2 SS
207GEN WH01X1654
208GEN WH01X2088
209SCR 1/4-14 HX 3/4 S
212GEN WH12X0494
213WZ4X345D GE Screw Package 12 C92
214GEN WH01X2090
215GEN WH01X2089
216GEN WH16X0376
217BUMPER LID
218GEN WH16X0413
219GEN WH16X0370
220GEN WH08X0295
240WH1X2266 GE Button Plug
241WH1X2268 GE Retainer
357STOP-COVER
376GEN WH01X2568
381CAP FRONT PANEL ASM AD
381CAP FRONT PANEL ASM WH
381CAP FRONT PANEL ASM HA
384FRONT PANEL ASM AD
384FRONT PANEL ASM WH
384FRONT PANEL ASM HA
391GEN WH44X1100
391GEN WH44X1101
391GEN WH44X1099
394GEN WH44X1107
394GEN WH44X1105
394GEN WH44X1106
400GEN WH07X0040
401GEN WH02X0940
402GEN WH01X1633
403GEN WH07X0041
406CABLE STD CAPACITY
407GEN WH01X2081
407GEN WH01X2082
408RETAINER SEAT
409GEN WL39X0003
413CLIP-COVER
414SCR 12-14 B HX 3/4 S
416GEN WH12X0629
419GEN WH16X0483
420GEN WH02X0893
421GEN WH46X0255
422PAD FRICTION
423GEN WH01X1951
424GEN WH01X1862
425GEN WH01X1953
426SCR 14-10 A HX 3/4 S
429GEN WH02X0795
430GEN WZ07X0040
431GEN WH01X0209
432GEN WL02X0071
433GEN WH17X0087
434DAMPING FIN STD. CAP.
435GEN WH02X1121
437GEN WZ02X0514
438GEN WH16X0405
439NUT
440GEN WH02X0810
441GEN WH01X2056
442GEN WH02X0811
443SCR 1/4-20 HX 5 S
444GEN WH16X0361
445SCR 1/4-20 M RD 11/16 S
446GEN WE02X0279
447GEN WH02X0801
450GEN WH16X0481
452GEN WH16X0482
463WH1X484 GE Rubber Foot Pad
464CLIP COVER
465RING E
466GEN WH02X1110
467GEN BUY-LOCAL
468GEN WH02X1112
476RING-E
480SCR 6-20 X 5/16 HEXW S
486GEN WH46X0256
488GEN WH01X2564
489GEN WH01X2572
490GEN WH01X2565
491GEN WH02X1109
492GEN WH01X2567
493GEN WH16X0480
494GEN WH16X0479
495GEN WR01X1569
496GEN WH01X2570
497GEN WH01X2569
500GEN W
