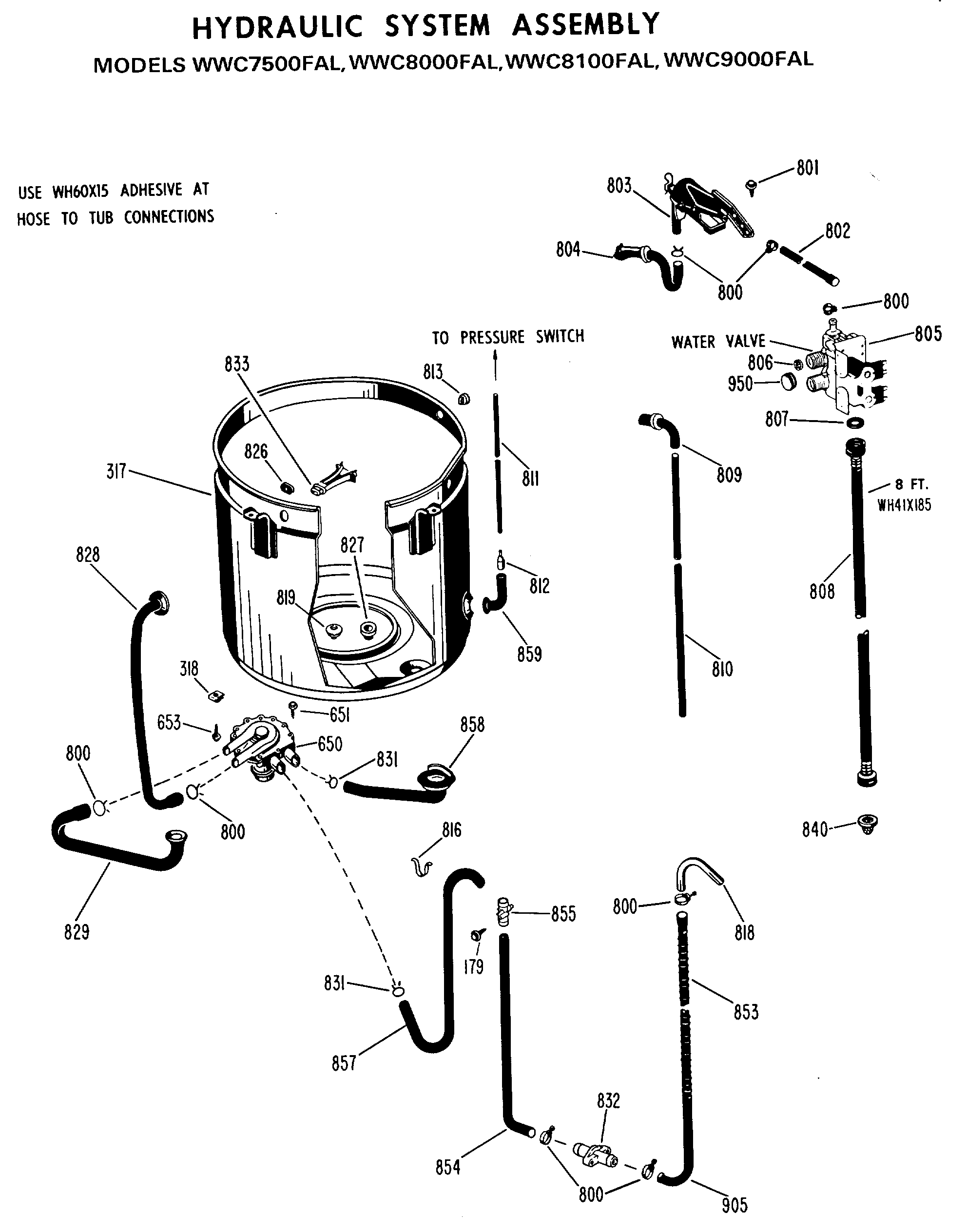

WWC8100FAL HYDRAULIC SYSTEM ASSEMBLY

Products

Position	Product
179	SCREW 10-16 X 1/2" HEX
317	TUB ASM
318	GEN WL02X0071
650	GEN WH23X0042
651	GEN WH02X0888
653	SCR 10-16 AB HXW 1 3/8 S
801	GEN WD02X5063
802	GEN WH41X0301
803	GEN WH41X0132
804	GEN WH41X0170
805	WH13X81 GE Washer Water Inlet Valve
806	GEN WH01X1400
807	WH2X42D GE Washer Pack of 12
808	WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
809	GEN WH08X0253
810	GEN WH01X1807
811	GEN WH41X0299
812	GEN WH01X1584
813	GEN WH01X1980
816	GEN WH16X0372
818	NOZZLE-DRAIN
827	GEN WH01X1966
828	GEN WH41X0296
829	HOSE RECIRC INLET
831	WH1X2036 GE UNIX Clamp
832	GEN WH41X0298
833	GEN WH41X0302
840	GEN WH01X2267
853	WH41X10053 GE Hose & Spring
854	GEN WH41X0304
855	GEN WH41X0303
857	GEN WH41X0194
858	GEN WH41X0091
859	GEN WH41X0130
950	CAP WATER VALVE
