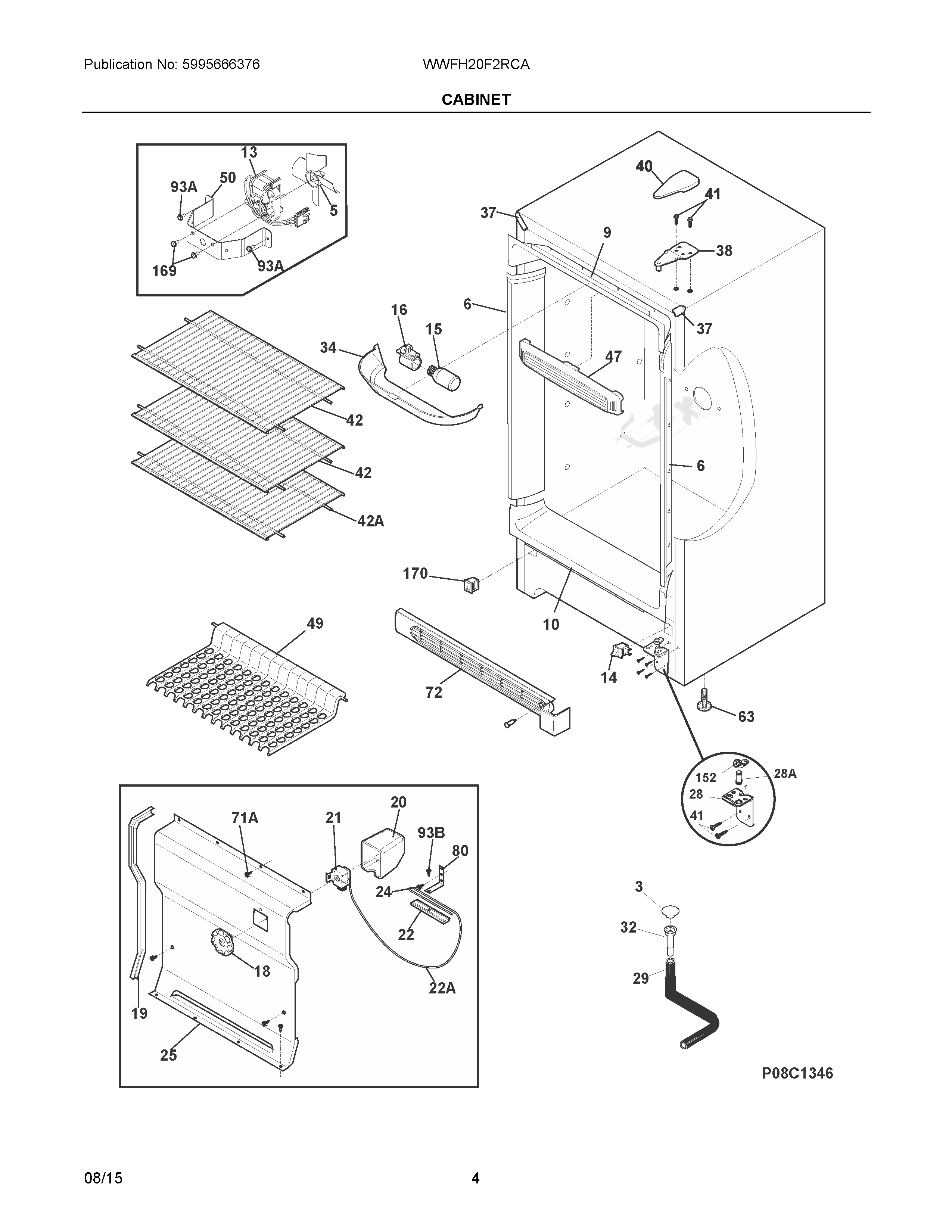

WWFH20F2RCA 03 – CABINET

WWFH20F2RCA 03 – CABINET

Written by

in

WWFH20F2RCA 03 – CABINET

Products

Position	Product
NI	WCI 5303313703
NI	216502400 Frigidaire Refrigerator Grommet Unit
NIA	Bracket,LH leg levelor
NIB	Bracket,RH leg levelor
NI	5304498525 Frigidaire Service Data Sheet
NI	297001704 Frigidaire Refrigerator Insulation
NI	WCI 5304503182
NI	VALVE, BREATHER, BLACK
NI	WCI 5304503055
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5304513294 Frigidaire Refrigerator Freezer Fan Blade
6	297435605 Frigidaire Refrigerator Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	297403902 Frigidaire Refrigerator Breaker
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22A	TUBE
22	CLAMP, CAP TUBE, COLD CONTROL
24	Screw,type A ,10-24 x 3/8
25	WCI 297099250
26	297415900 Frigidaire Door Closer Ramp
28	297416301 Frigidaire Refrigerator Hinge
28A	297438300 Frigidaire Refrigerator Pin
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273905 Frigidaire Cabinet Corner Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	COVER-UPPER HINGE, BLACK
41	240578902 Frigidaire Screw Mounting Hinge
42	WCI 297441905
42A	SHELF
47	297192903 Frigidaire Refrigerator Baffle
49	216937701 Frigidaire Refrigerator Trivet
50	216394050 Frigidaire Refrigerator Bracket
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	GRILLE/KICKPLATE, W/SIG LIGHT, BLACK
73	5304495394 Frigidaire Refrigerator Light Signal
80	WCI 06594601
93	216858001 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169	216912401 Frigidaire Refrigerator Screw
