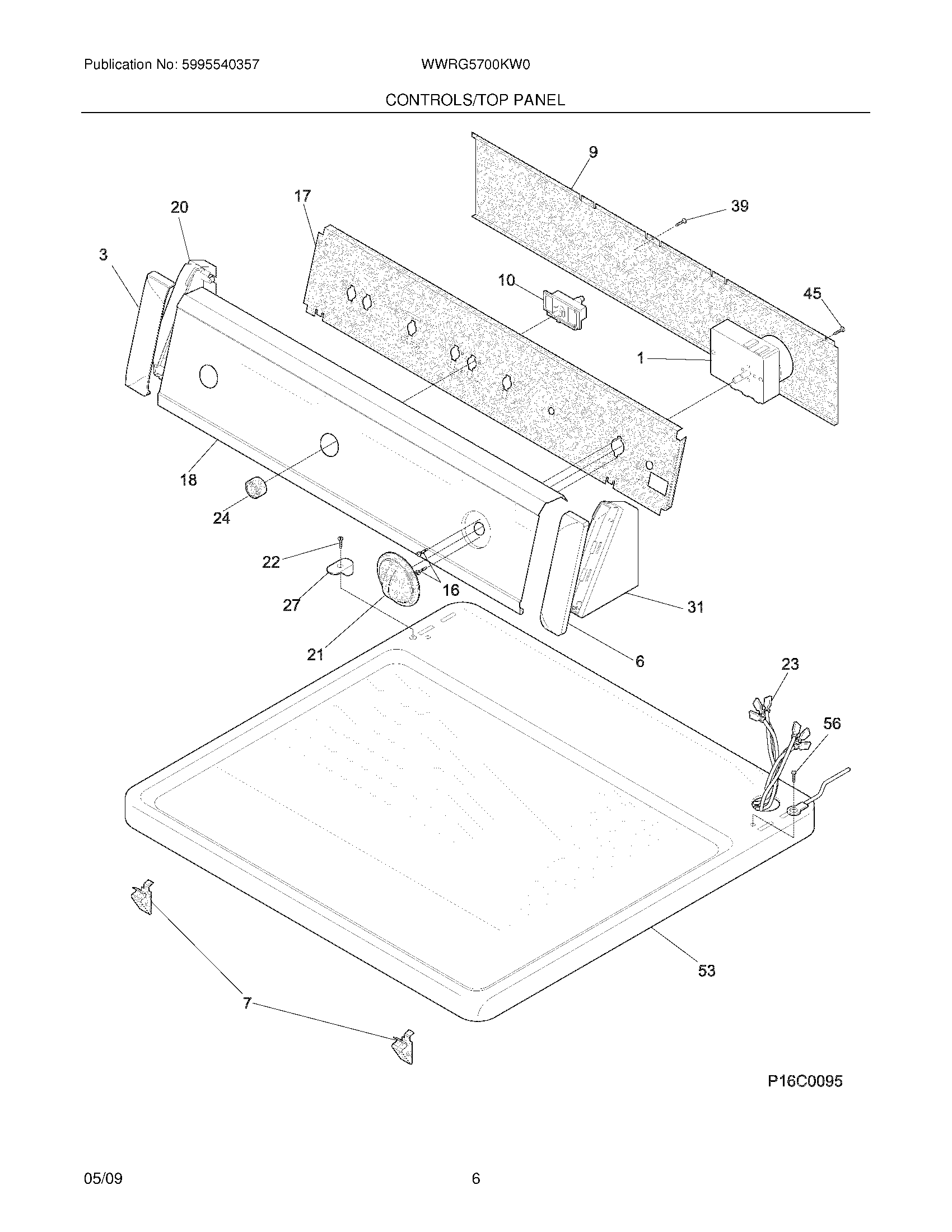

WWRG5700KW0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	TIMER
3	COVER-CAP-LH-WHITE
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	WCI 134088700
10	131469000 Frigidaire Switch-Push/Start P1
16	218359202 Frigidaire Refrigerator Screw
17	WCI 134487900
18	WCI 137152700
20	WCI 131122714
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266330
23	WCI 134004700
24	WCI 131111501
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 134086802
56	131243800 Frigidaire Screw
