WWS233RBW0 05 – CONTROL PANEL – Aparts

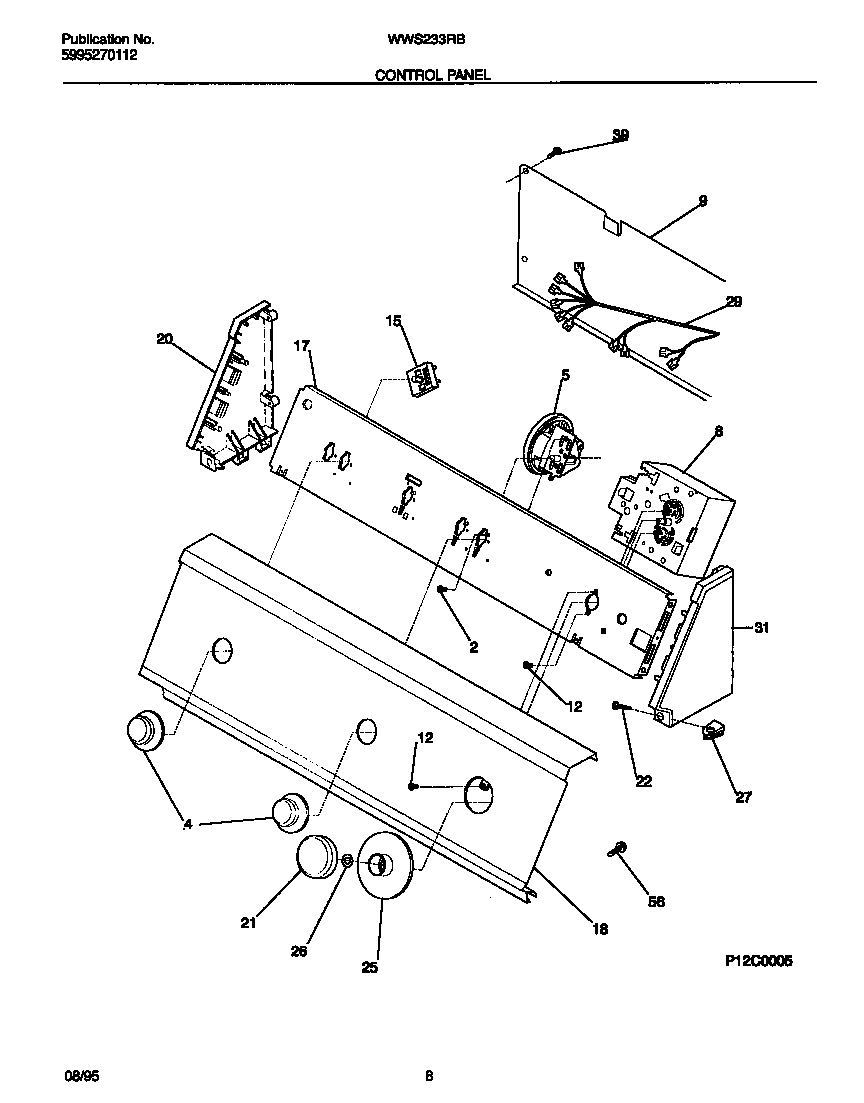

WWS233RBW0 05 – CONTROL PANEL

Products

Position	Product
2	131168200 Frigidaire Dryer Screw
4	WCI 131118602
5	WCI 131258500
8	WCI 131237800
9	COVER-BACK
12	SCREW (2)
15	WCI 131047000
17	WCI 131297306
18	WCI 131416000
20	WCI 5303291344
21	KNOB-TIMER
22	WCI 131266300
25	WCI 131118502
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131165600
31	WCI 5303291352
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
