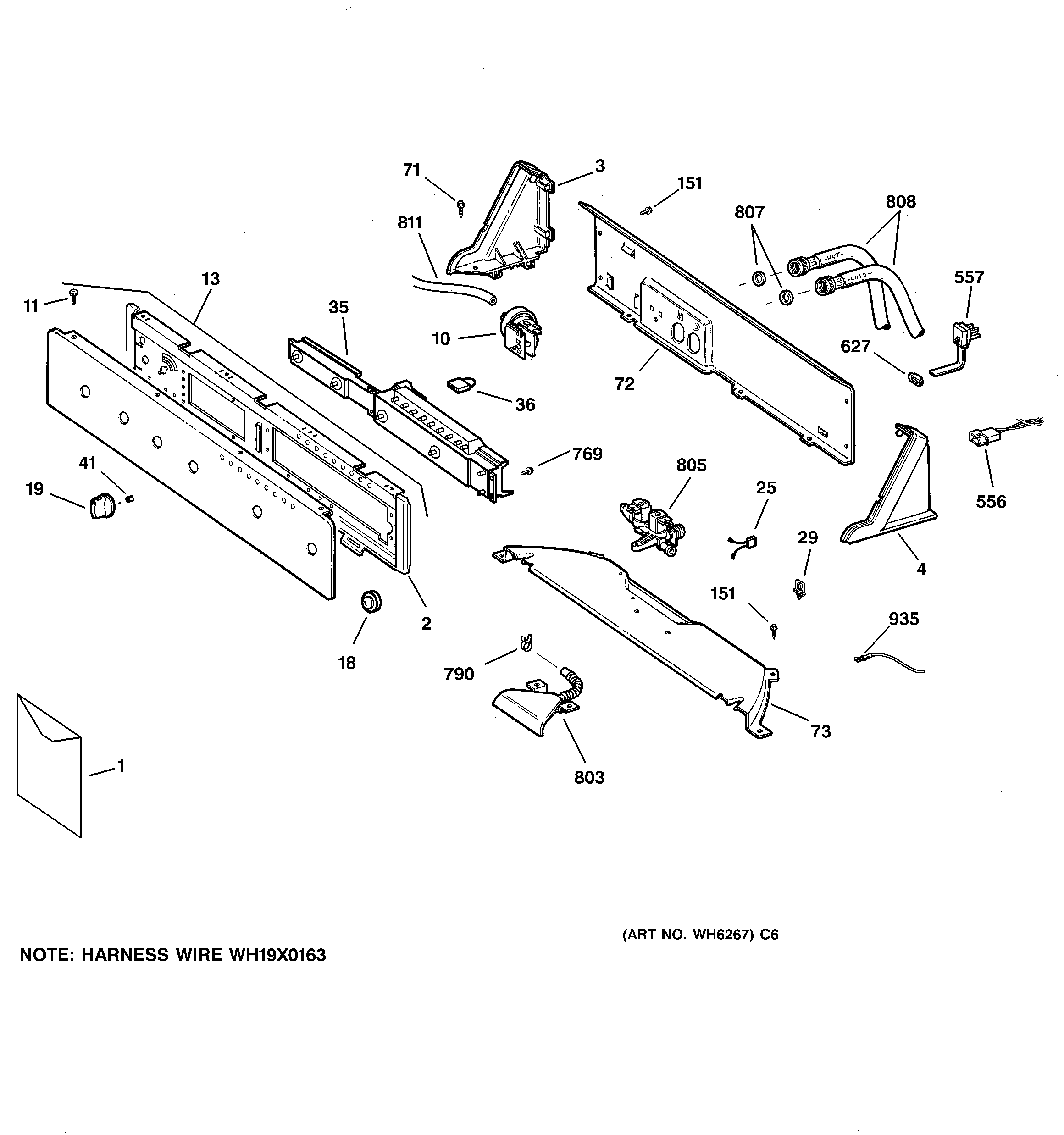

WWSE5200B0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 49-90087
1MINI MANUAL
1GEN 31-15441
2GEN WH46X10048
3GEN WH42X2397
4GEN WH42X2398
10WH12X10093 GE Press Switch
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10304
18WH01X10088 GE Start/stop Switch Button
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
25GEN WH19X10014
29GEN WH02X10054
35GEN WH12X10175
36CONNECTOR MODEL SELECT
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10035
73GEN WH46X10047
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10025
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805GEN WH13X10006
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
