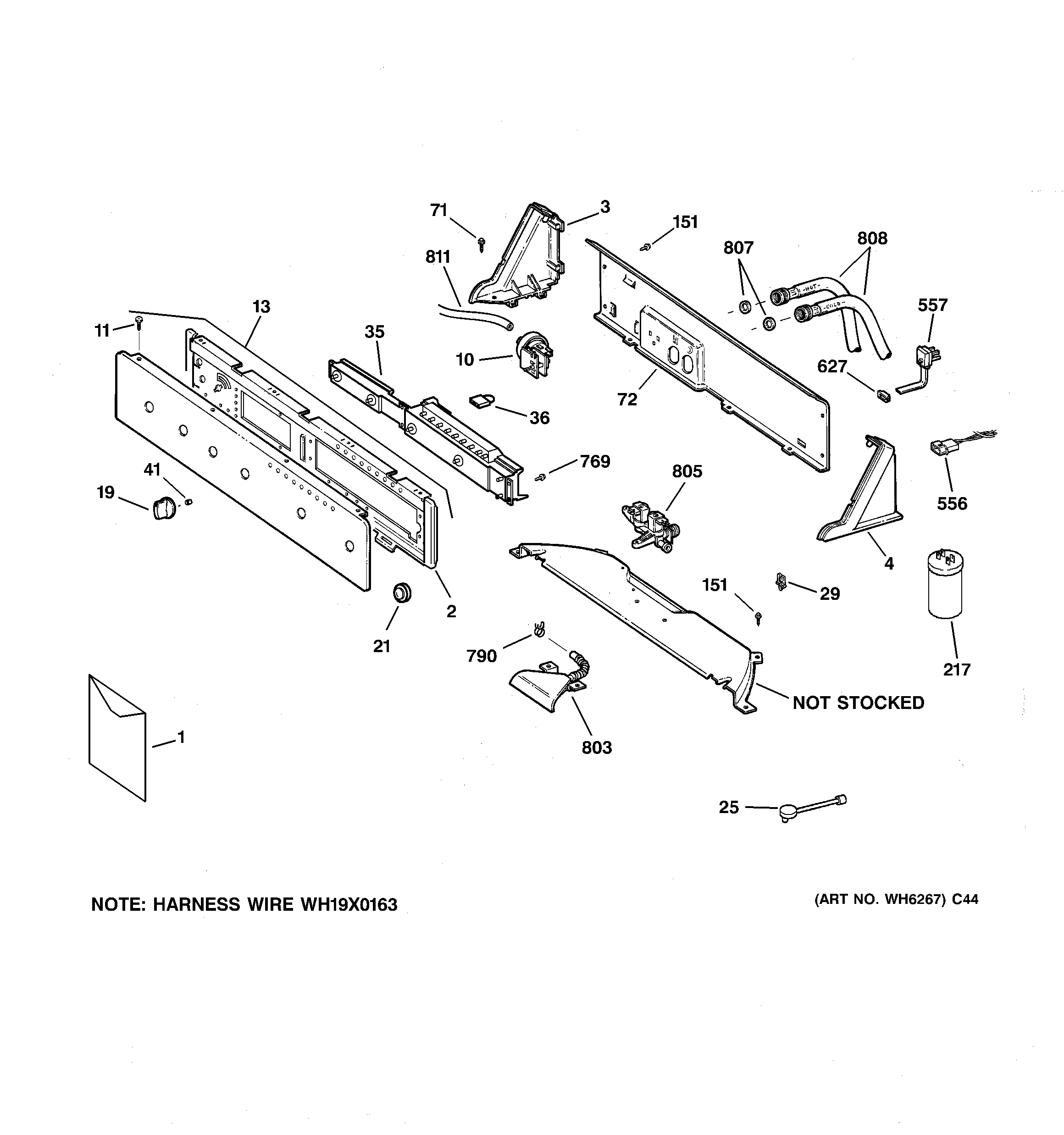

WWSE5240D1CC CONTROLS & BACKSPLASH

WWSE5240D1CC CONTROLS & BACKSPLASH

Written by

in

WWSE5240D1CC CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 49-90165
1GEN 31-15533
1GEN 31-15441
2GEN WH46X10096
3GEN WH42X10311
4GEN WH42X10312
10WH12X10093 GE Press Switch
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10481
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
21GEN WH01X10073
25GEN WH12X10268
29GEN WH02X10054
35GEN WH12X10271
36HARNESS
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10083
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
217WH12X10462 GE Washer Capacitor
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803GEN WH41X10078
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
