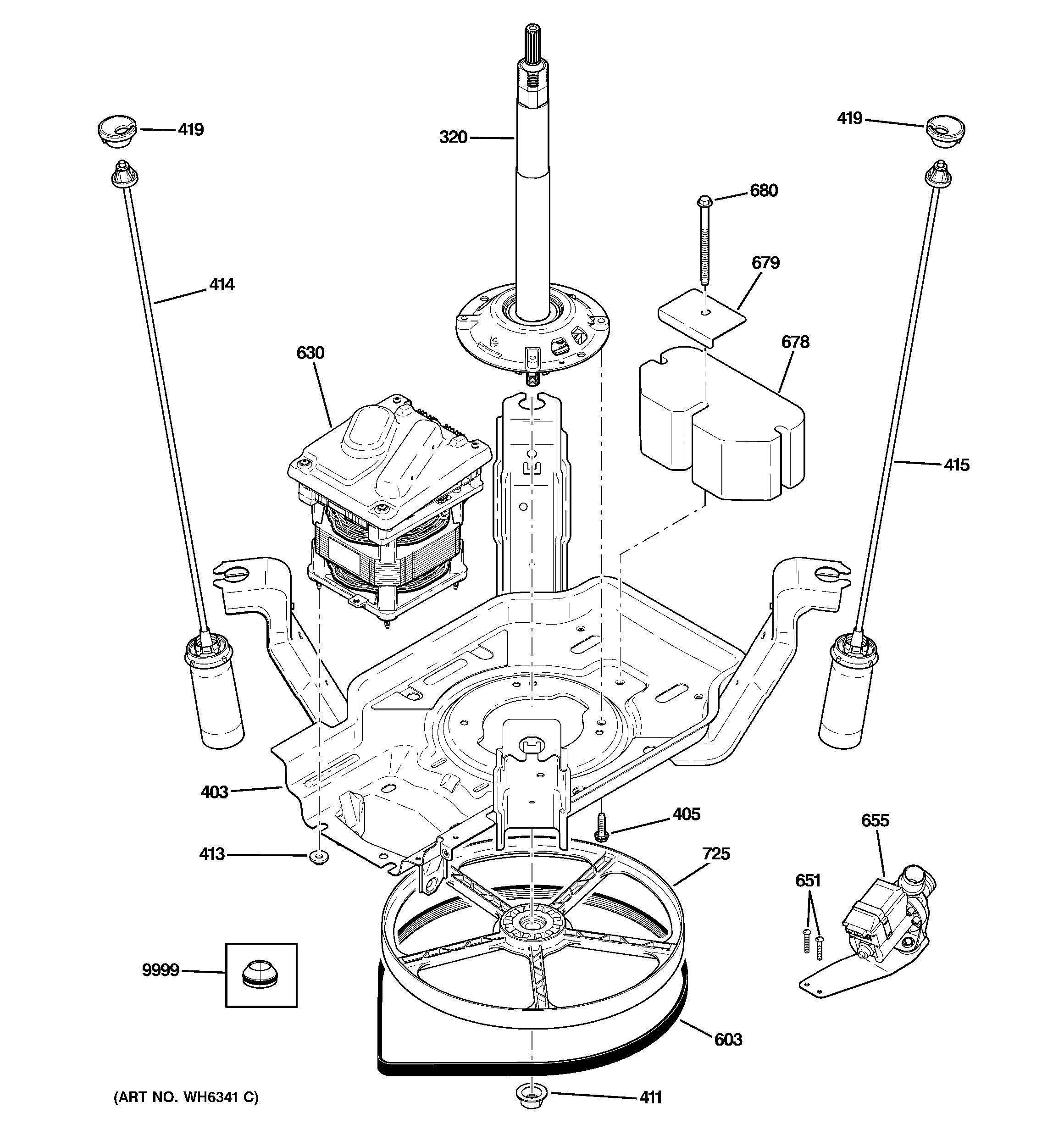

WWSE5240DCWW SUSPENSION, PUMP & DRIVE COMPONENTS

WWSE5240DCWW SUSPENSION, PUMP & DRIVE COMPONENTS

Written by

in

WWSE5240DCWW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

PositionProduct
320SHAFT & MODE SHIFTER ASM
320GEN WH38X10002
403GEN WH17X10014
403GEN WH17X10003
405WH2X1201 GE 1/4-20 Screw
411WH2X1203 GE Pulley Nut
413GEN WH02X10233
413GEN WH02X1204
414WH16X10057 GE Washer Rod & Spring Assembly Green
415ROD/SPRING BLK
415WH16X543 GE Dryer Suspension Rod and Spring Yellow
419WH01X10001 GE Washer Support Socket Tub Suspension Rod
603WH1X2026 GE Washer Drive Belt
603WH01X10302 GE Washer 6 Rib Belt
630WH20X10019 GE Motor 2-Speed Clutchless
630GEN WH20X10030
651WH02X10123 GE Screw 1/4-20 TPT
655WH23X10030 GE Washer Drain Pump
678GEN WH01X10303
679GEN WH01X10304
680GEN WH02X10235
725WH07X10019 GE Drive Pulley
725GEN WH07X0126
9999WX05X20641 GE Tool Service Belt Kit
