WWSR3090T2WW SUSPENSION, PUMP & DRIVE COMPONENTS – Aparts

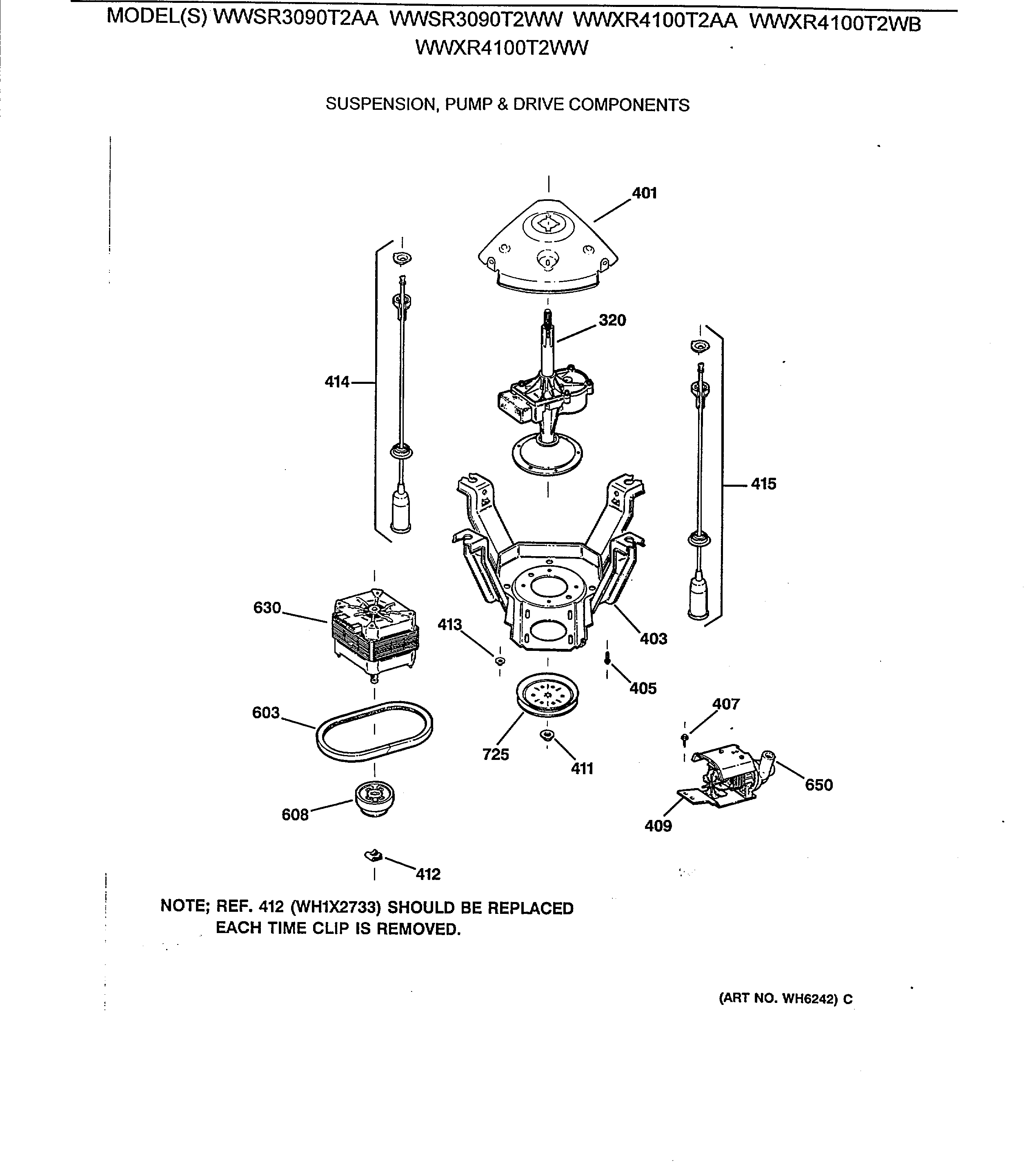

WWSR3090T2WW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

Position	Product
320	GEN WH38X0055
401	WH45X10046 GE Tub Shield
403	GEN WH17X0096
405	WH2X1201 GE 1/4-20 Screw
407	GEN WH02X1202
409	GEN WH16X0516
411	WH2X1203 GE Pulley Nut
412	GEN WH01X2733
413	GEN WH02X1204
414	GEN WH16X0517
415	GEN WH16X0519
603	WH1X2026 GE Washer Drive Belt
608	GEN WH05X0253
630	WH49X10035 GE Washer Drive Motor Kit
650	WH23X10030 GE Washer Drain Pump
725	GEN WH07X0126
