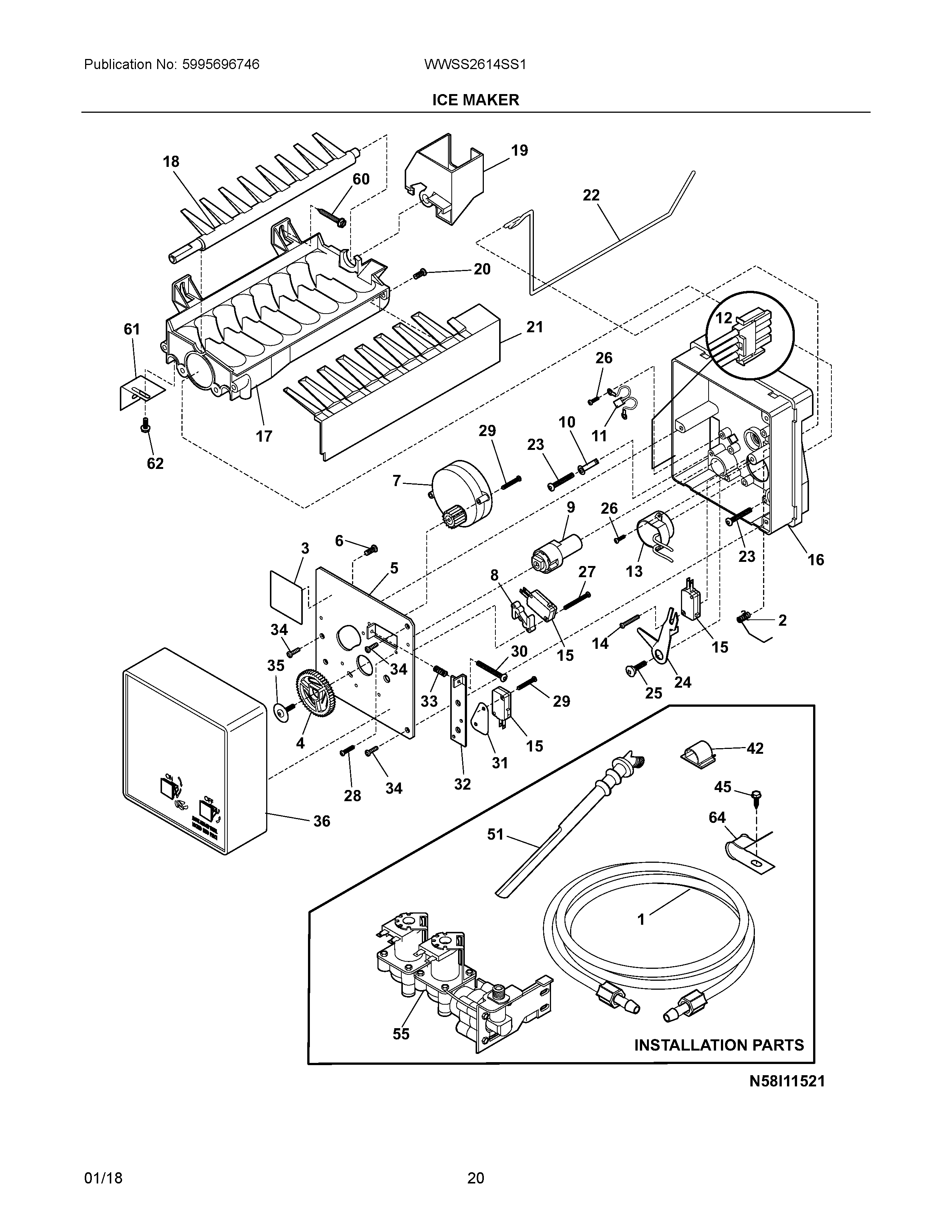

WWSS2614SS1 10 – ICE MAKER

WWSS2614SS1 10 – ICE MAKER

Written by

in

WWSS2614SS1 10 – ICE MAKER

Products

PositionProduct
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIAWCI 5304456688
NI5304456693 Frigidaire Refrigerator Nut
NI5304456692 Frigidaire Refrigerator Washer
NIA5304456690 Frigidaire LABEL
NID240561701 Frigidaire Refrigerator Seal
NIC241850615 Frigidaire Ice Maker Fill Tube Assembly
NI5304456689 Frigidaire Refrigerator Washer
NIA5304445223 Frigidaire SPRING BEAM
NIA218976419 Frigidaire Refrigerator Tube
NIB218976420 Frigidaire Refrigerator Tube
NIC240542901 Frigidaire Water Valve Cap
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIAWCI 5304455843
1218976409 Frigidaire Refrigerator Water Tube
2WCI 5304420650
35304456657 Frigidaire Ice Maker Label
45304469403 Frigidaire Gear
55304456659 Frigidaire Refrigerator Plate-Mounting
6WCI 5304456691
7241798231 Frigidaire Refrigerator Ice Maker Assembly
8WCI 5304456661
9WCI 5304456662
11WCI 5304456663
125304456664 Frigidaire Refrigerator Wiring Harness
135304456665 Frigidaire Refrigerator Thermostat
14WCI 5304456666
155304456667 Frigidaire Refrigerator Micro Switch
165304456668 Frigidaire Refrigerator Support
18WCI 5304456670
205304455677 Frigidaire Screw
22WCI 5304456673
235304456674 Frigidaire Screw
245304456675 Frigidaire Refrigerator Lever Arm
25WCI 5304456676
26WCI 5304420654
27WCI 5304456677
285304456660 Frigidaire Screw
295304456678 Frigidaire Screw
305304456679 Frigidaire Timing Adjustment Screw
31WCI 5304456680
325304456681 Frigidaire Plate-VALVE SWITCH
33WCI 5304456682
34241679901 Frigidaire Refrigerator Screw
355304456684 Frigidaire Screw
36WCI 5304456685
425303001199 Frigidaire Refrigerator Wiring Harness Clamp
45241500303 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62WCI 5304456687
645304455846 Frigidaire Refrigerator Clamp
