WWTR1802KW0 09 – SYSTEM

WWTR1802KW0 09 – SYSTEM

Written by

in

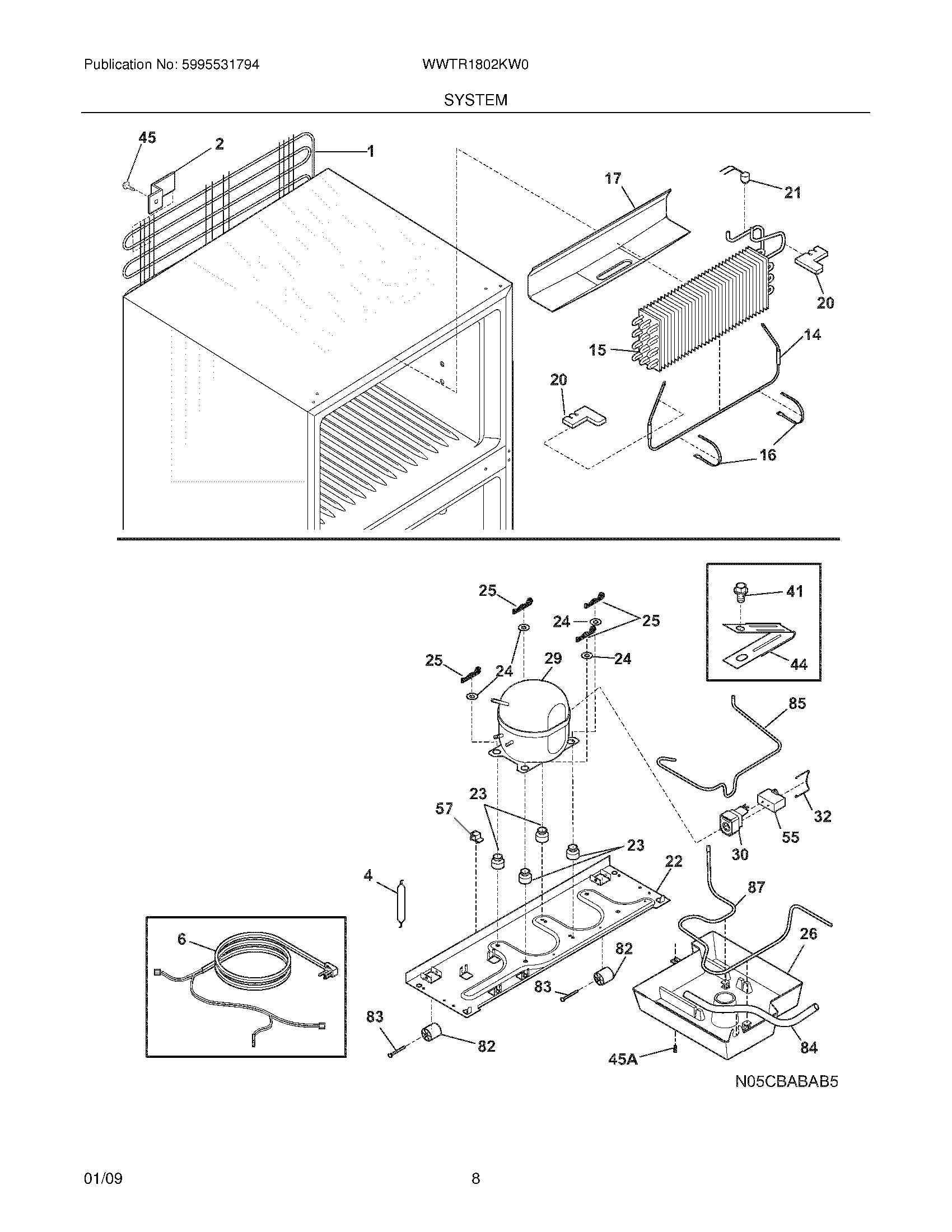

WWTR1802KW0 09 – SYSTEM

Products

Position	Product
NI	WCI 5303918234
NI	218252201 Frigidaire Refrigerator Screw
NI	240388701 Frigidaire Refrigerator Wiring Harness
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	5304455650 Frigidaire Refrigerator Screw
NI	SPACER-COND TUBE,BLACK
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	WCI 5304406721
1	WCI 241861903
2	WCI 241658801
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 241949801
14	240356221 Frigidaire Refrigerator Defrost Heater
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
20	241551902 Frigidaire Refrigerator Insulation Block
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665606 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	WCI 241949701
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	241707715 Frigidaire Refrigerator Starter-Ptc
32	241715901 Frigidaire Strap-Cover
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45A	240359403 Frigidaire Refrigerator Fan Shroud Screw
45	241500305 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	WCI 241949901
85	WCI 241844601
87	WCI 241949601
