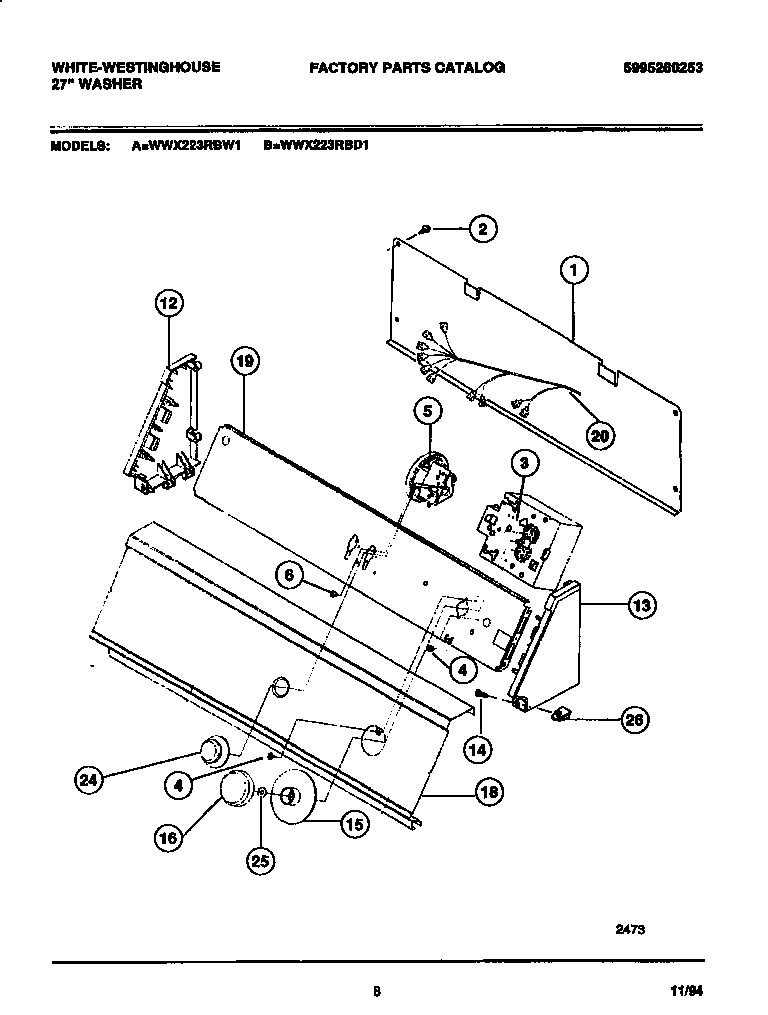

WWX223RBD1 05 – CONSOLE & CONTROLS

WWX223RBD1 05 – CONSOLE & CONTROLS

Written by

in

WWX223RBD1 05 – CONSOLE & CONTROLS

Products

PositionProduct
*42242SCREW
*42241131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 31237700
4SCREW (2)
5WCI 131047500
6131168200 Frigidaire Dryer Screw
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 131118502
16KNOB-TIMER
18WCI 131239800
19BRACKET CONTROLS
20WCI 131166000
24WCI 131118602
25Spacer,washer ,timer shaft
26CLIP-CONSOLE MTG
