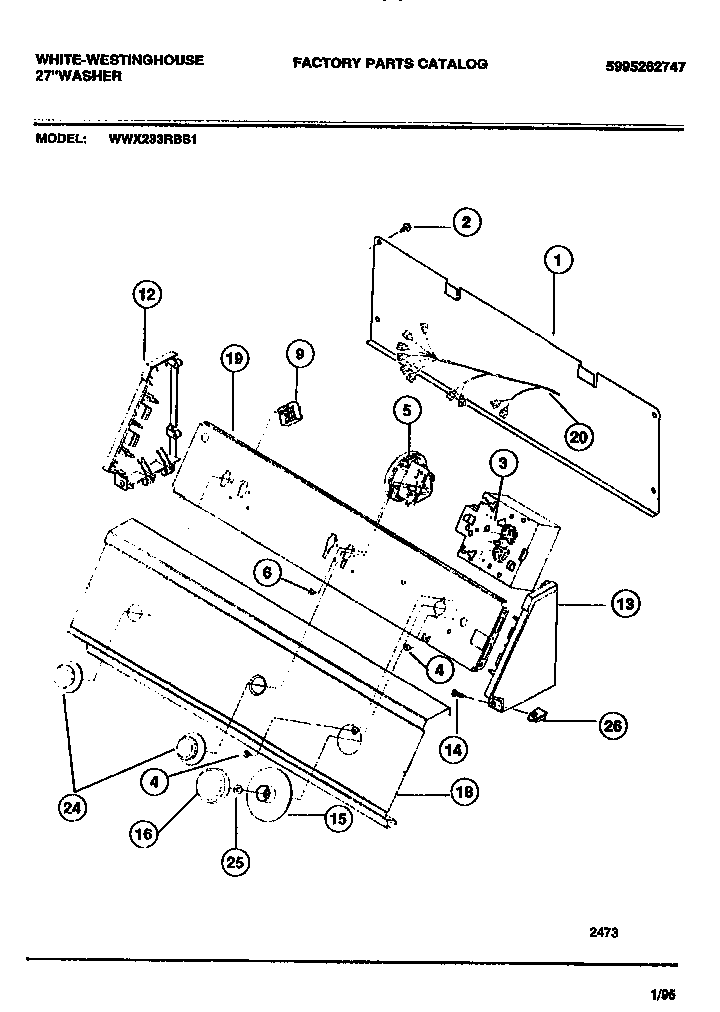

WWX233RBS1 05 – CONSOLE & CONTROLS

WWX233RBS1 05 – CONSOLE & CONTROLS

Written by

in

WWX233RBS1 05 – CONSOLE & CONTROLS

Products

PositionProduct
*66002131243800 Frigidaire Screw
*66003SCREW
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 131237800
4SCREW (2)
5WCI 131047500
6131168200 Frigidaire Dryer Screw
9WCI 131047000
12WCI 5303291343
13WCI 5303291351
14WCI 5303297854
15DIAL-TIMER, WHITE
16KNOB – TIMER
18WCI 131240100
19BRACKET CONTROLS
20WCI 131165600
24WCI 131118603
25Spacer,washer ,timer shaft
26CLIP-CONSOLE MTG
