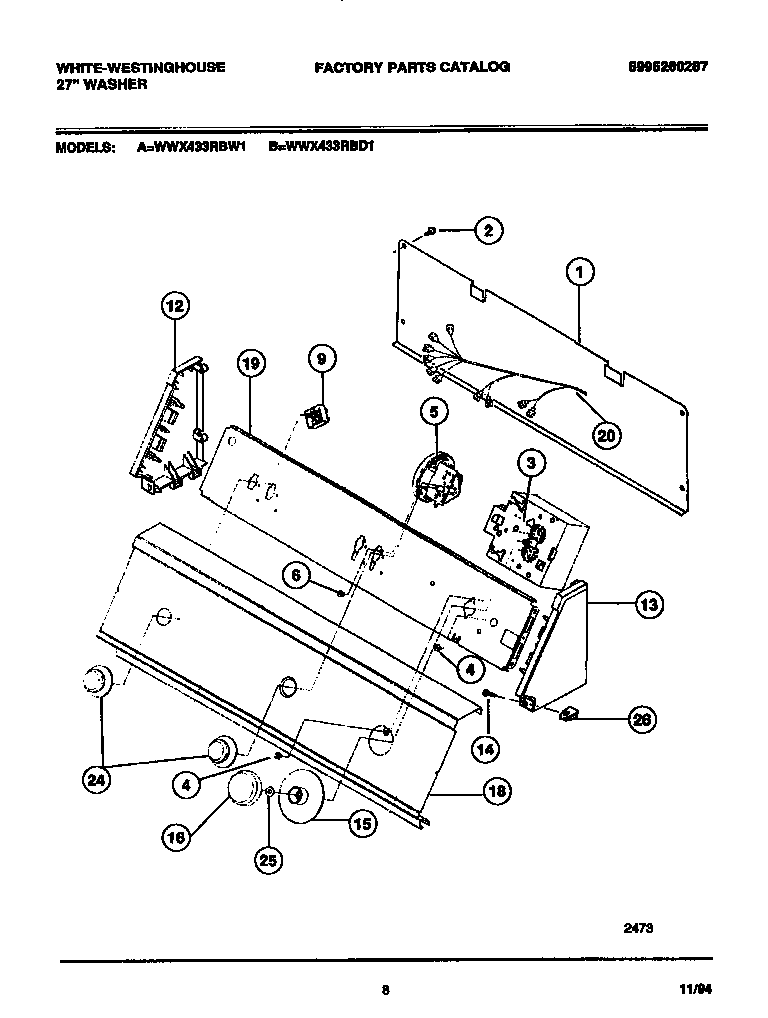

WWX433RBW1 05 – CONSOLE & CONTROLS

WWX433RBW1 05 – CONSOLE & CONTROLS

Written by

in

WWX433RBW1 05 – CONSOLE & CONTROLS

Products

PositionProduct
*35921131243800 Frigidaire Screw
*35922SCREW
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 131238000
4SCREW (2)
5WCI 1^31047500
6131168200 Frigidaire Dryer Screw
9WCI 131047000
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 131118502
16KNOB-TIMER
18WCI 131240400
19BRACKET CONTROLS
20WCI 131166100
24WCI 131118602
25Spacer,washer ,timer shaft
26CLIP-CONSOLE MTG
